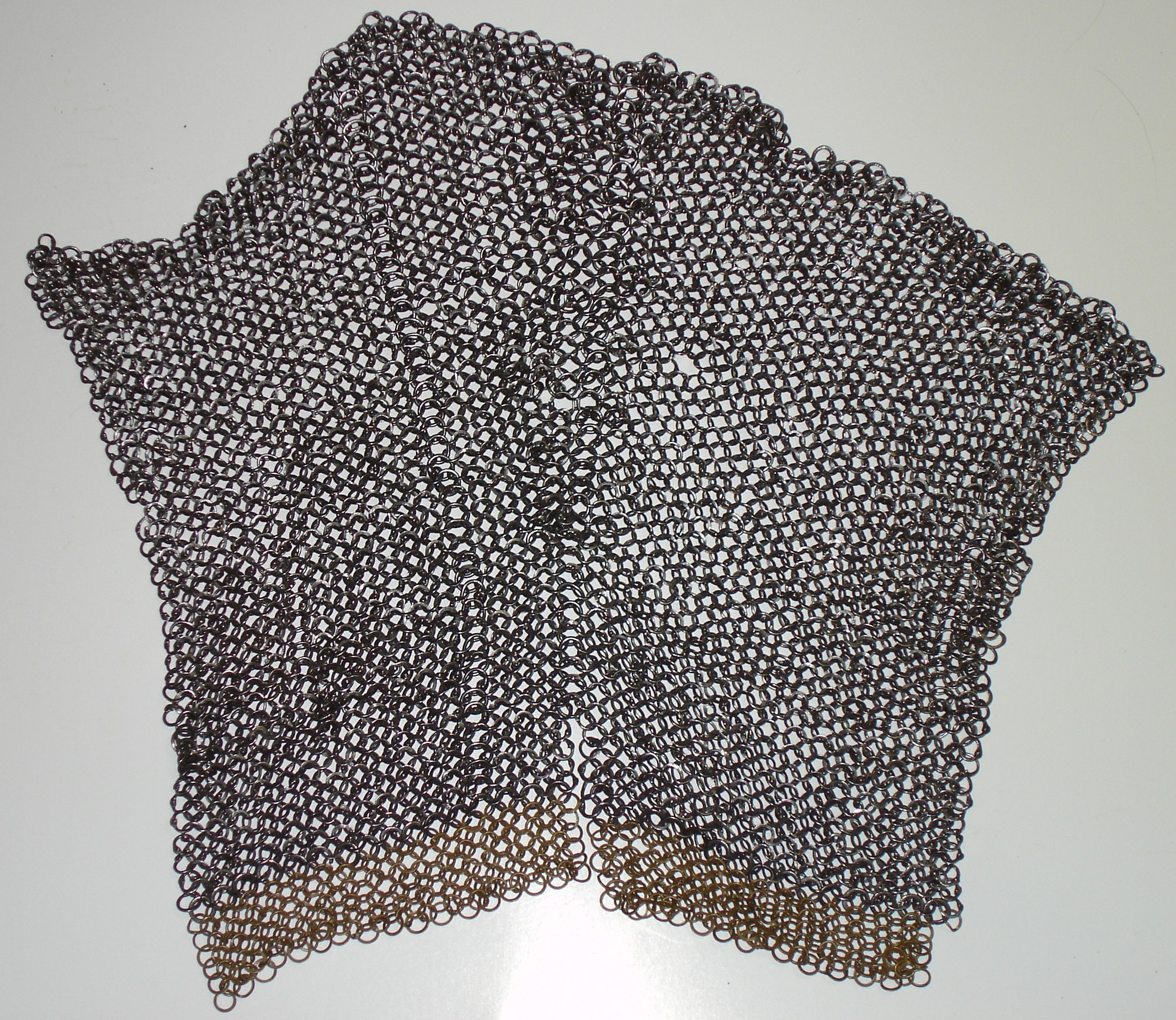

Mail Voider 16th century

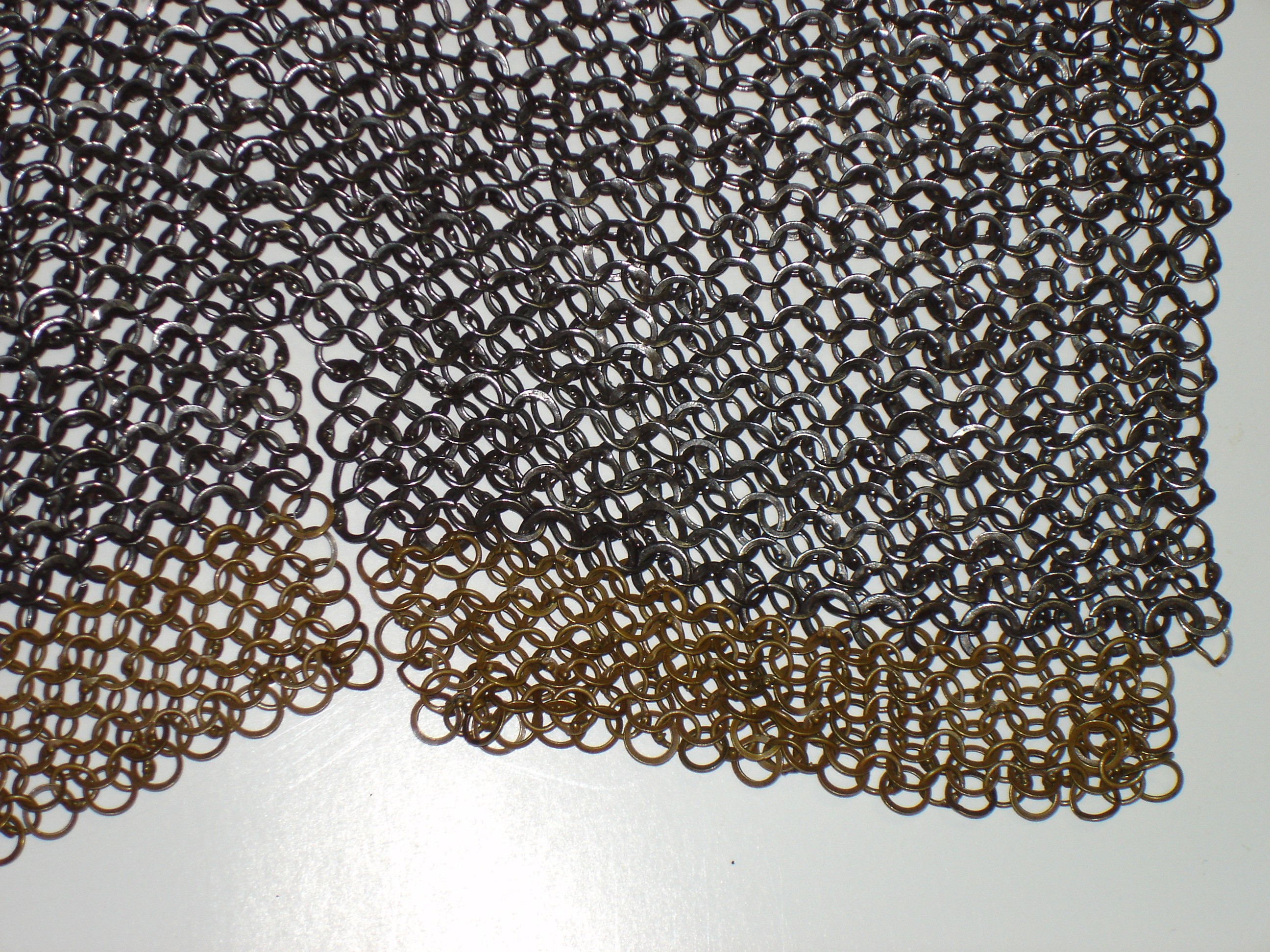

For the right arm. Rings of somewhat flattened form. Rings averaging app. 7 mm outside diameter. Overlap in the form described as pent roof on both sides. Wedge rivets. Tapered with expansion under the arm to accommodate the shoulder. Wider across the back. labeled as German. The pent roof shape of the overlap is associated with German manufacture. Small brass borders of alternating solid and riveted rings eleven rows wide (6 solid, 5 riveted.). The solid rings flat, the riveted rings of round section. Wedge rivets. Border is secured by a line of flattened butted rings indicating that it was almost certainly added after the working life of the piece. App. 9 in. wide at the cuff, 9 in. long at the edges, 10 in. long at the center and 15 in. wide at the base.

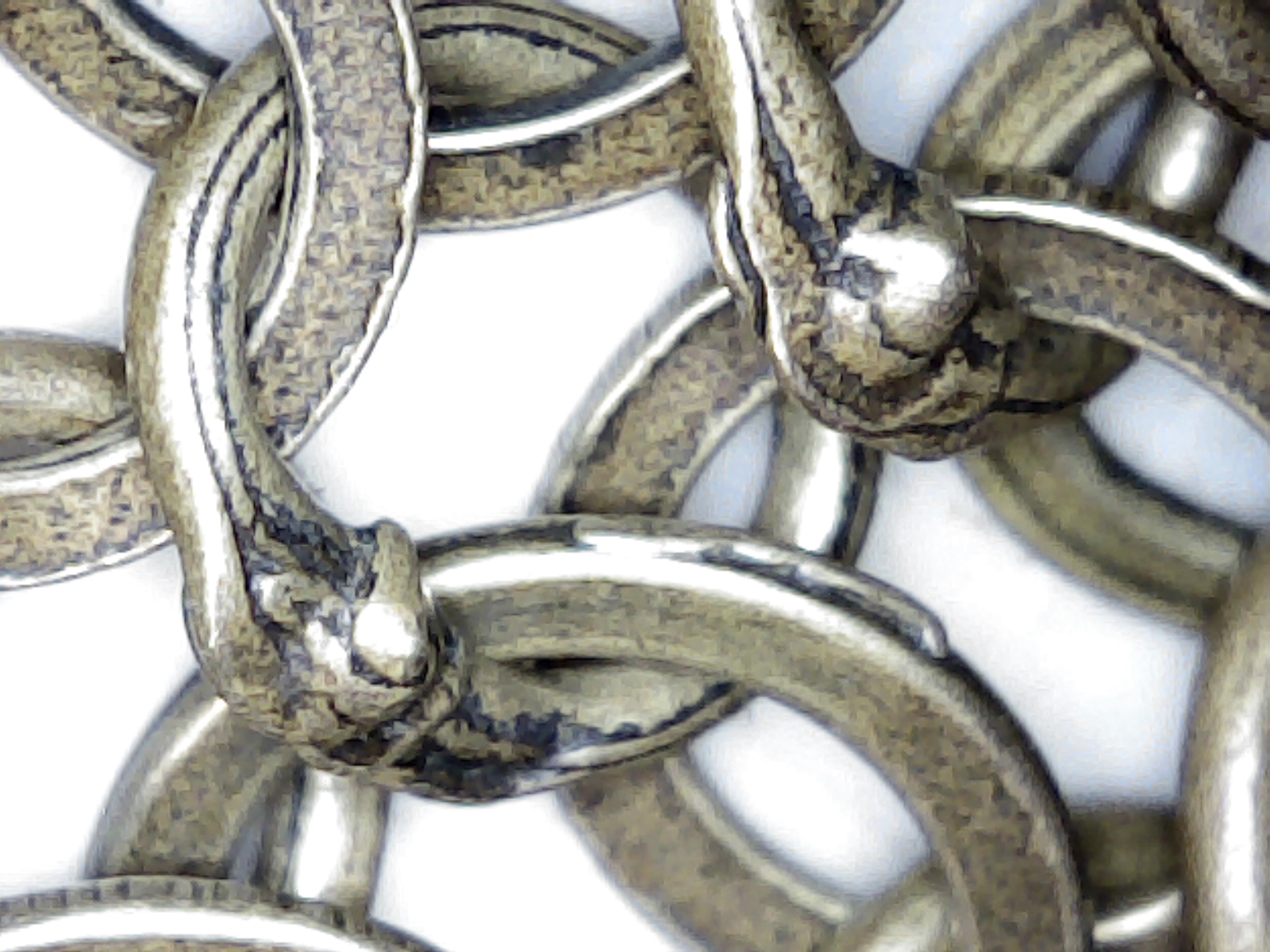

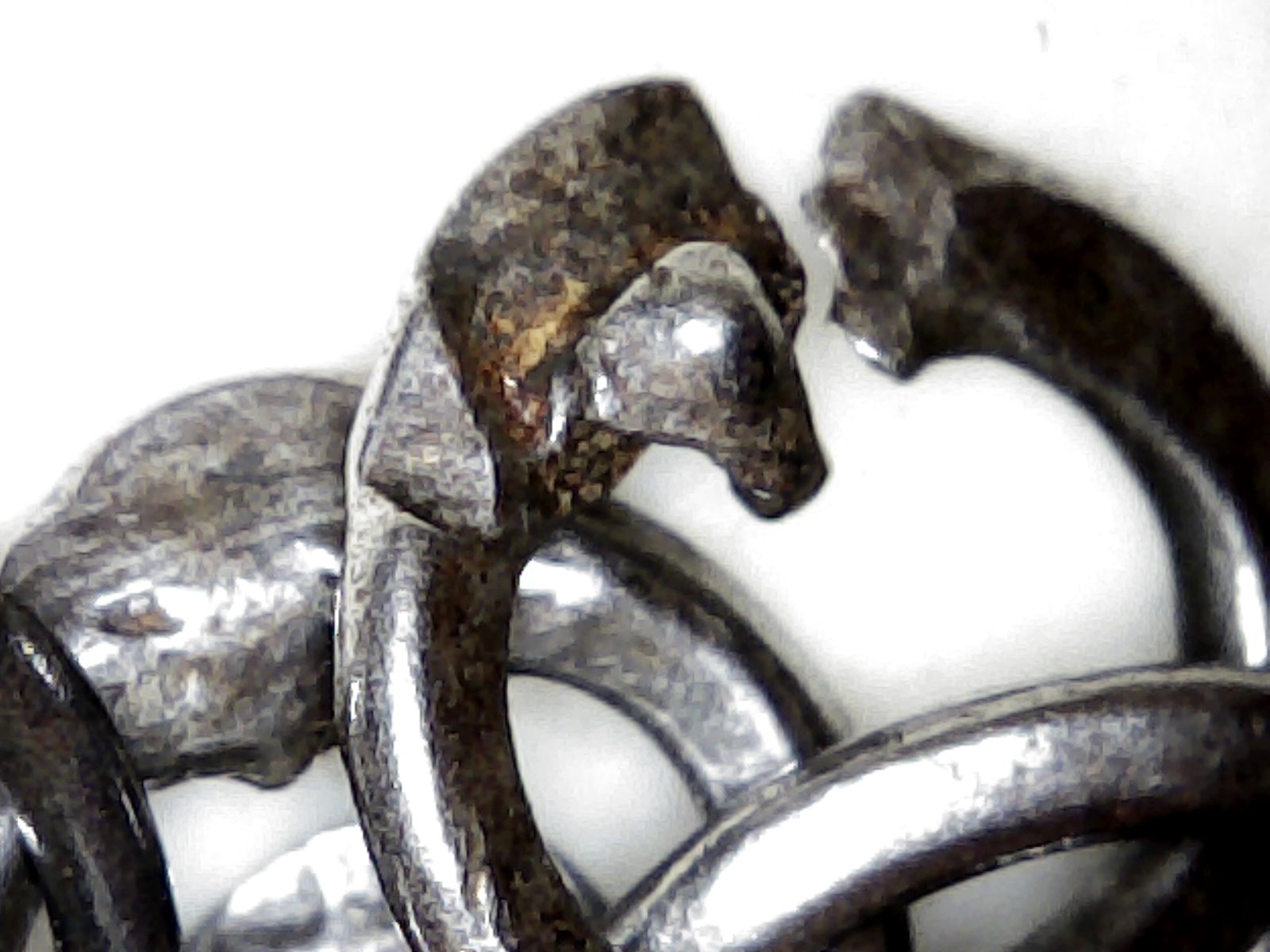

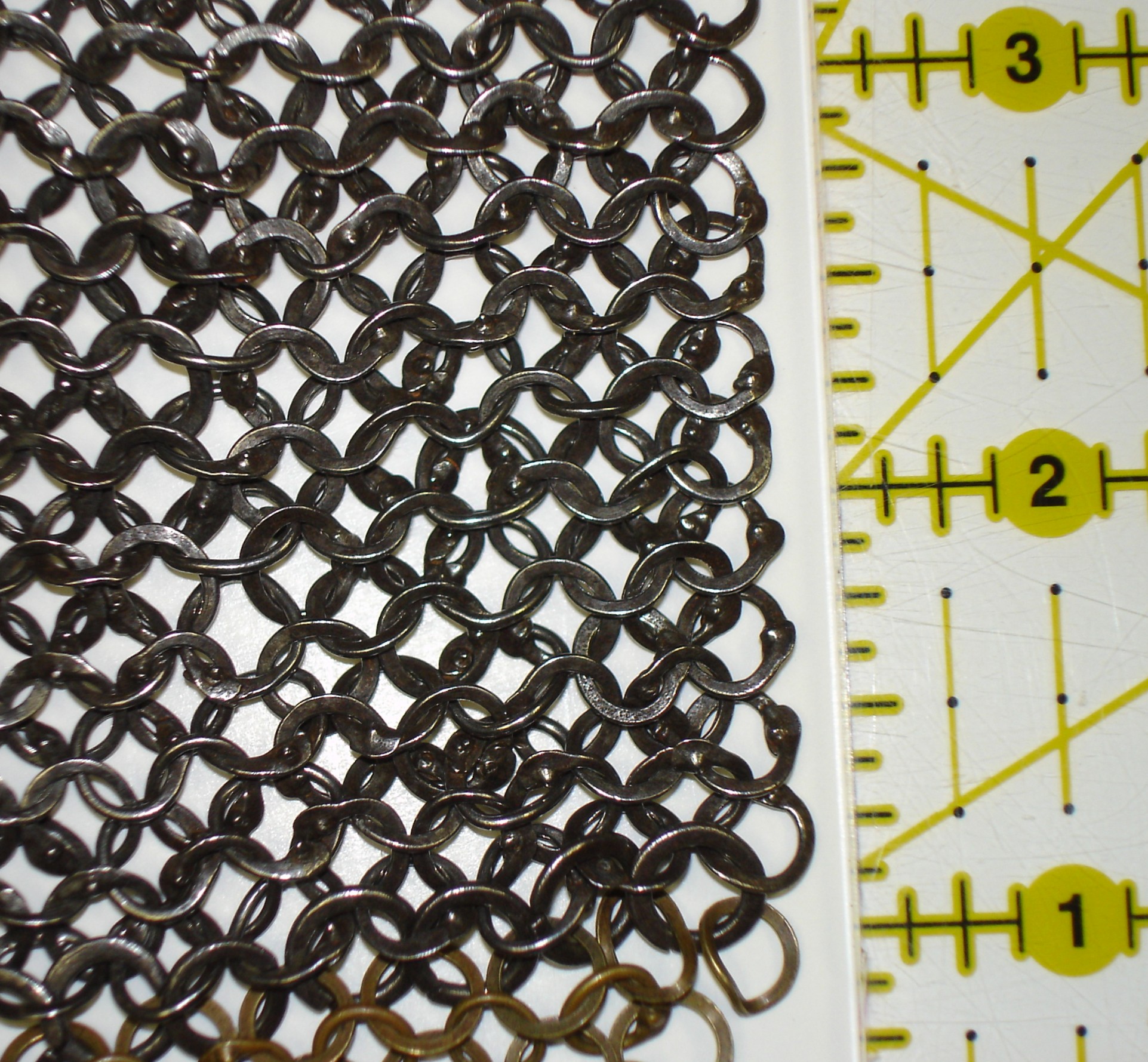

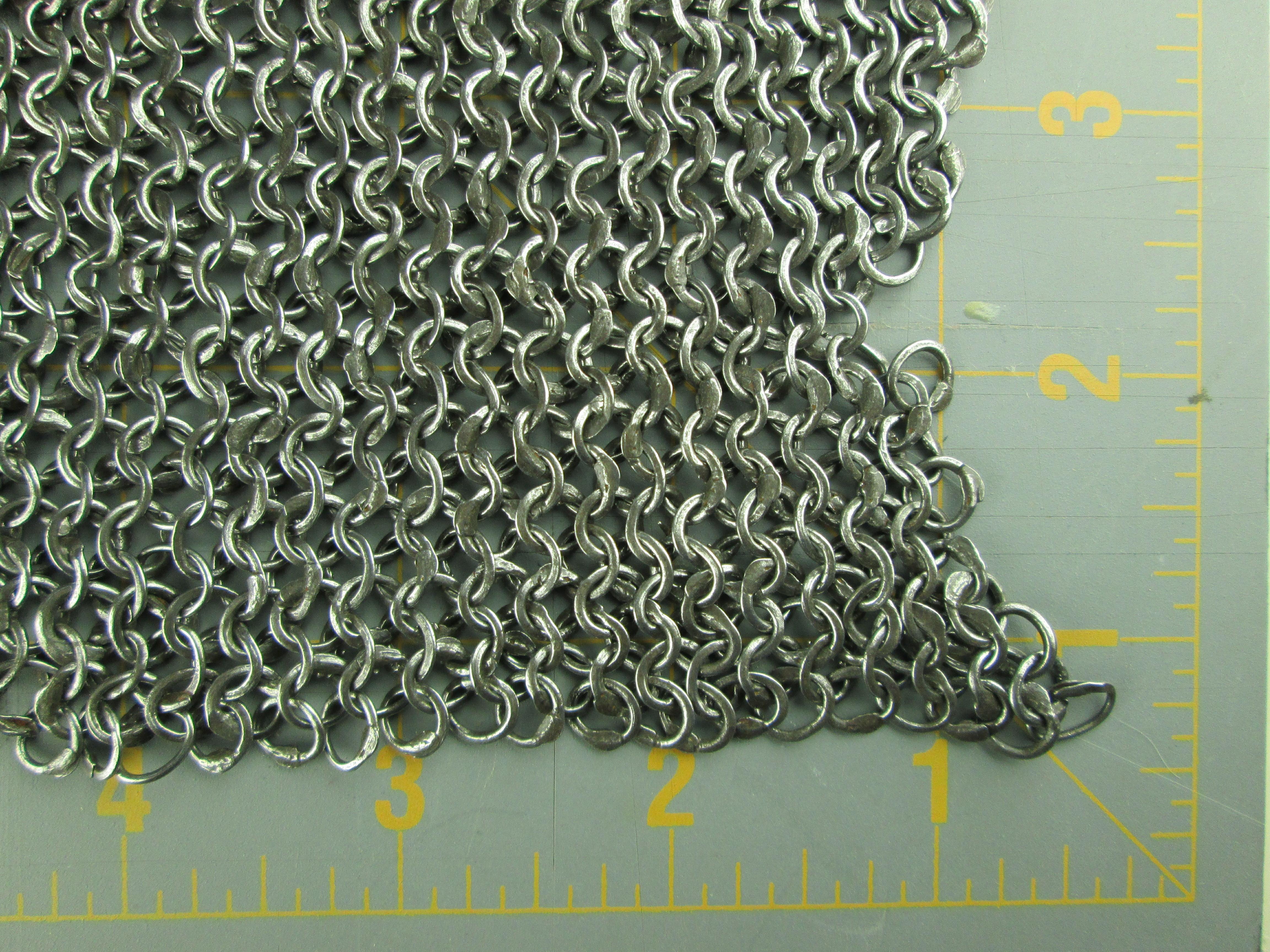

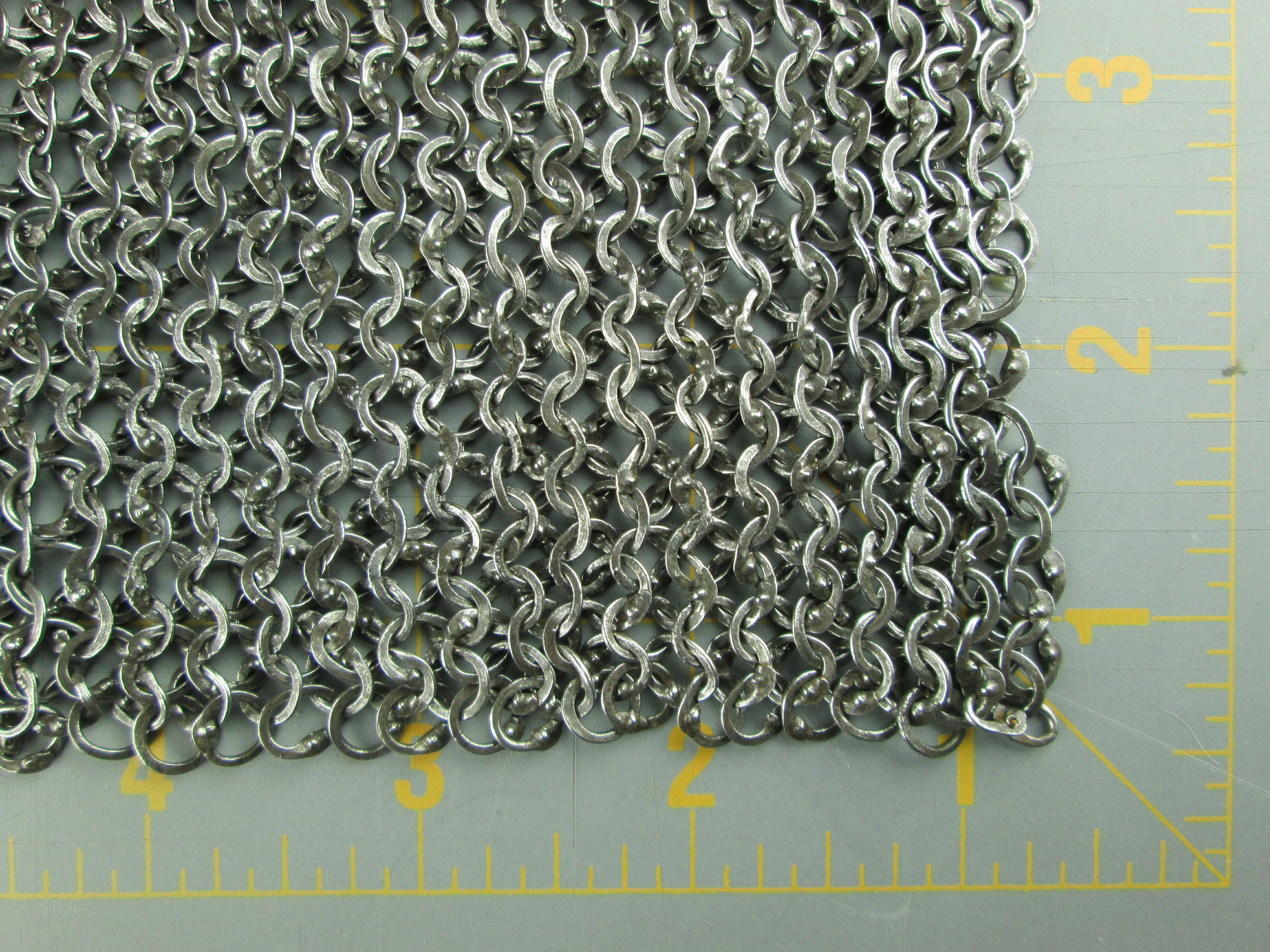

Detail images over the scale show the outside and inside of the rings. Microscope images show: first and second show a broken ring where the rivet has held, though the top of the overlap has partially torn free, third shows striations (possibly from punching) on the solid latten rings of the edging, fourth shows draw marks on the riveted latten rings and burring on the punched rings, fifth shows the back of the brass wedge rivets and more striations on the punched rings, sixth shows the shape of a rivet hole in the latten rings - a trapezoid similar to a sharp-cornered USB connector. Detailed images and analysis by Mart Shearer.
