Composed armour c. 1560 Landshut - E.1939.65.r

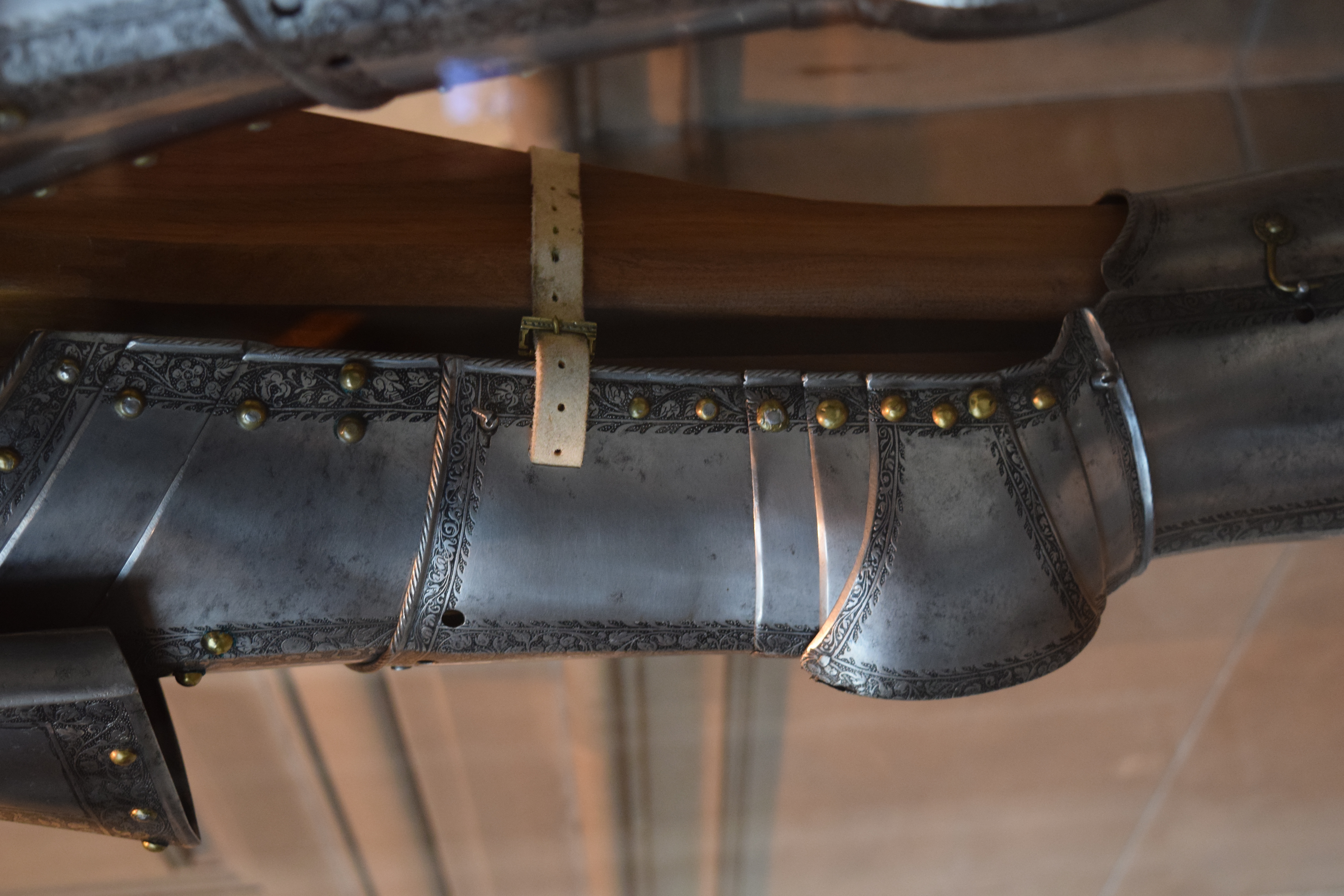

The inside of the right cuisse. We can see the internally mounted buckle for the strap around the thigh, the slot which allows the end of the strap to be tucked away neatly and the mechanism used on the cuisse to connect the upper and lower plates. In this case it is a small turn pin that engages in a small keyhole slot. This keeps the plates aligned and prevents the larger keyhole and rivet system used on the lateral side of the cuisse from disengaging. The same system is used to secure the lowest lame of the polyene to the greave. The greave is closed by a pin in the rear plate engaging a hole in the front plate - enhanced here by a hook that goes through a hole in the pin to prevent the plates from popping open.
This image was taken during a study session of a few pieces in storage at the Kelvingrove Museum Glasgow in May 2026. This image is available for study purposes only. It is provided with kind permission of the Kelvingrove Museum Glasgow . Any request for reproduction or commercial rights should be directed to the Kelvingrove Museum Glasgow . Issues with photography are the fault of the photographer, Wade Allen, and not in any way the fault of the Kelvingrove Museum Glasgow .
