German Breastplate 1550-60

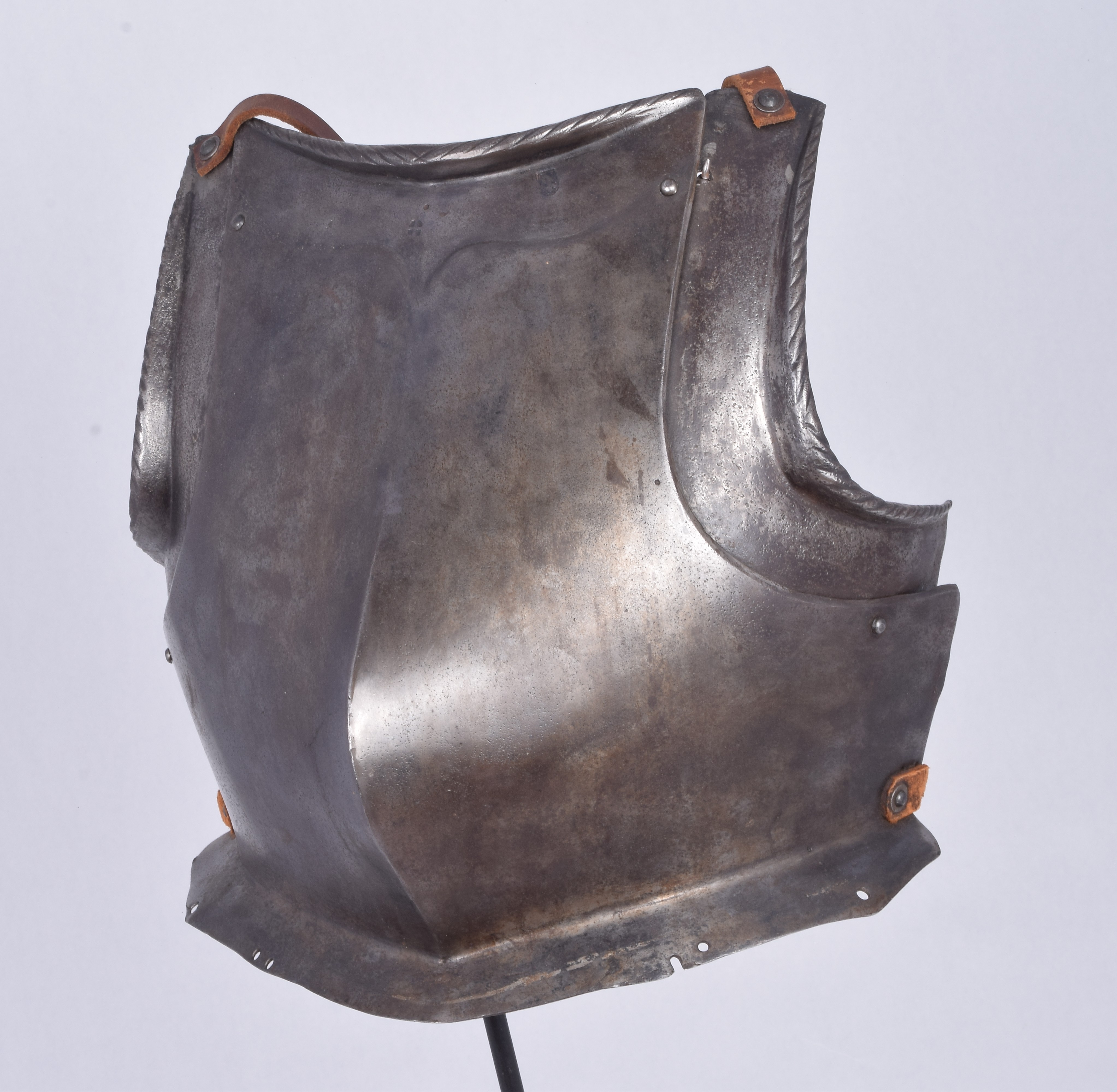

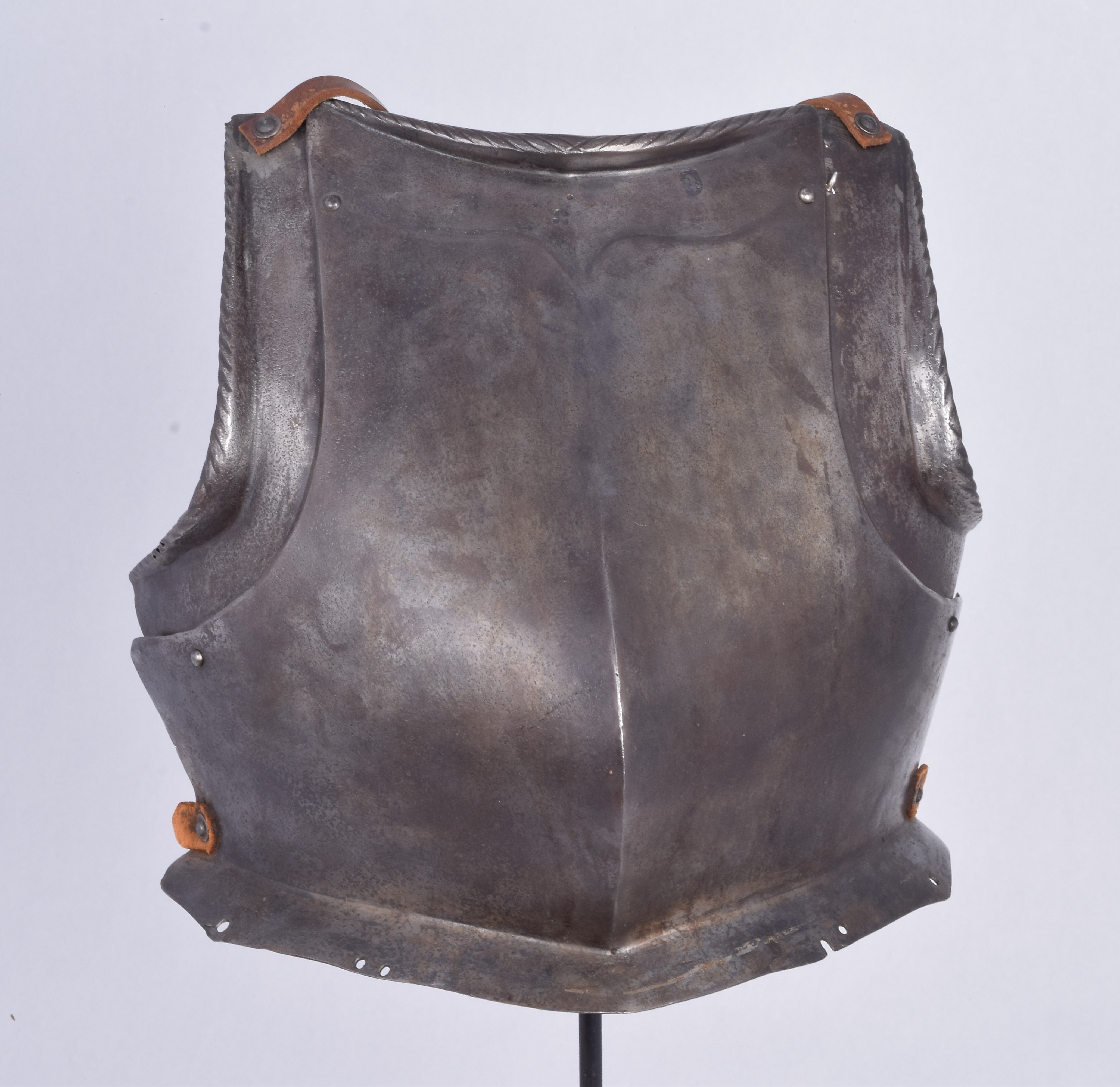

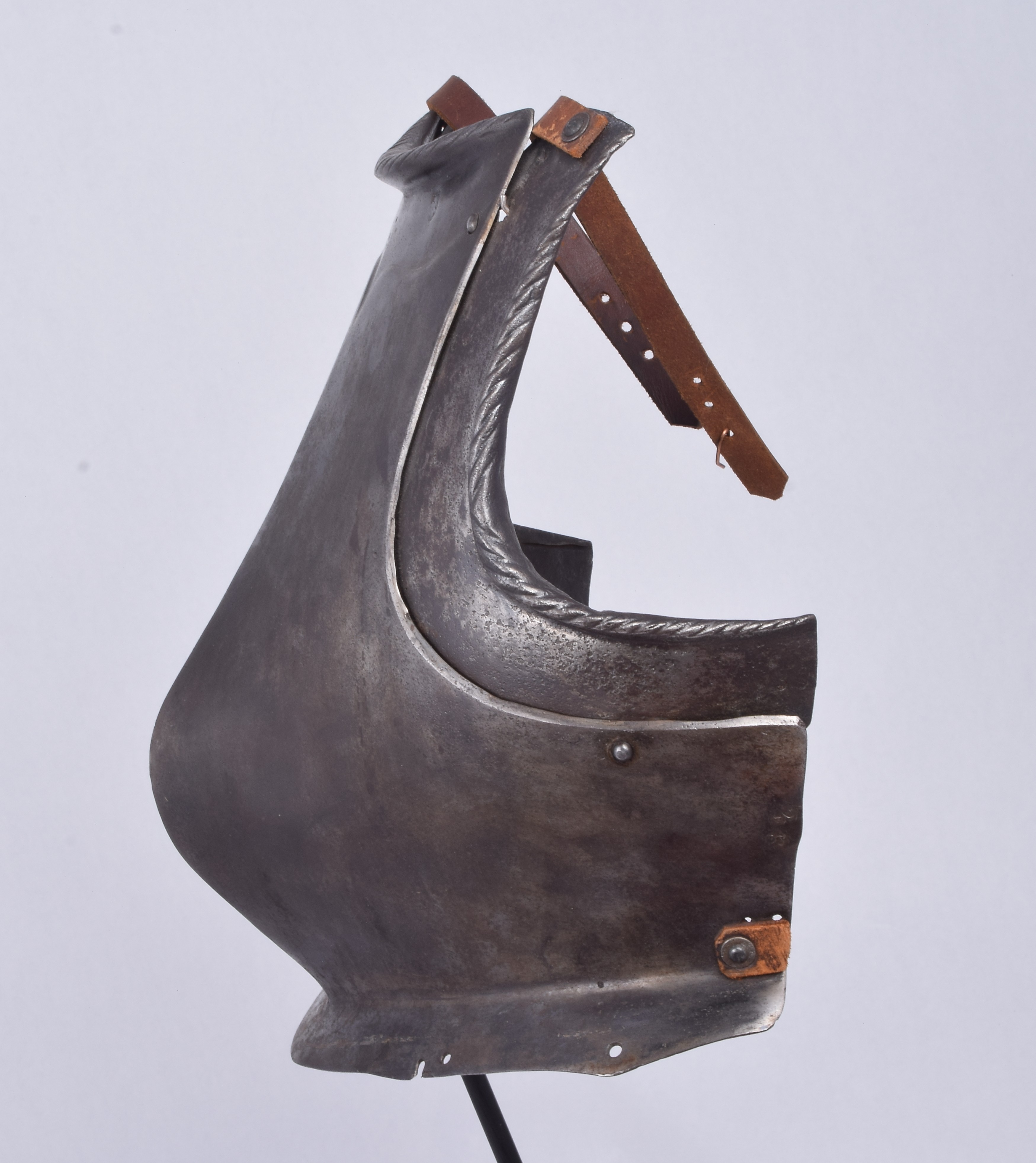

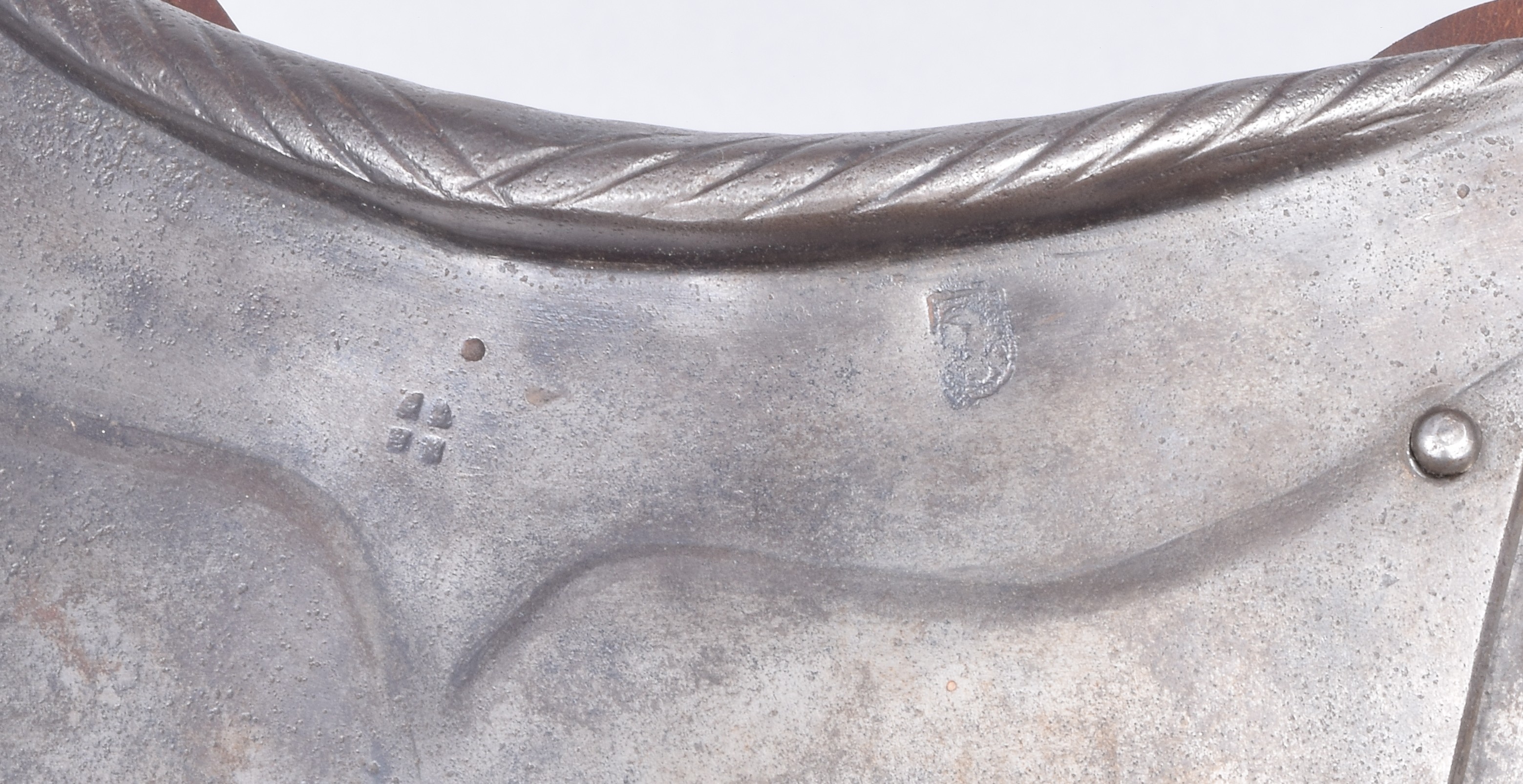

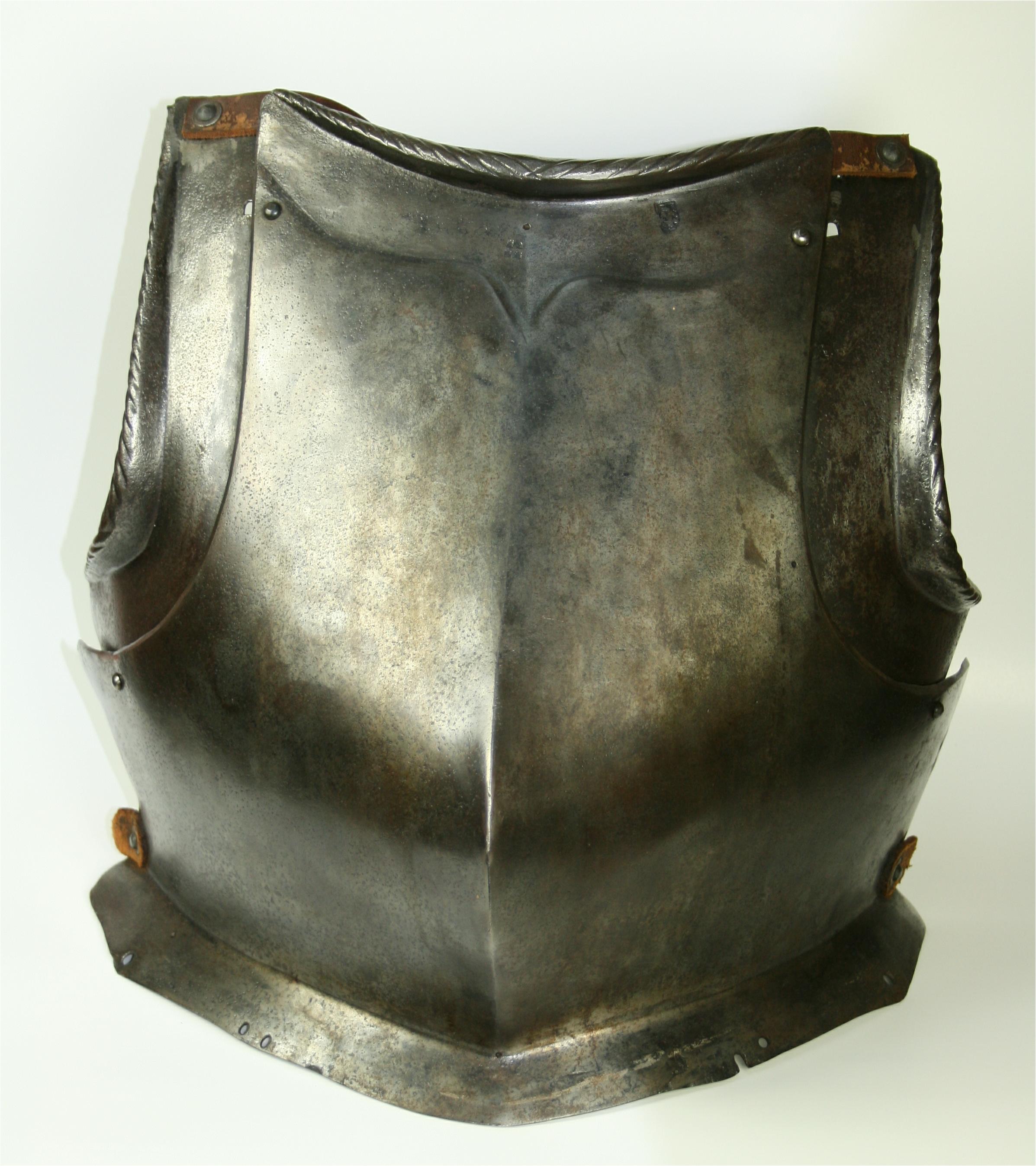

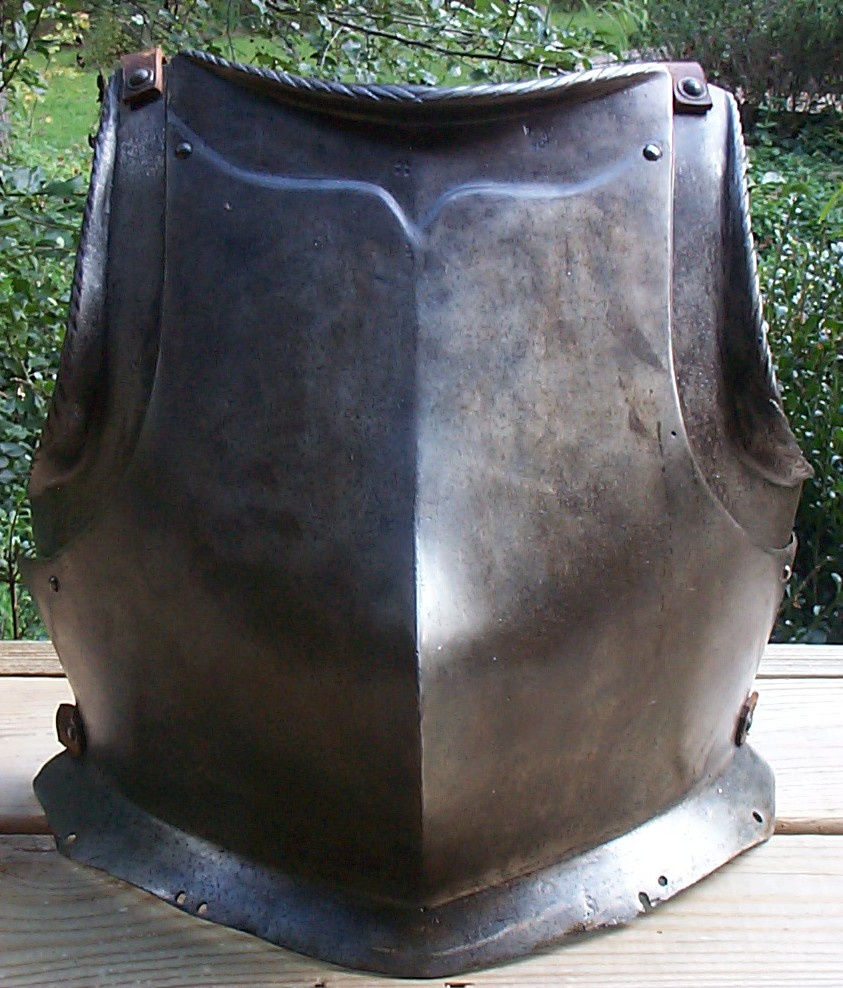

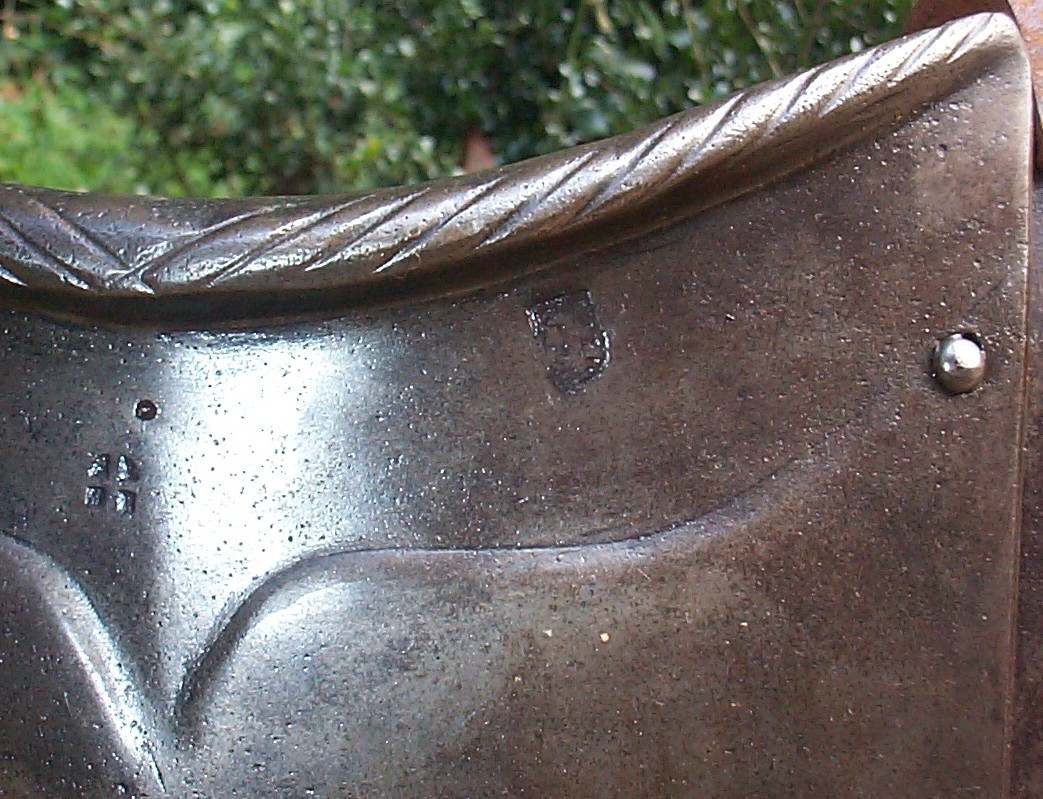

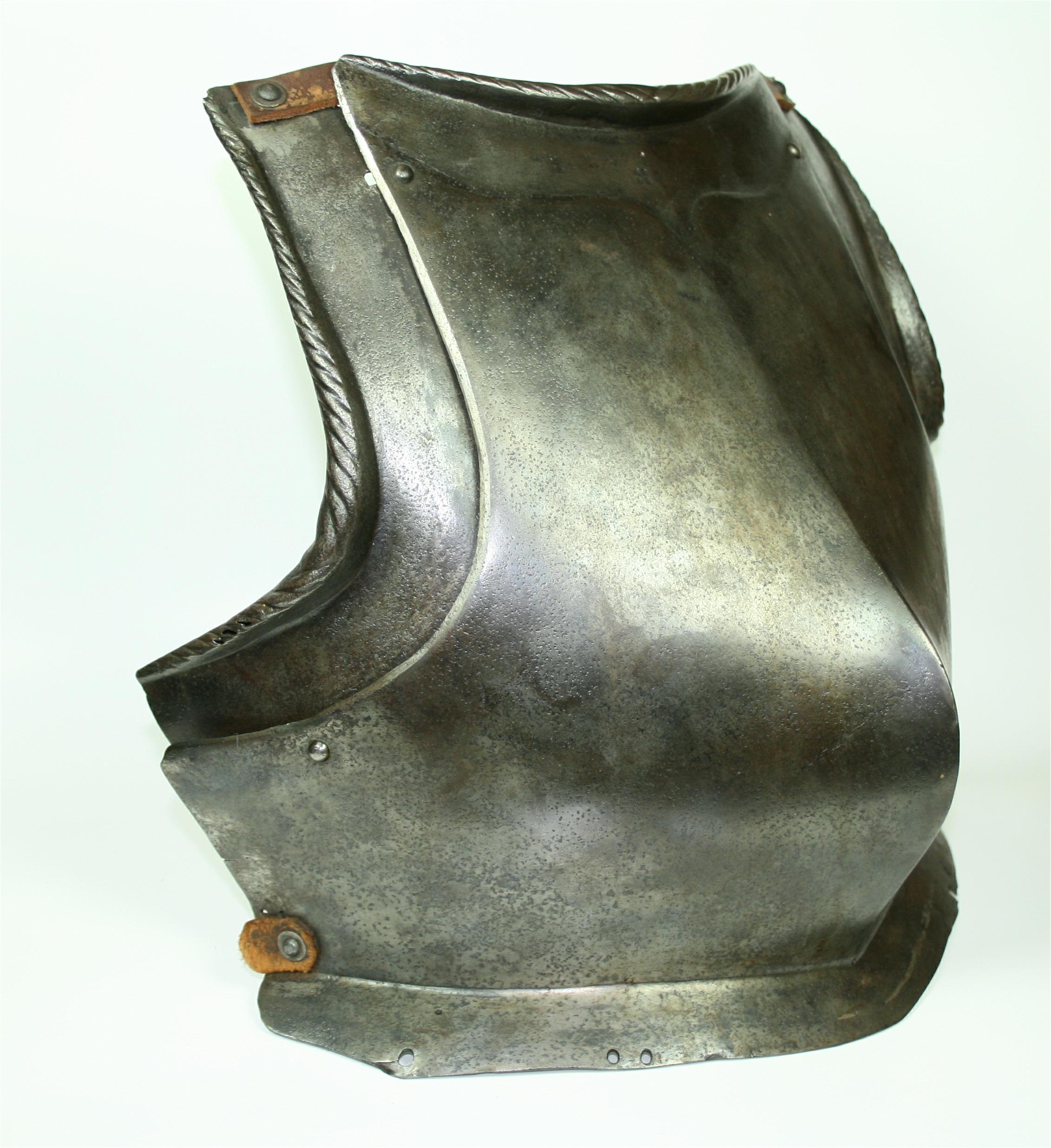

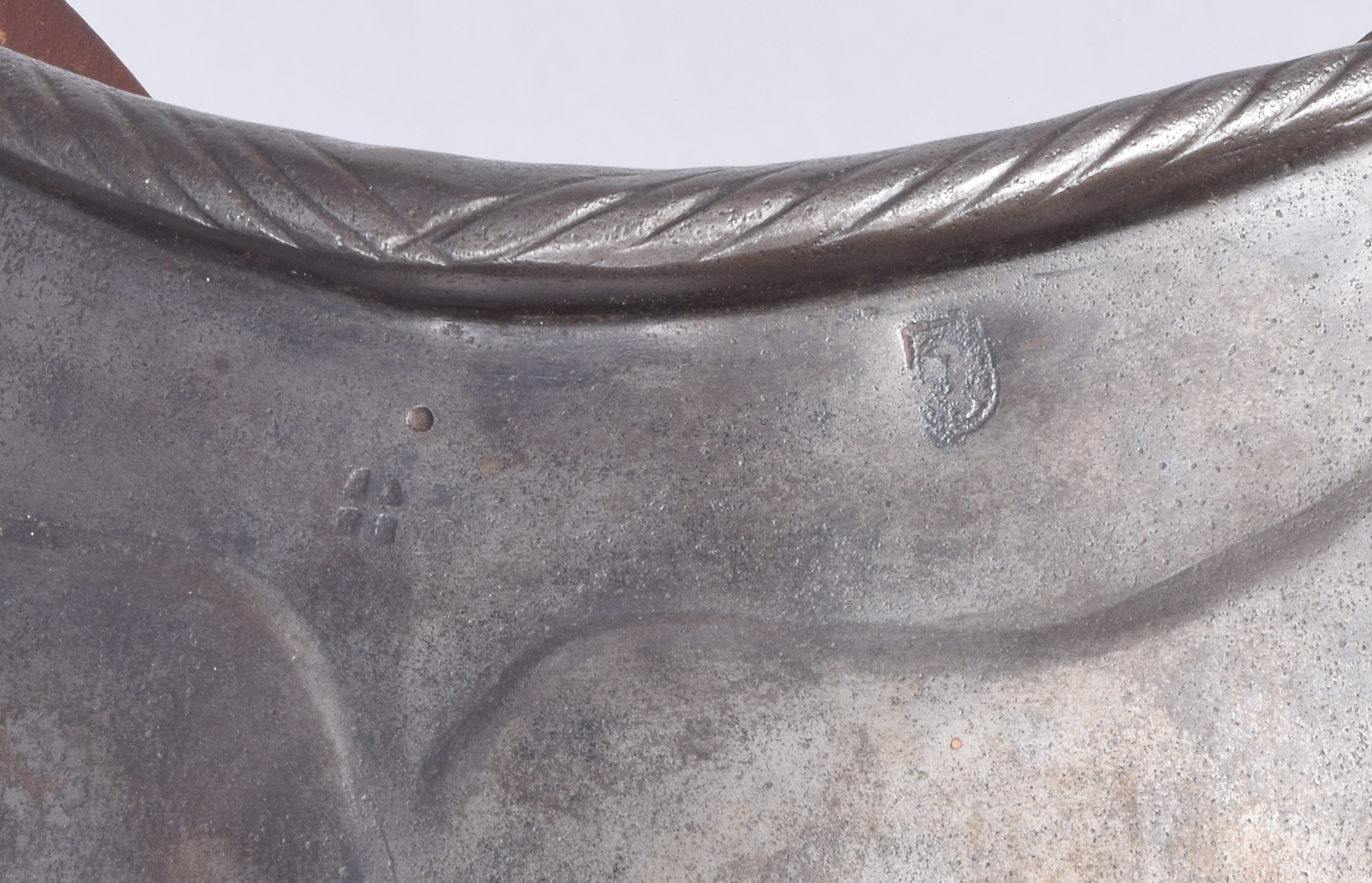

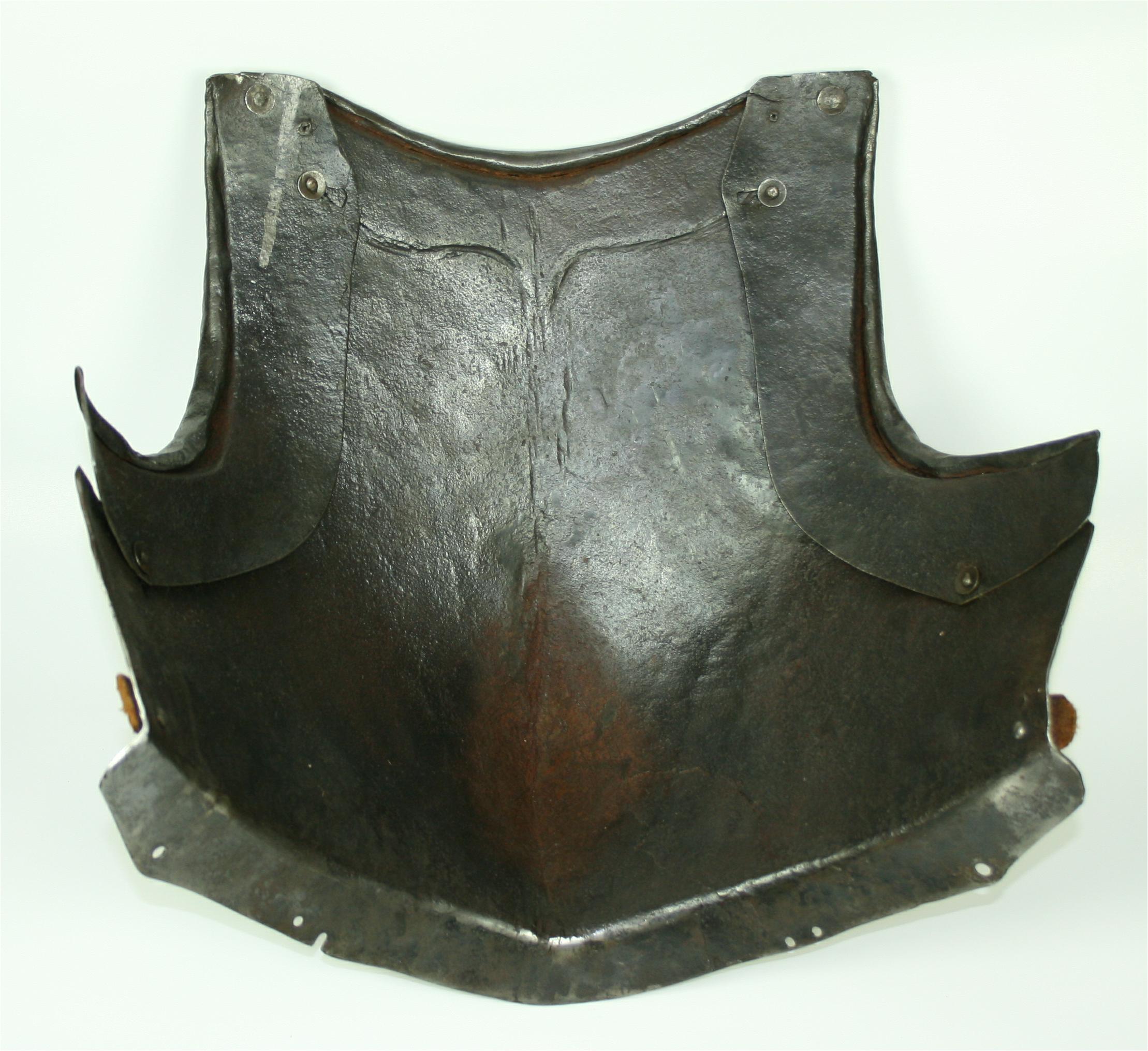

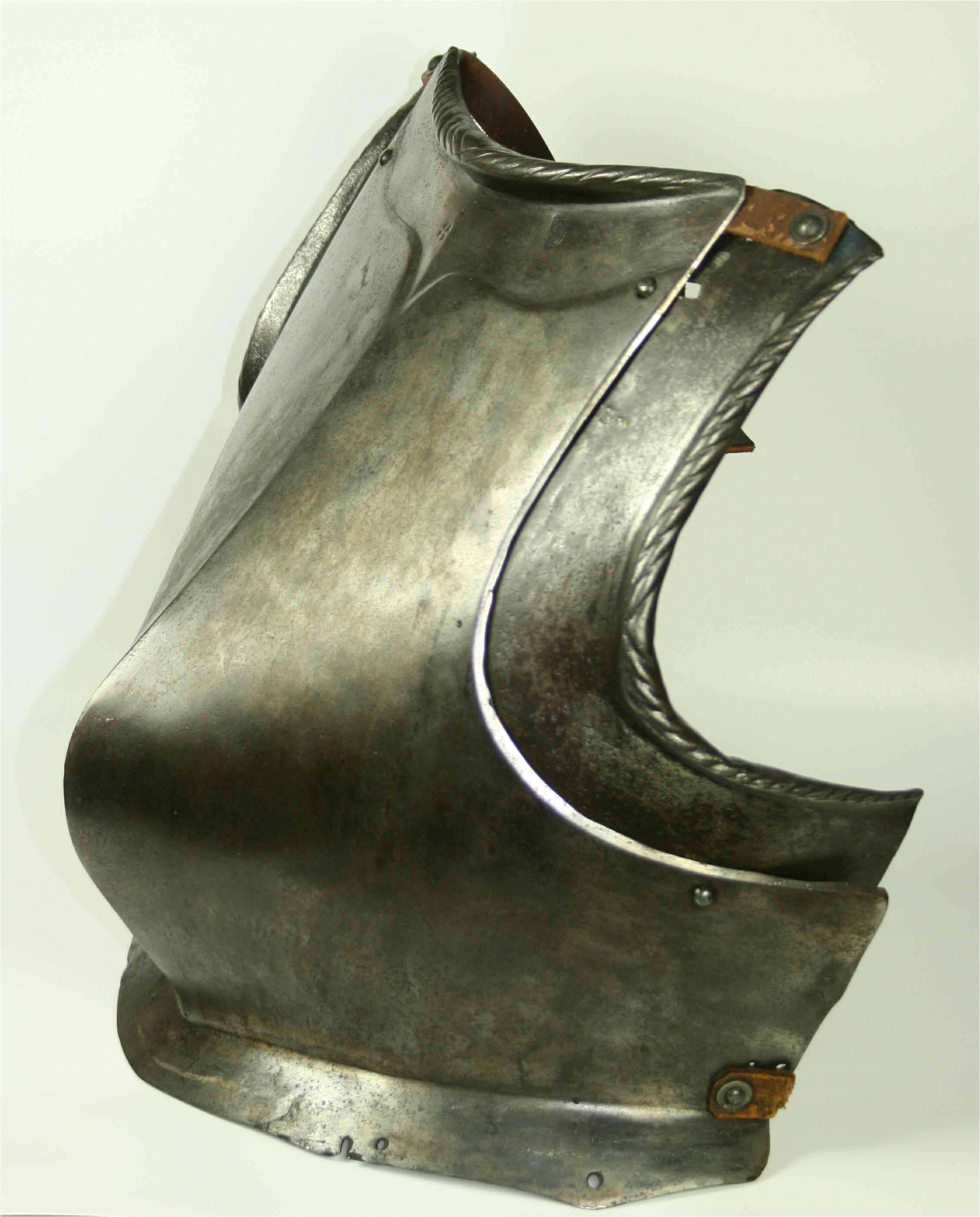

Aggresive central crease rising to a rounded point. Sliding gussets at the arms with large inward turned, roped rolls. Large inward turned rolled roped edge at the neck, with a recessed border curving down to a central point. 2 marks near the neck. Nuremberg Guild mark and Vienna arsenal mark. Integral flare at the base for attachment of the fauld (instead of a separate waist lame). Holes in the flare for articulation toward the outer end and pairs of holes for leathers in app. the middle of each side. These would be used to secure 2 interior leathers which would terminate at the center of the tassets.
Height 14 in. (50 mm), 12 in. wide at the waist, 14 1/2 wide under the arms and 11 1/2 in. wide at the top with the gussets fully extended. Neck roll 1/2 in. wide and 3/4 in tall at the center tapering to 1/4 in. wide and almost flat at the ends.
Thickness. Max. .187 in (app. 1/2 way between the point and the center of the arm hole). Highly variable thickness in the middle, generally between .130 and .160 in the central 1/3 of the breast. .047-.055 at the right edge. .068-.092 in. 2 /12 inches in from the right edge (the line under the lower rivet securing the gusset). .108-.122 in. near the center below the 'point'.
Weight: 7 pounds 2 ounces (3,250 g).
