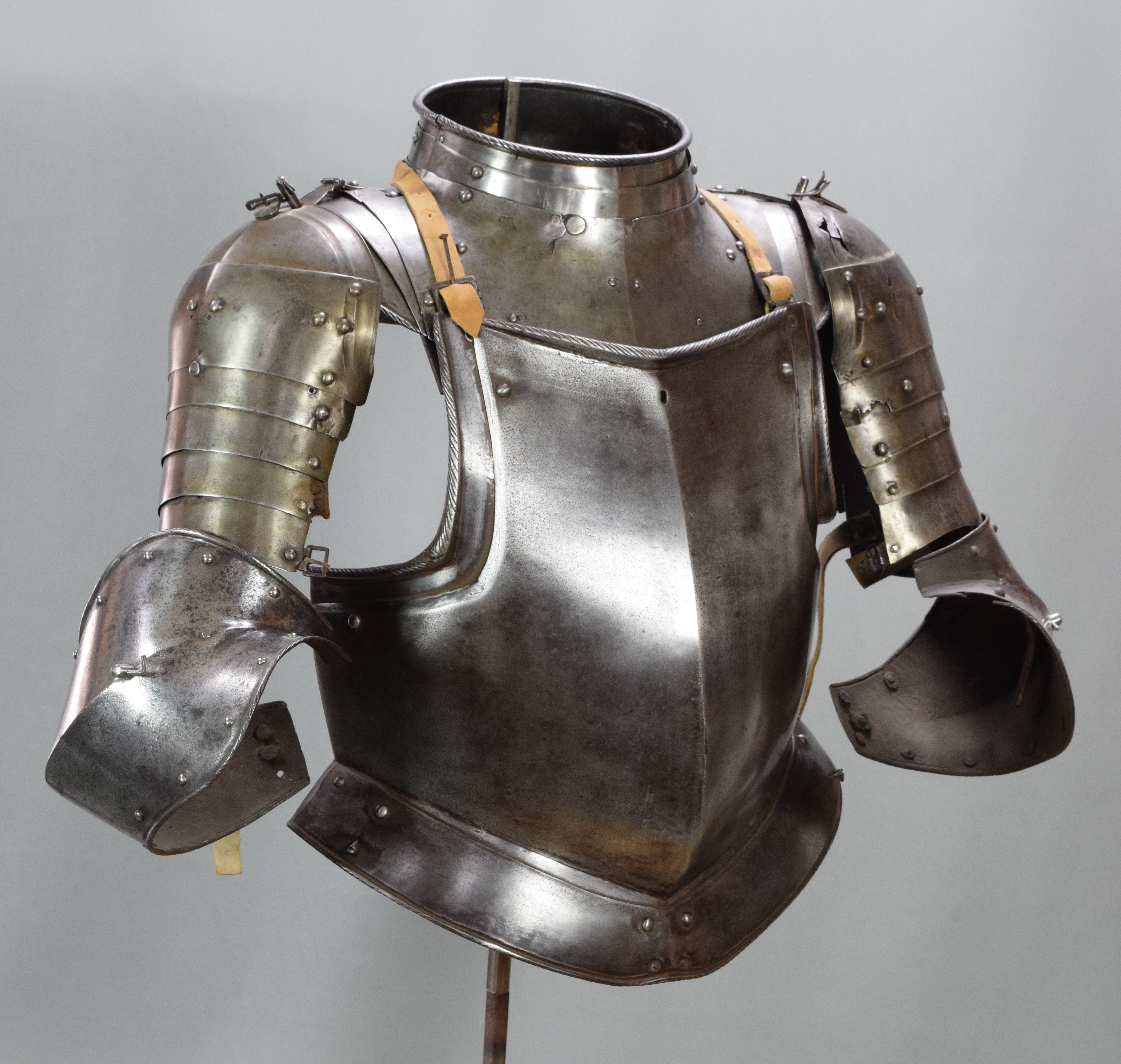

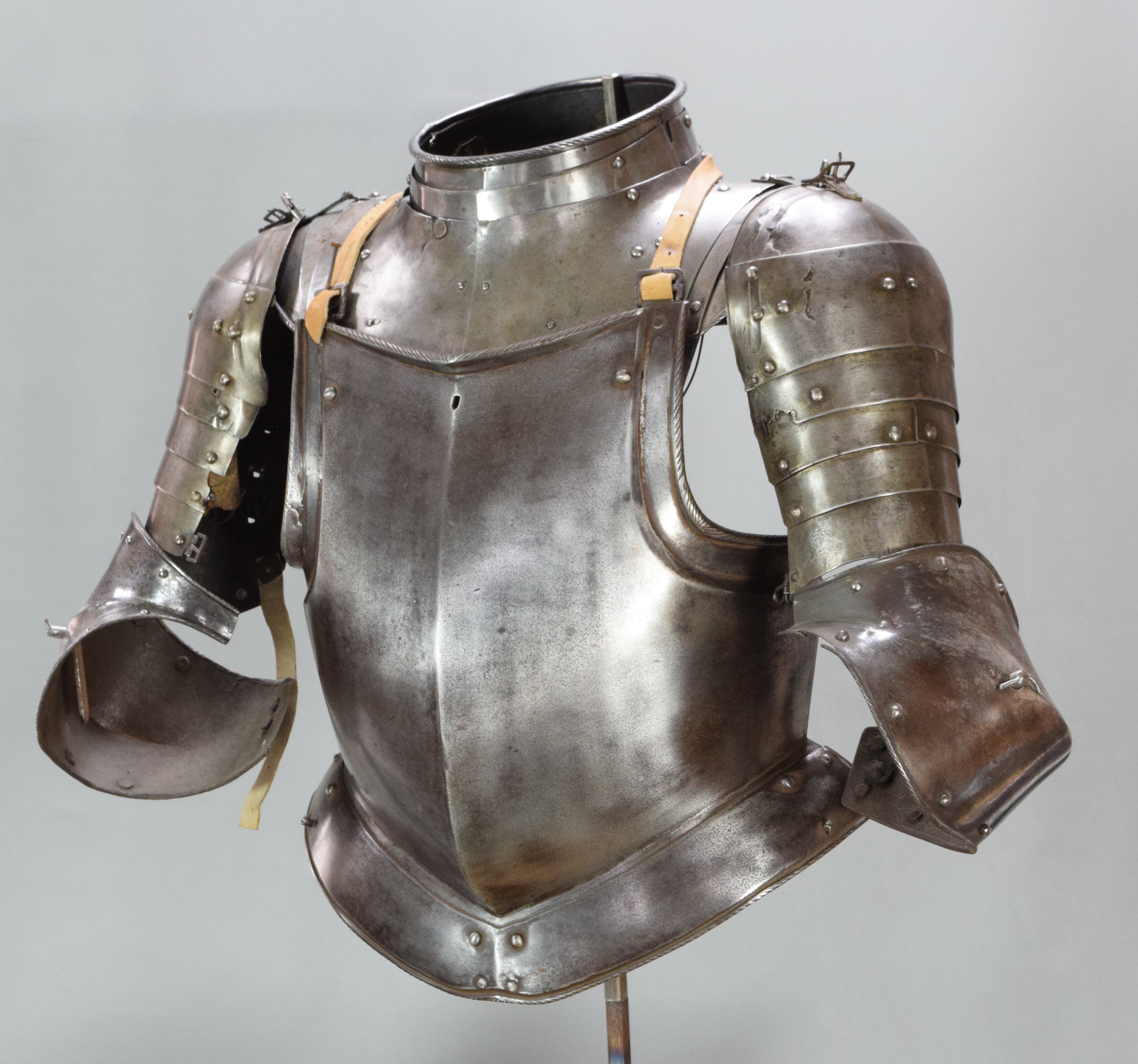

Partial suit - A-308 Partial suit - A-308-right Partial suit - A-308-left

Partial suit 1570

Composed partial harness using pieces of German manufacture from the third quarter of the 16th c. Comprising a gorget with integral shoulder plates, heavy breastplate with gussets at the arms and single fauld lame, spaulders and elbows.

Breastplate: With a central crease drawn out to a rounded central point. There is a small rectangular hole near the center of the neck. This appears to be for securing the peg that would be used to secure the buff. The edges of the breastplate at the arm holes and sides are heavily beveled. Tapering inward-turned rolls at the neck and arms. Arms with sliding gussets. Gussets and upper roll with fine roping. Waist with a single lame fauld with turning pins at the sides for securing a removeable fauld. The single fauld lame has a roped roll a the bottom edge. The central hole at the neck and decorative style indicate that this is likely of Brunswick origin.

Height 13 3/4 inches from the center of the waist to the center of the top roll. Width 14 inches under the arms and 12 3/4 at the waist. 10 3/4 inches wide at the top with the gussets out, 10 1/8 inches when they are pushed in fully.

Thickness varies significantly, but there doesn't seem to be an intentional pattern to the thickness changes. Generally around .180-.190 in (4.57 mm - 4.83 mm). Some thick areas .220 inch, thin areas .150 inch. Gusset ranges from .055-.075 inch. Fauld lame .030-.040 inch. . Weight 10 pounds 9 ounces (4800g).

German Gorget: Formed of 3 plates front and back with additional plates covering the points of the shoulders. Main front plate with central crease. Main rear plate formed to the shape of the neck and shoulders. Neck tof two lames front and back. Upper plates with srong inward-turned roped rolls. Neck lames creased at the center front following the crease in the main plate. Neck lames attached by 3 leathers front and back, each secured by 2 rivets in each plate. Upper plate secured by an integral hinge at the left and a pin at the right. Main plates secured by a pin at the left and a pin engaging in a keyhole slot at the right. Attached shoulder protection of two plates each. One a small articulating plate, the other shaped to cover the point of the shoulder. Edge rolled and roped. Secured with sliding rivets at the back and leathers at the center and front edge. The leather on the right can be detached from the main plate to allow the gorget to be opened. Two hinged mounts for the suspension of the pauldrons, each carrying a vertical pin with a spring-loaded catch. One associated. Older leathers. A pair of holes at the base of the center of the rear main plate. I have added two images of another separate pin in the collection. This one has lost its toggle, but retains its spring.

Top of neck slightly out of round. App 6 1/2 inches across on the inside (app. 1/4"" longer front to back than side to side). The main plates are 10 1/4 inches wide at the front, 11 1/2 inches wide at the join between the front and back plates and 13 1/4 inches wide at the back. Overall thickness varies between 0.03 in. and 0.050 in. It is generally around 0.040 in. thick."

For similar see WAM 2014.783 - formerly in the John Woodman Higgins Armory Collection and Claude Blair - European Armour - page 207 item 150 - illustrates item II. 1 from the Royal Armouries.

Pair of Spaulders: Formed of a main plate with one plate above and five plates below, central crease, and raised and recessed border on the top. The shoulder formed with a nice bulge at the top over the top of the shoulder. The spaulders are typical of the early 16th century.

Two Elbow cops: Nearly a pair. Open at the inside with inward turned roped rolls along the edges. The roping changes direction at the wide point of the wing. The cop rises to a blunt crease at the center. There is a line of rivets around the edges of the cops which would have secured a leather strip. There are also rivets in the center of the wing and back edge and a larger central hole. These cops would have have been secured to the vambrace by a leather strip secured to a pin through the hole in the middle of the front of the cop and a strap around the elbow. One of these elbows appears to show signs of the original finish. These pieces were heavily coated in oil and have gone through relatively few owners. There appear to be areas of surface finish which have not been heavily oxidized or recleaned repeatedly. This can be seen on the lower half of the cop. The surface appears to have been polished over signs of grinding. Ex. Royal House of Hanover.

Composed of item number A-158 (breastplate), item number A-25 (gorget), item number A-214a (spaulders) and item number A-177 and item number A-178 (elbows).


If you have any questions, please send them to Wade Allen
