Arm harness 1540-60

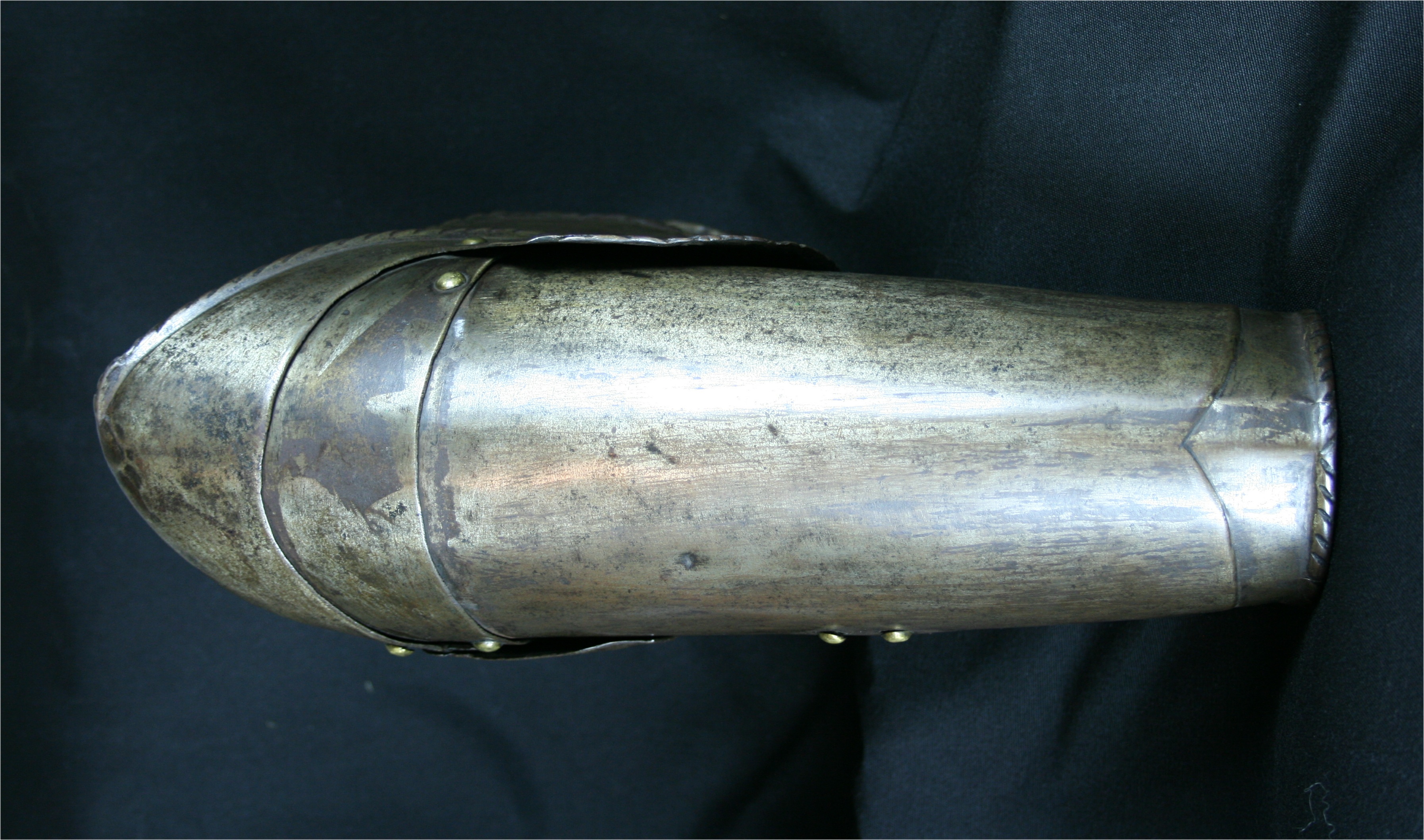

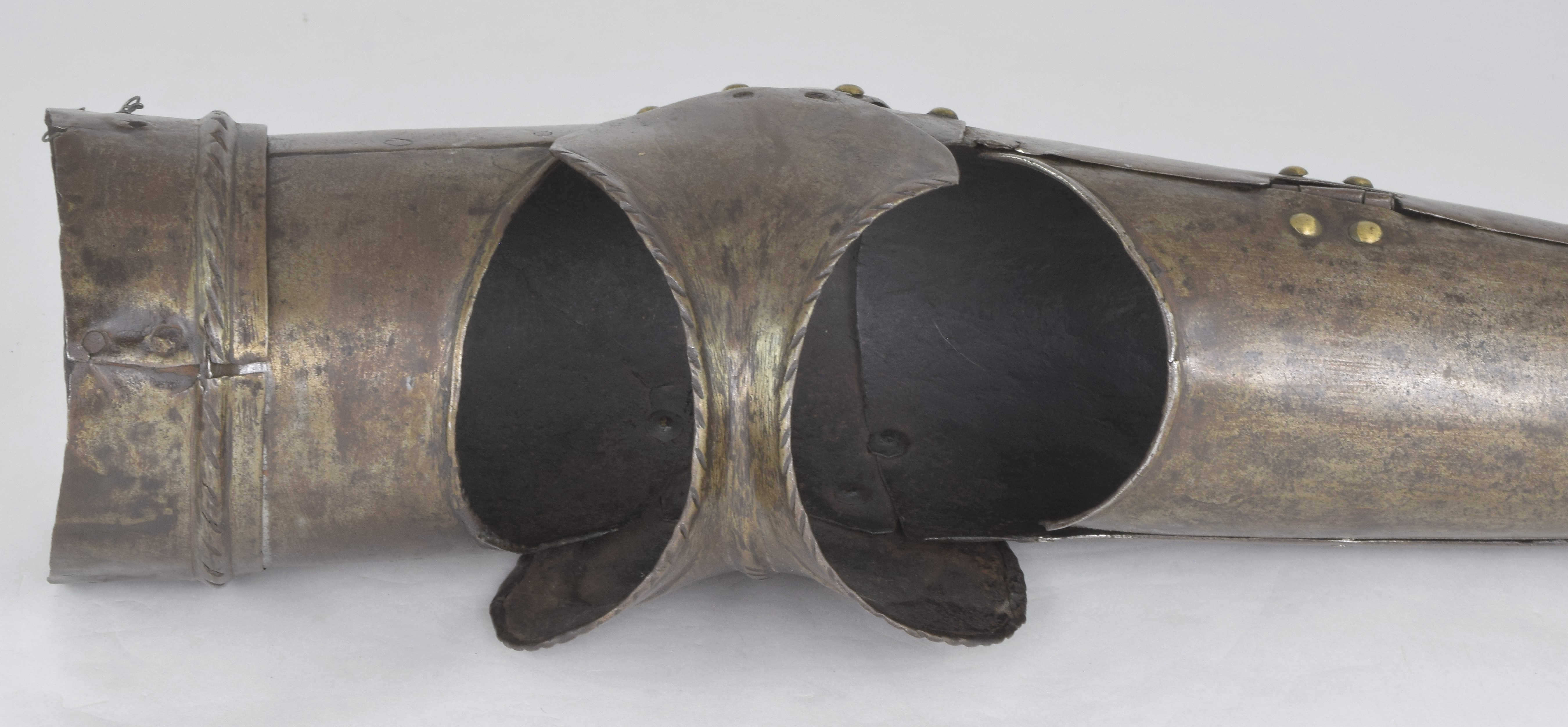

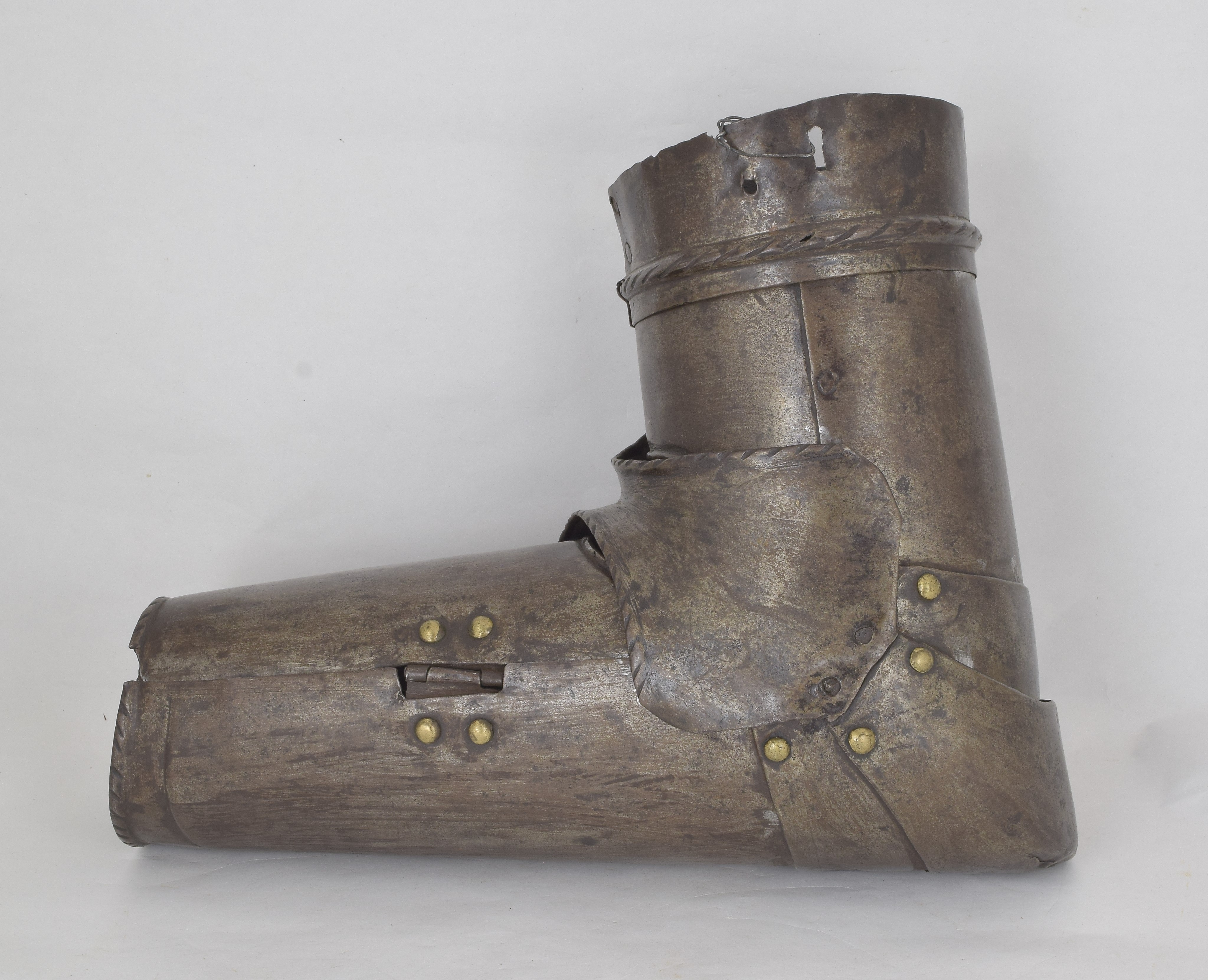

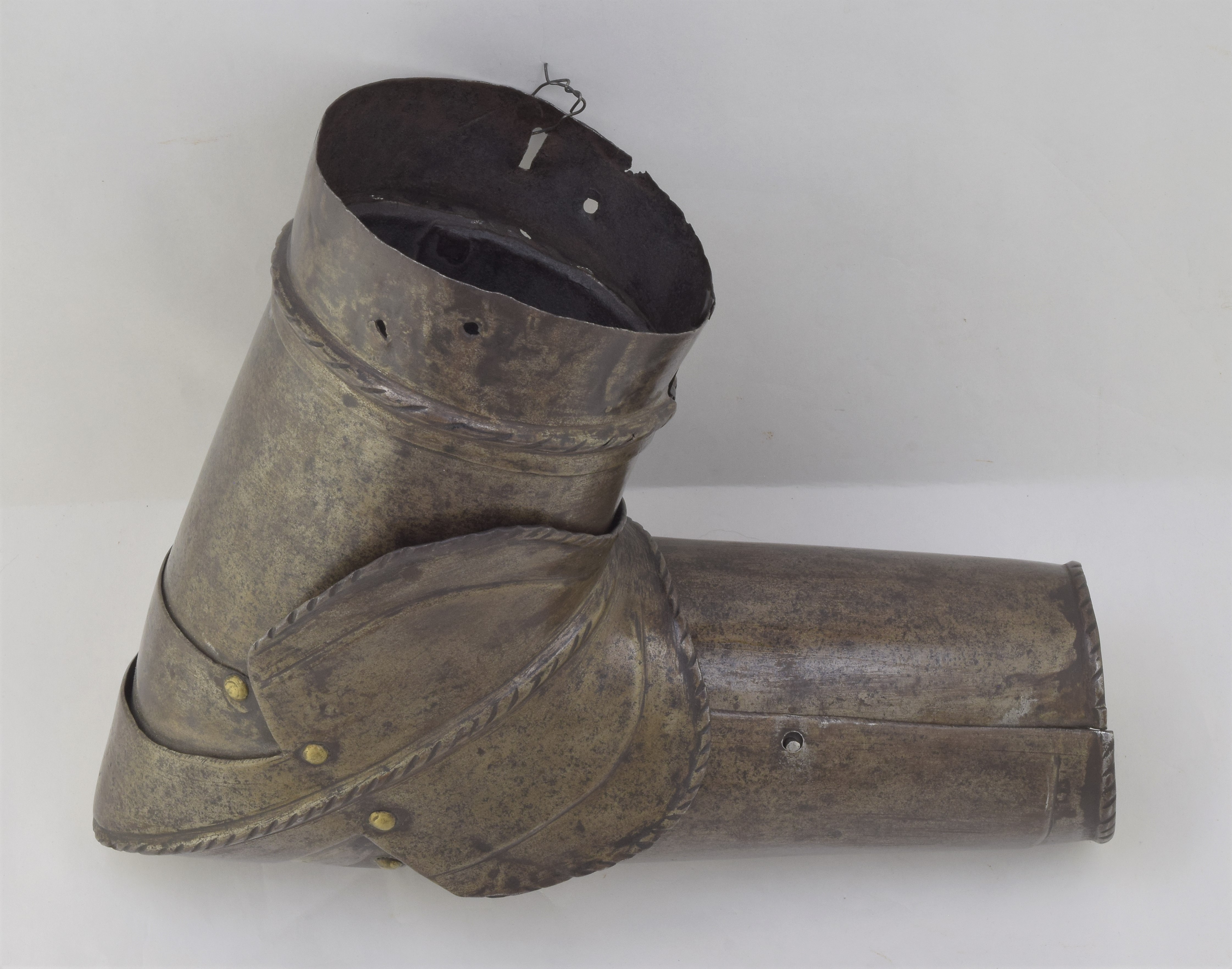

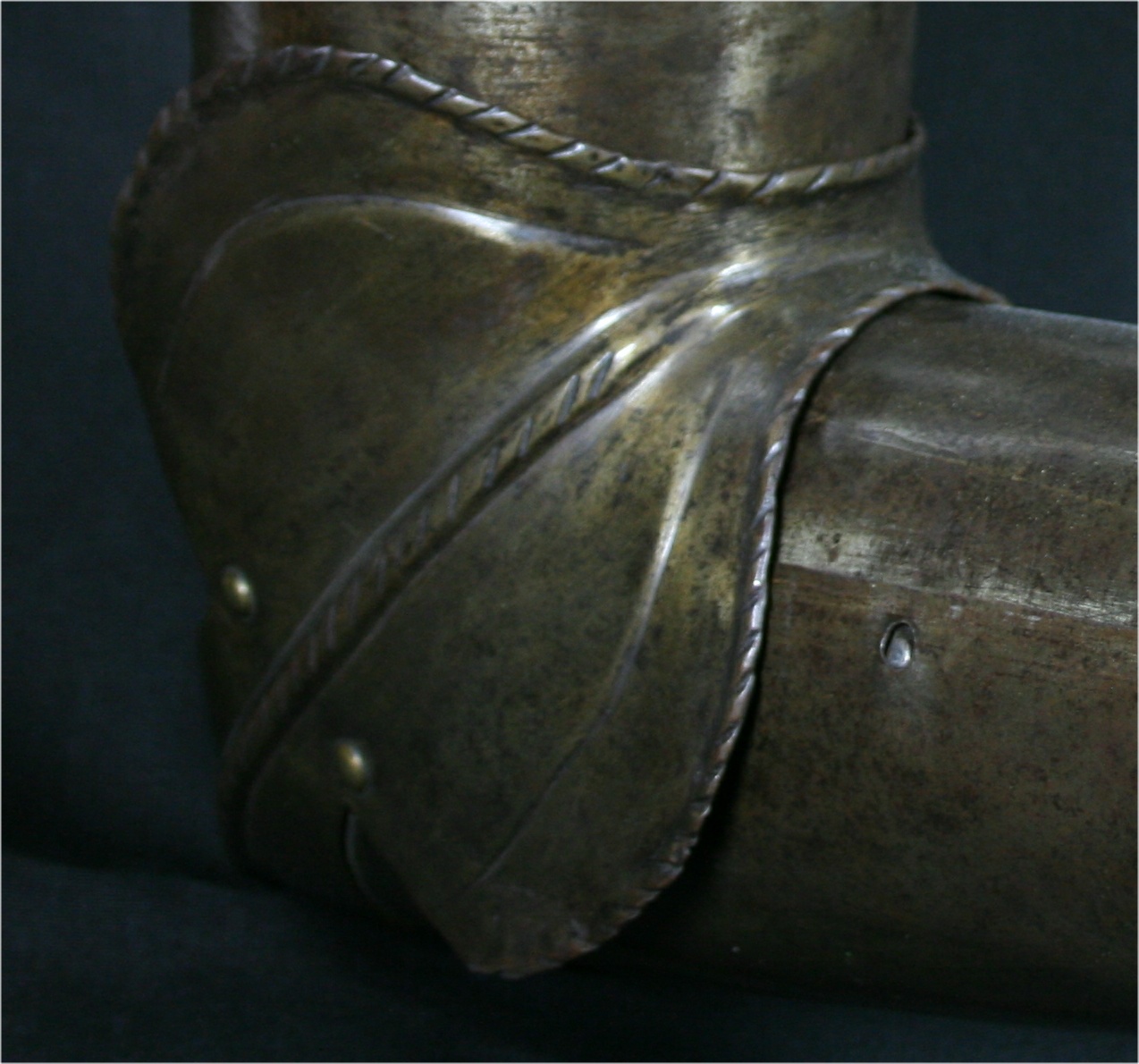

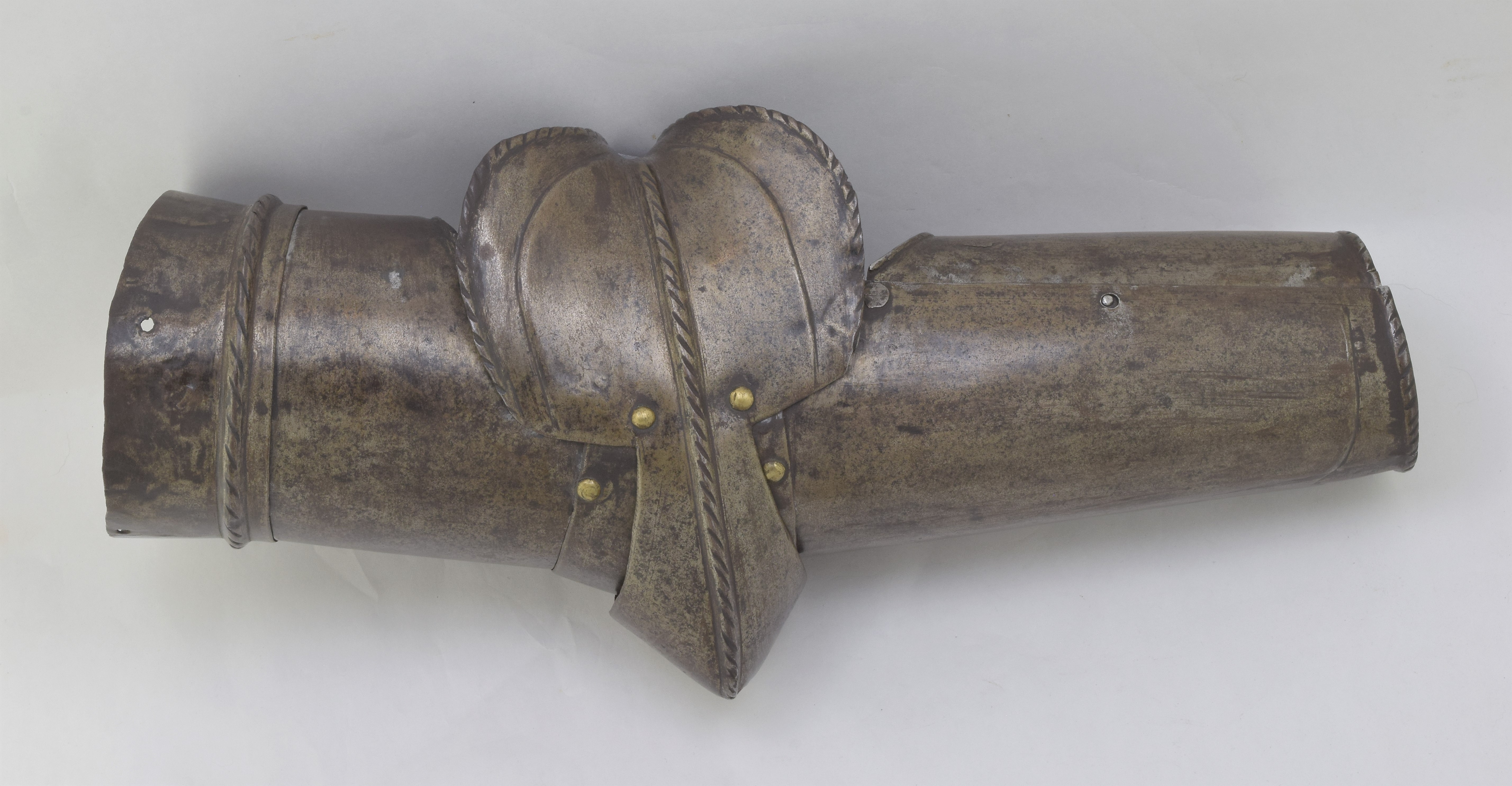

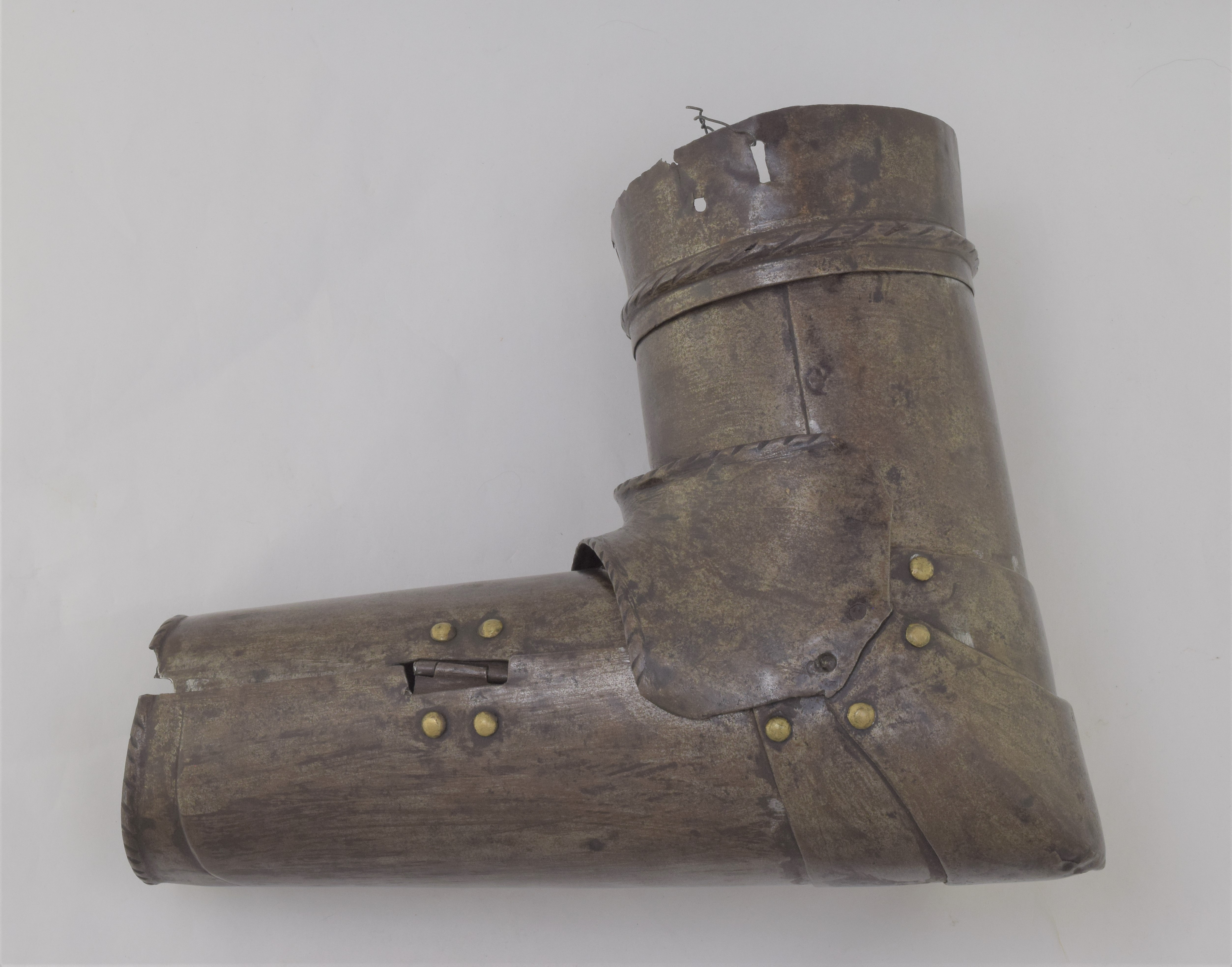

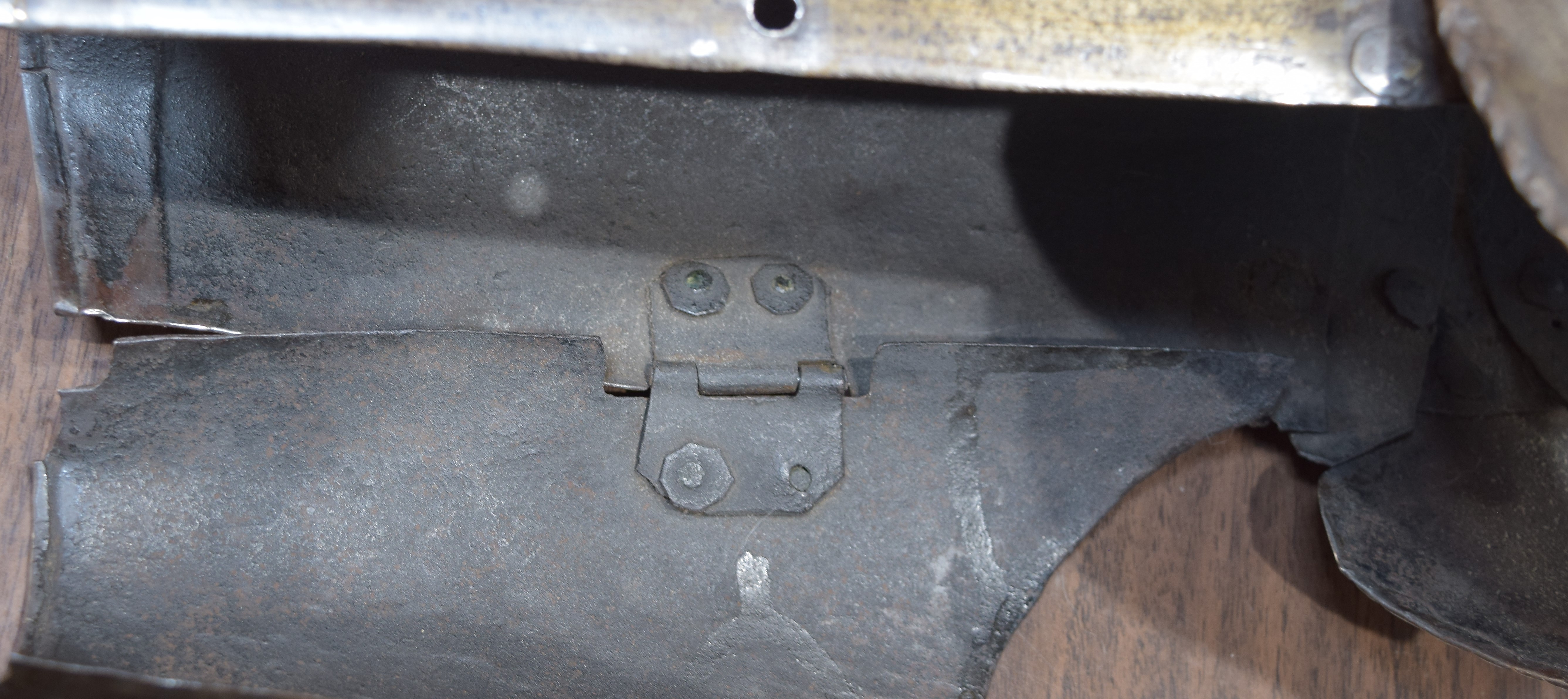

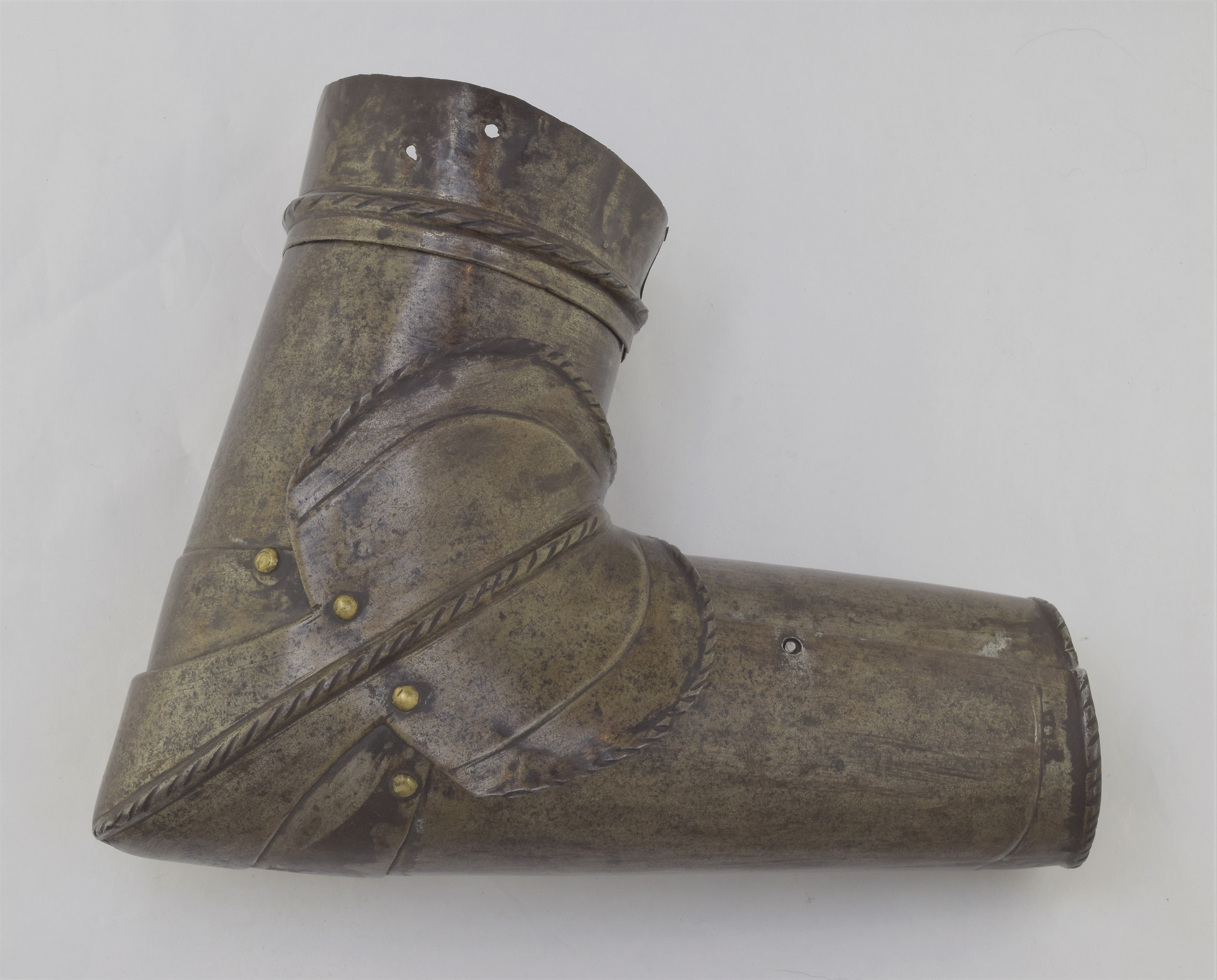

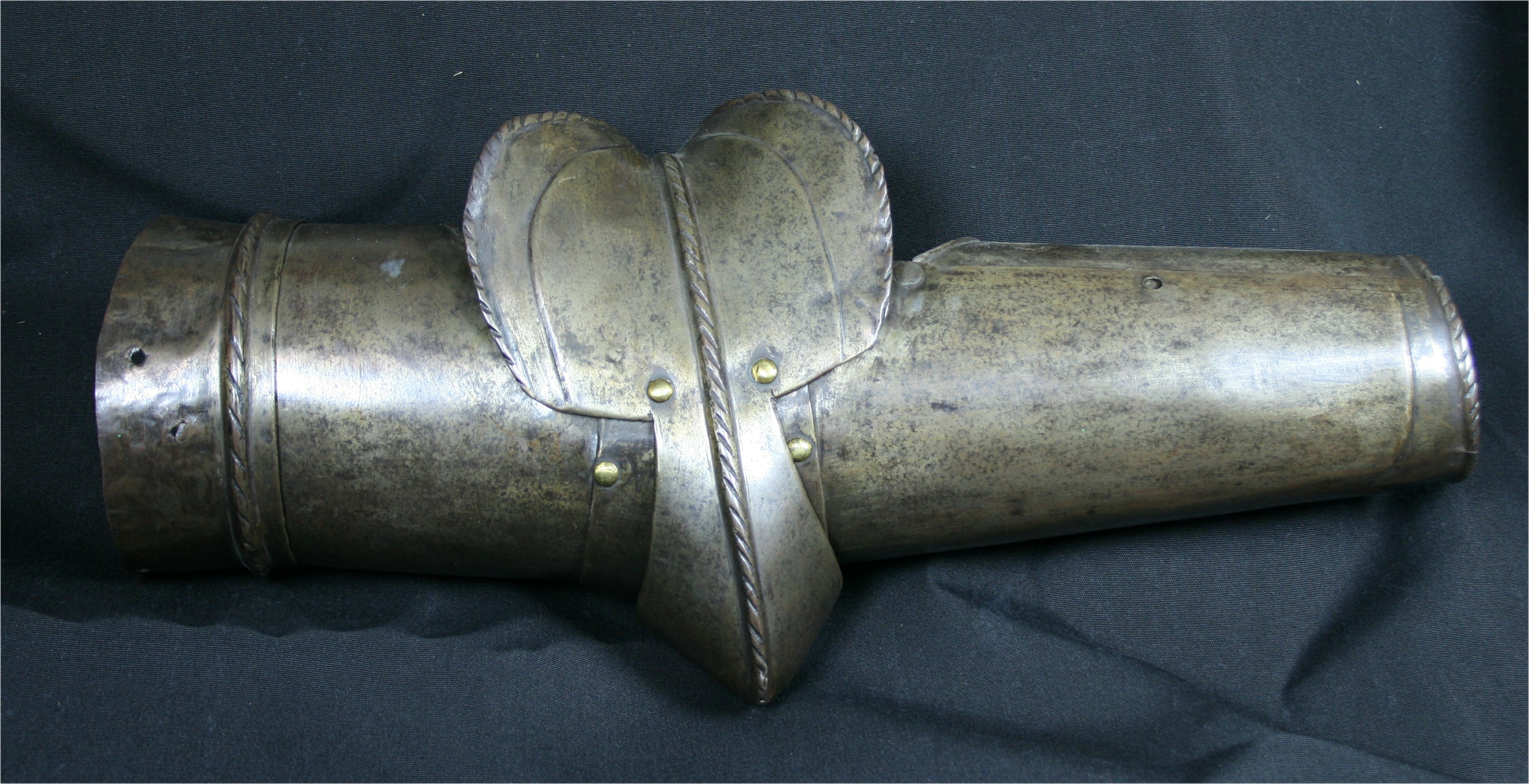

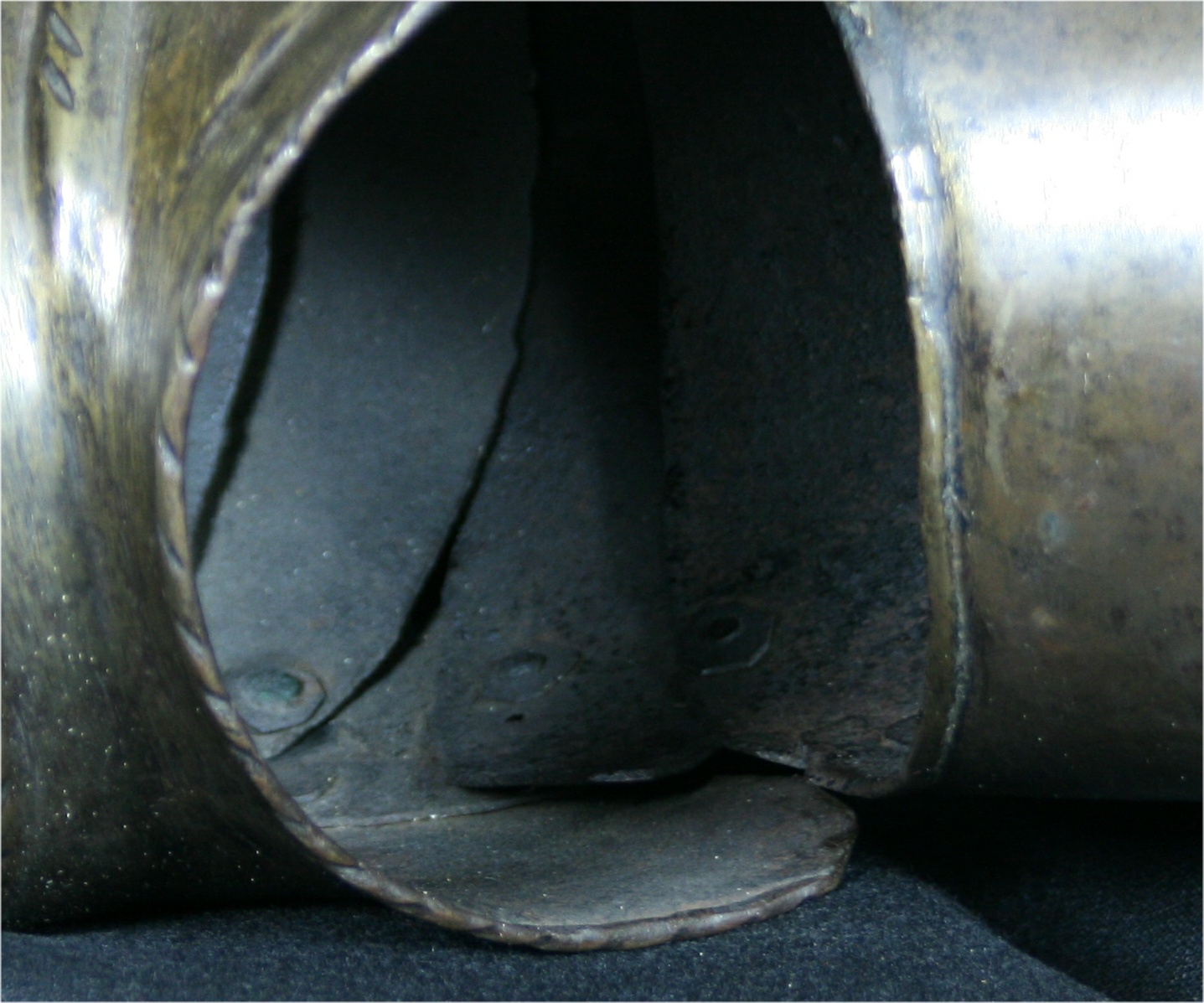

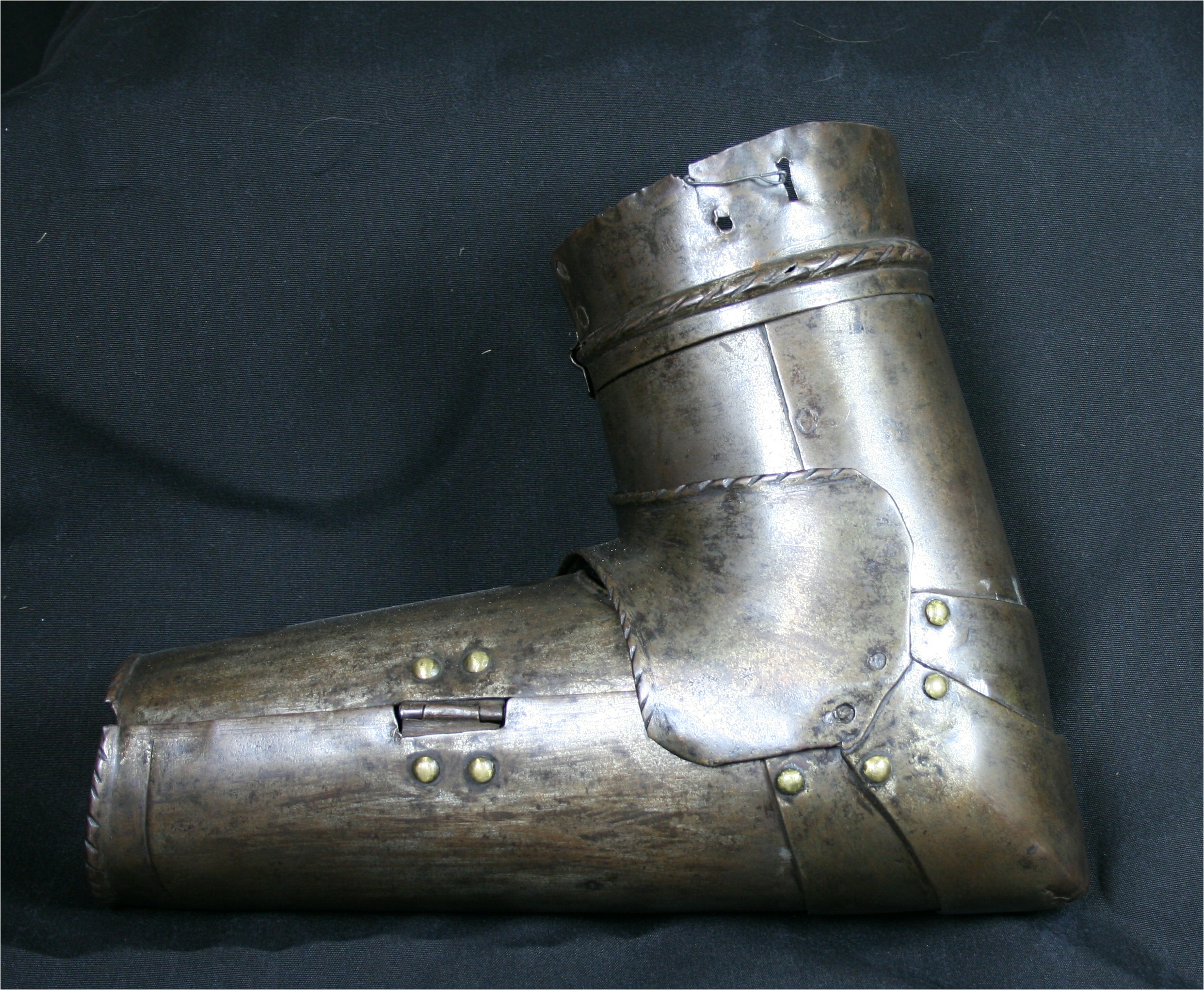

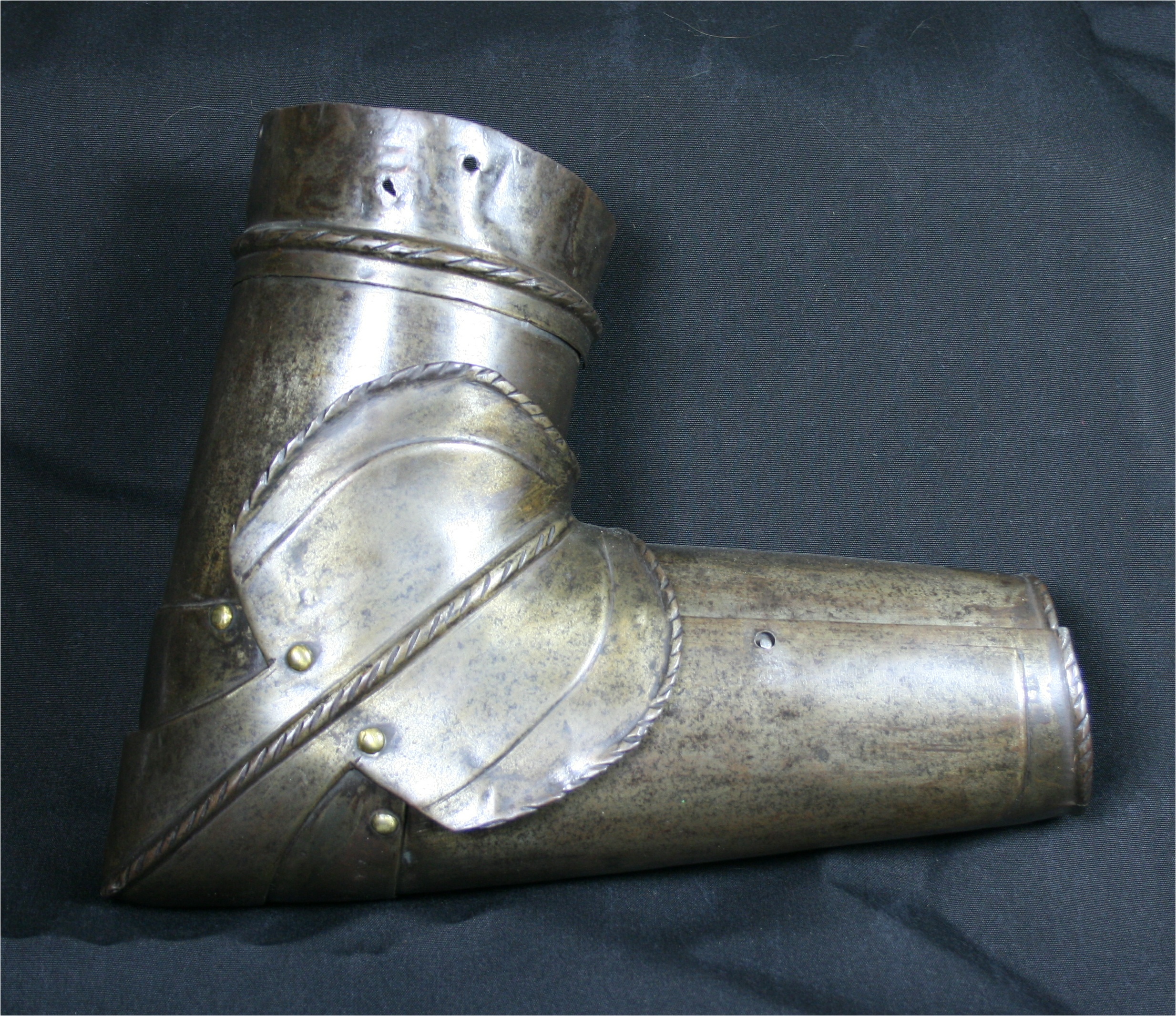

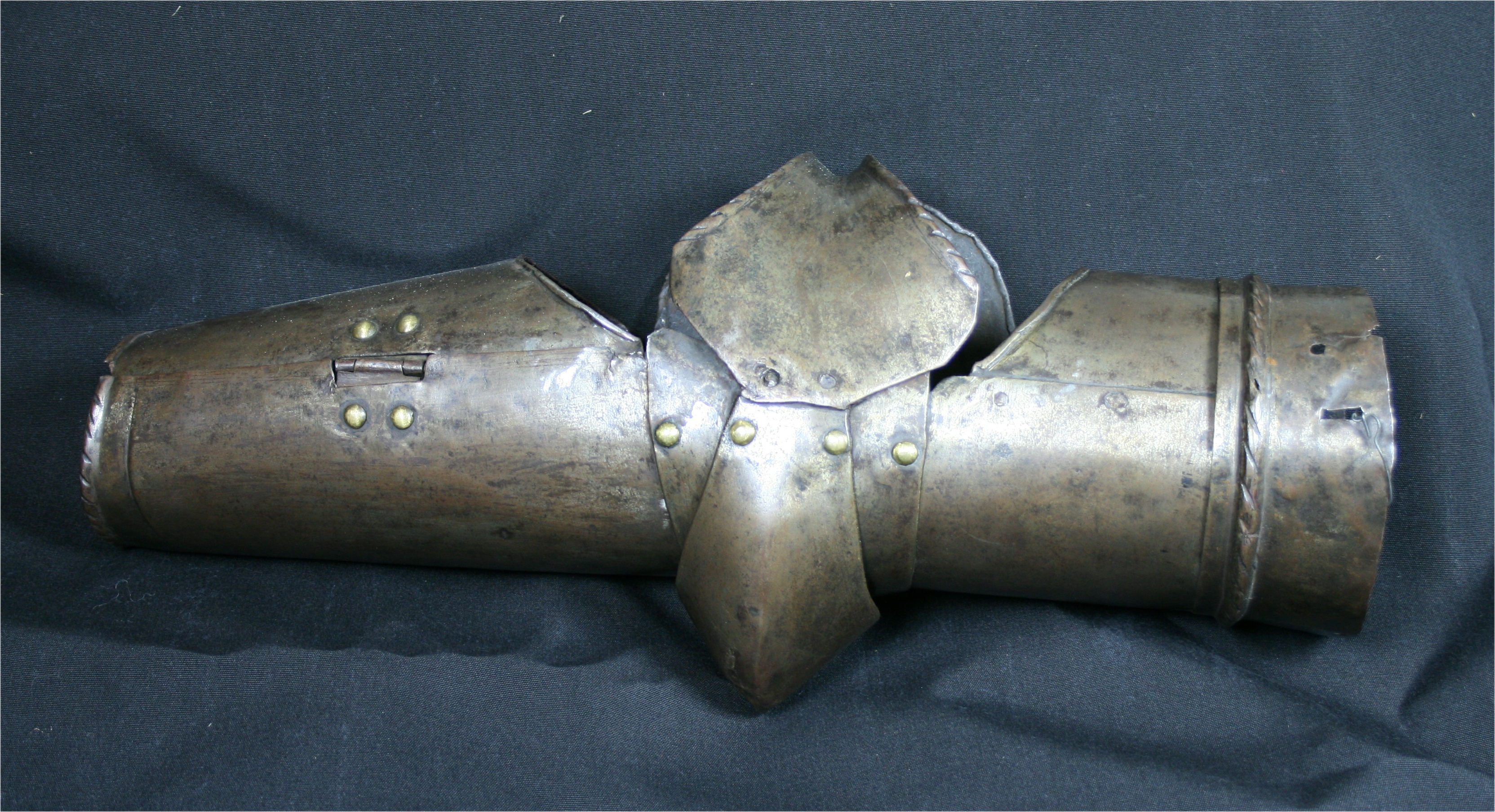

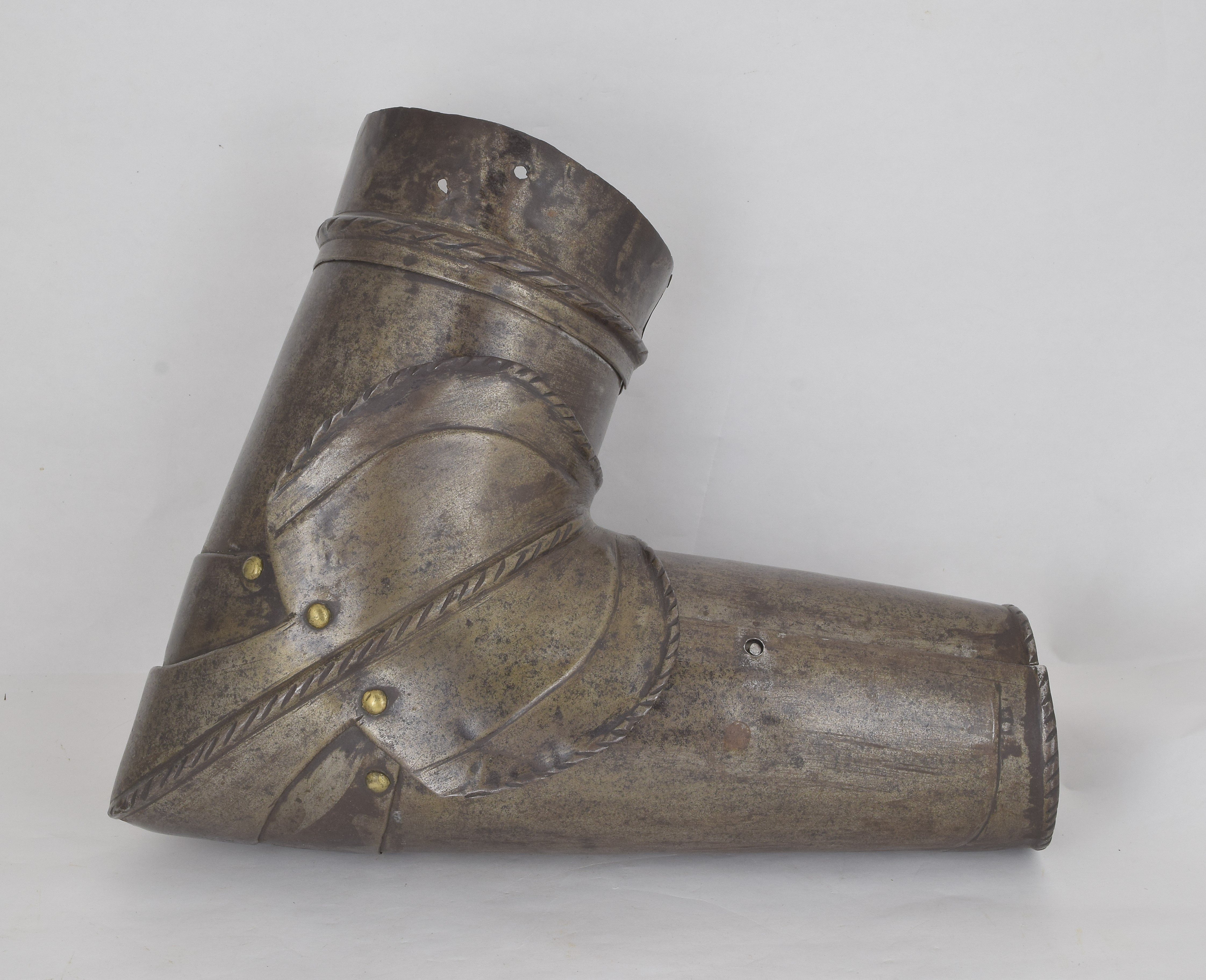

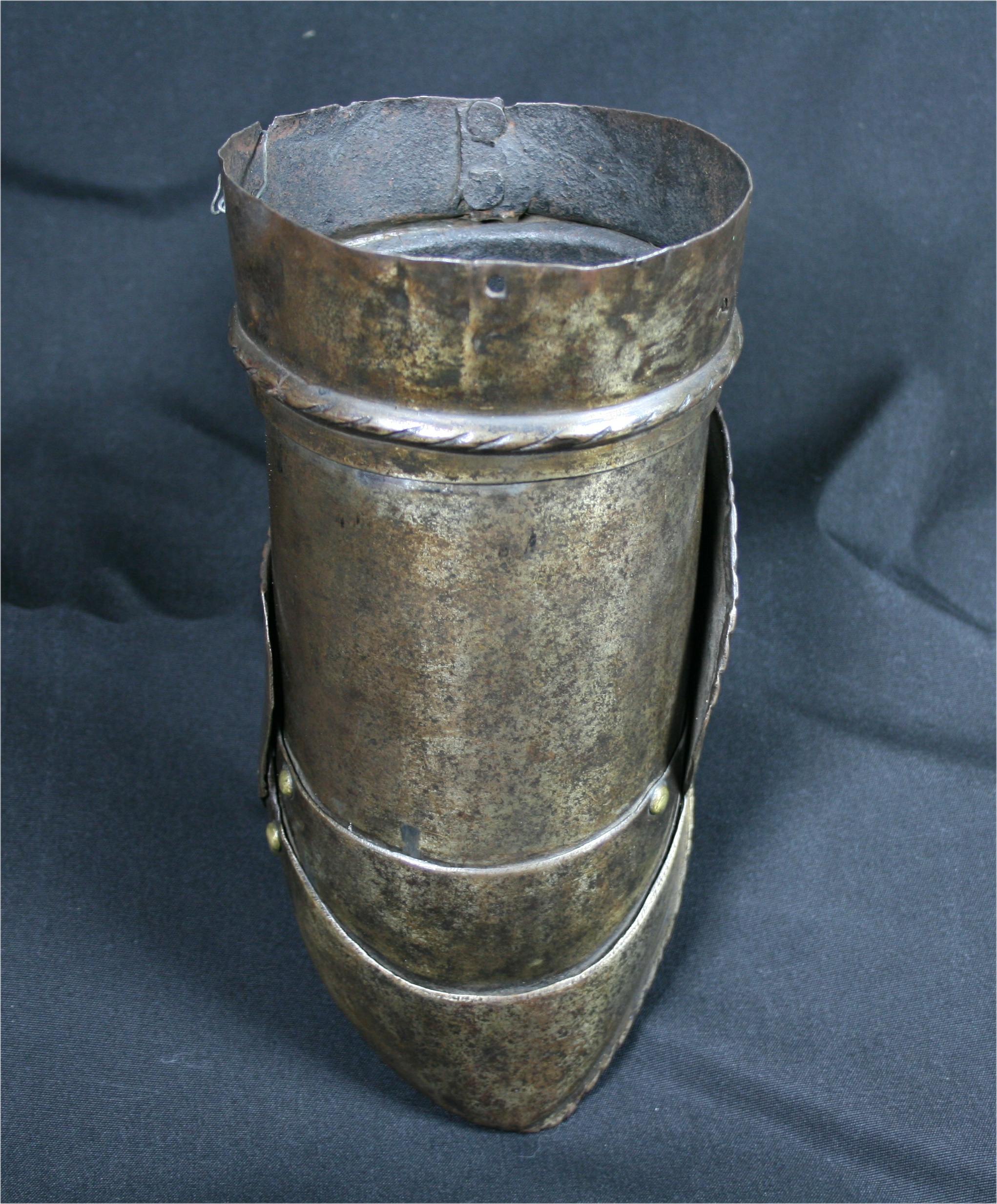

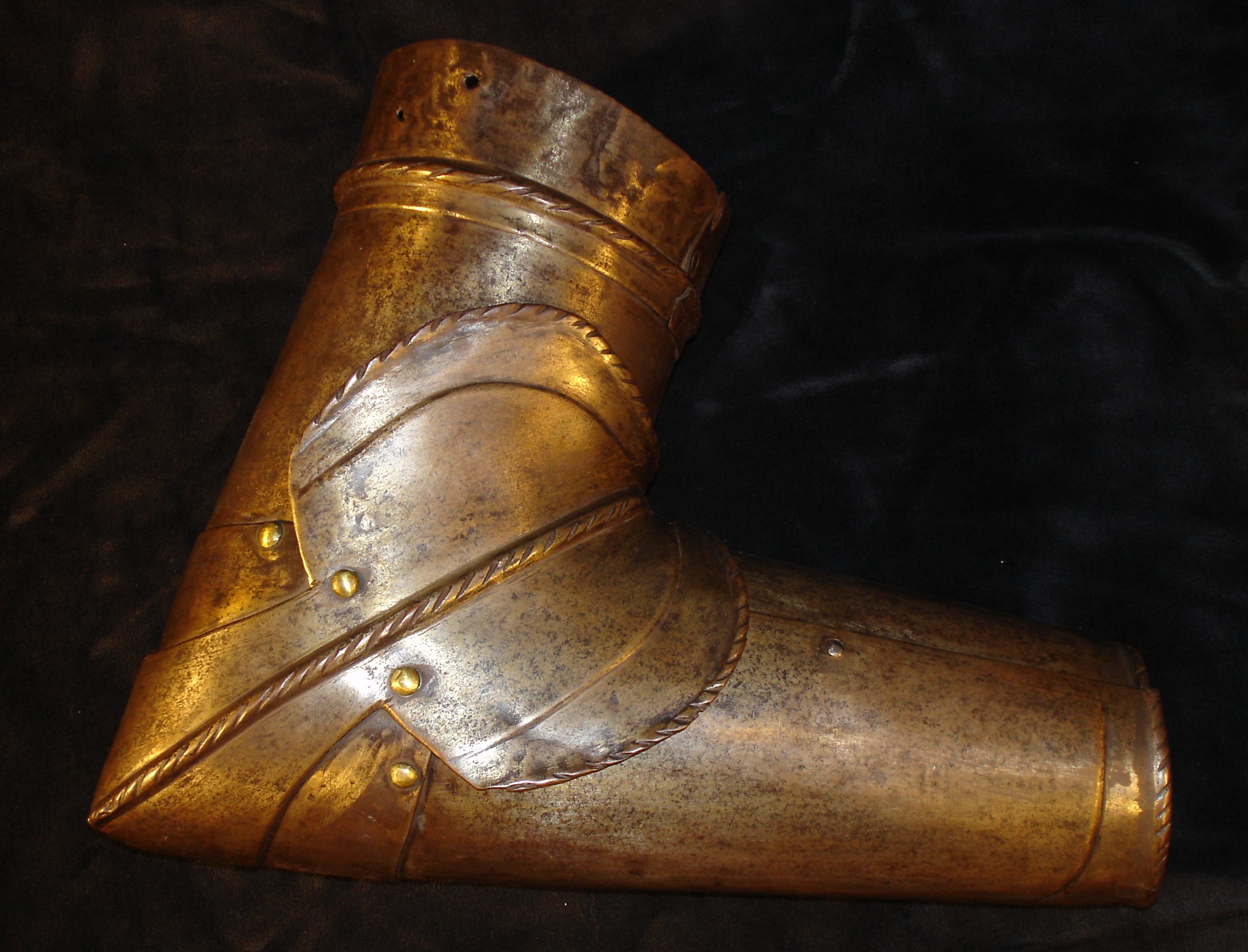

Formed of an upper and lower vambrace articulated by means of one lame below and one lame above to the bracelet cop. The upper vambrace includes a turning collar which was originally directly attached by a sliding rivet at the back and two leathers to the pauldron. Rolled and roped borders at the wrist and on the edge of the wing. Simple outward rolls at the inner edge of the upper and lower vambraces (at the elbow). Elbow of very pointed form with full bracelet wing. Horizontal raised and roped ridge on the outside from the point of the elbow to the center of the wing. Iron rivets with brass caps articulating the plates and attaching the hinge for the lower vambrace.

Turning collar 4 3/4' in diameter. Lower vambrace 9 3/8' long at the longest point.

Upper cannon .030-.050' thick, lower cannon more even .030-.040' thick.
