Maximilian Breastplate 1505-15

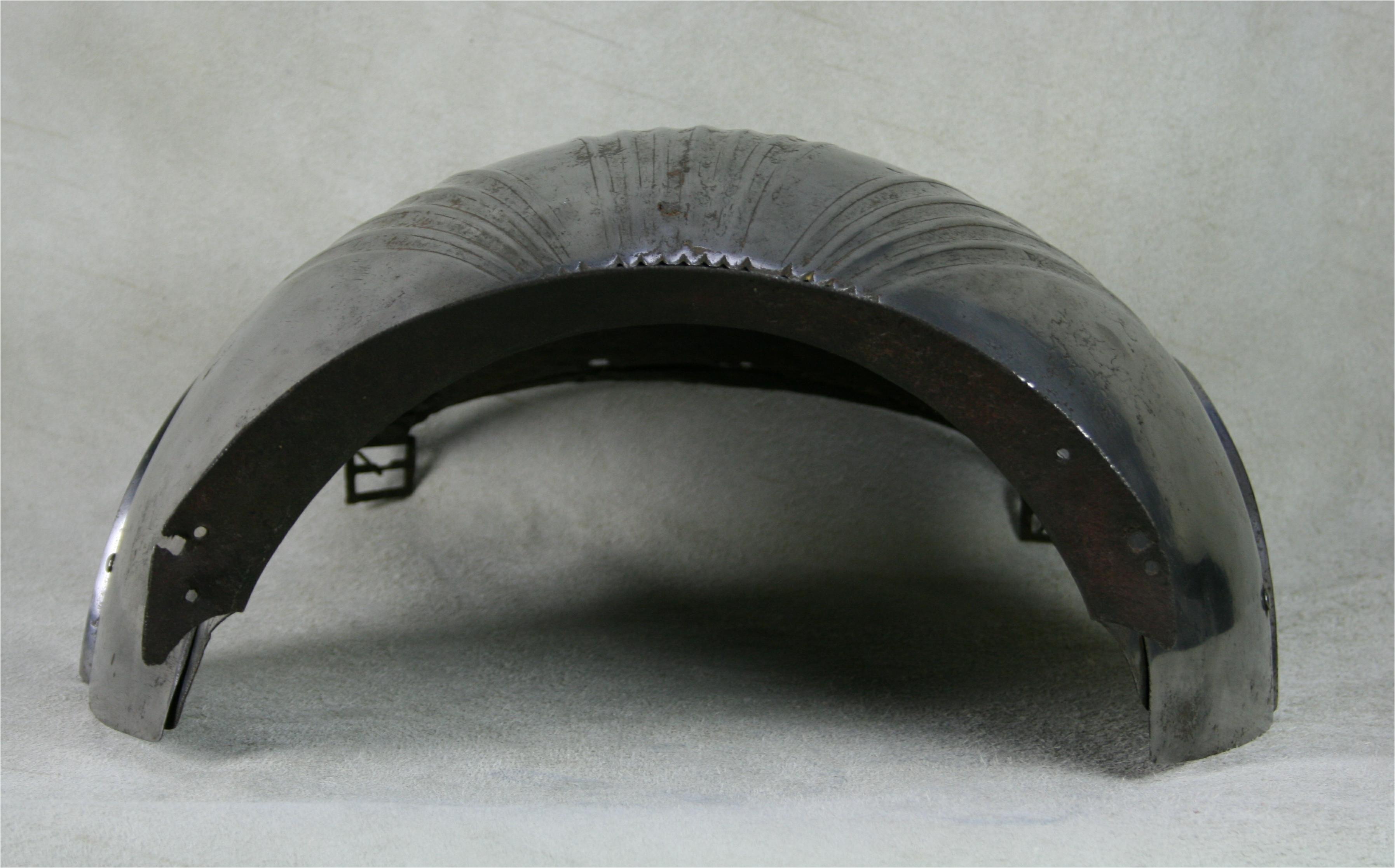

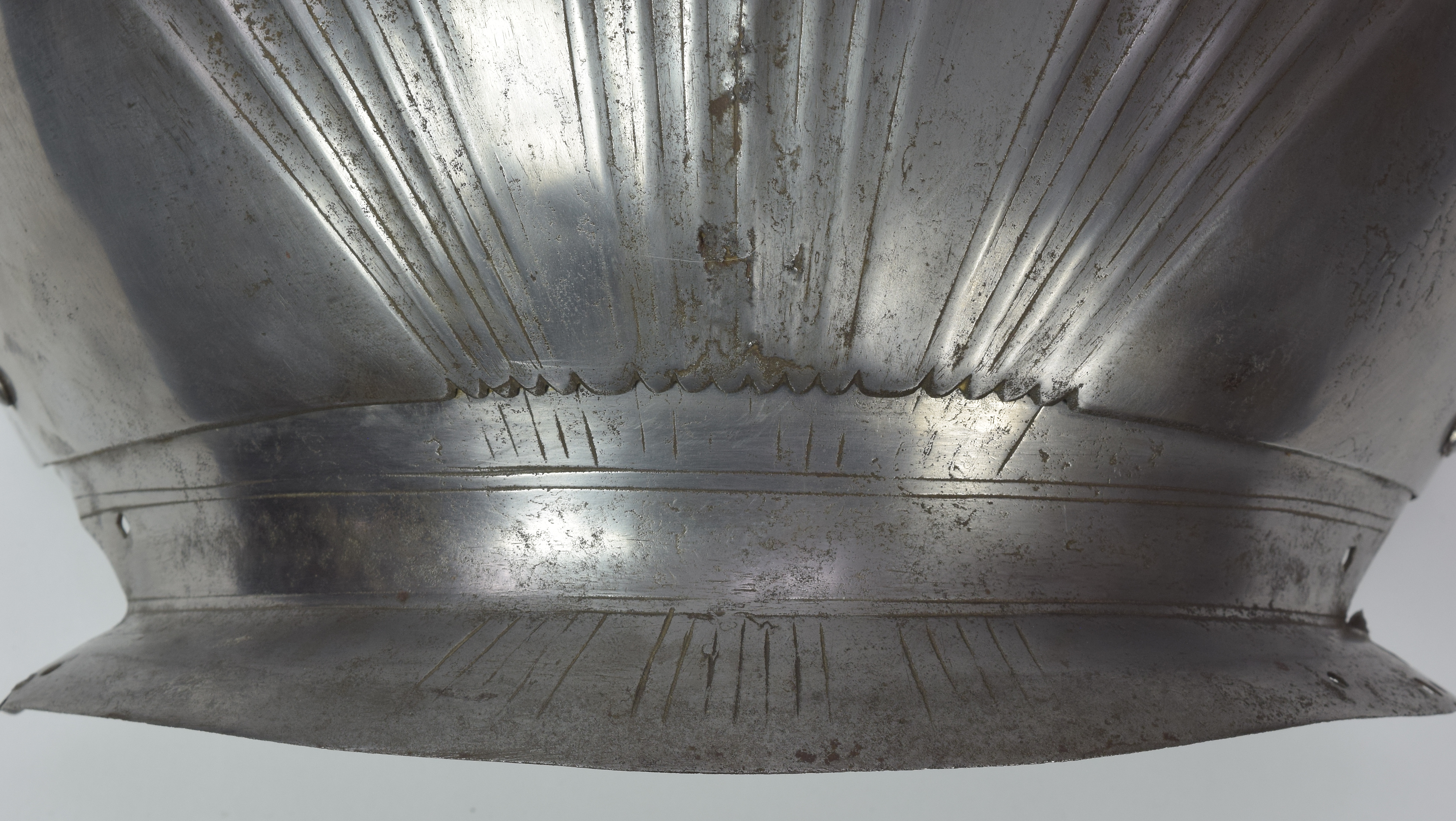

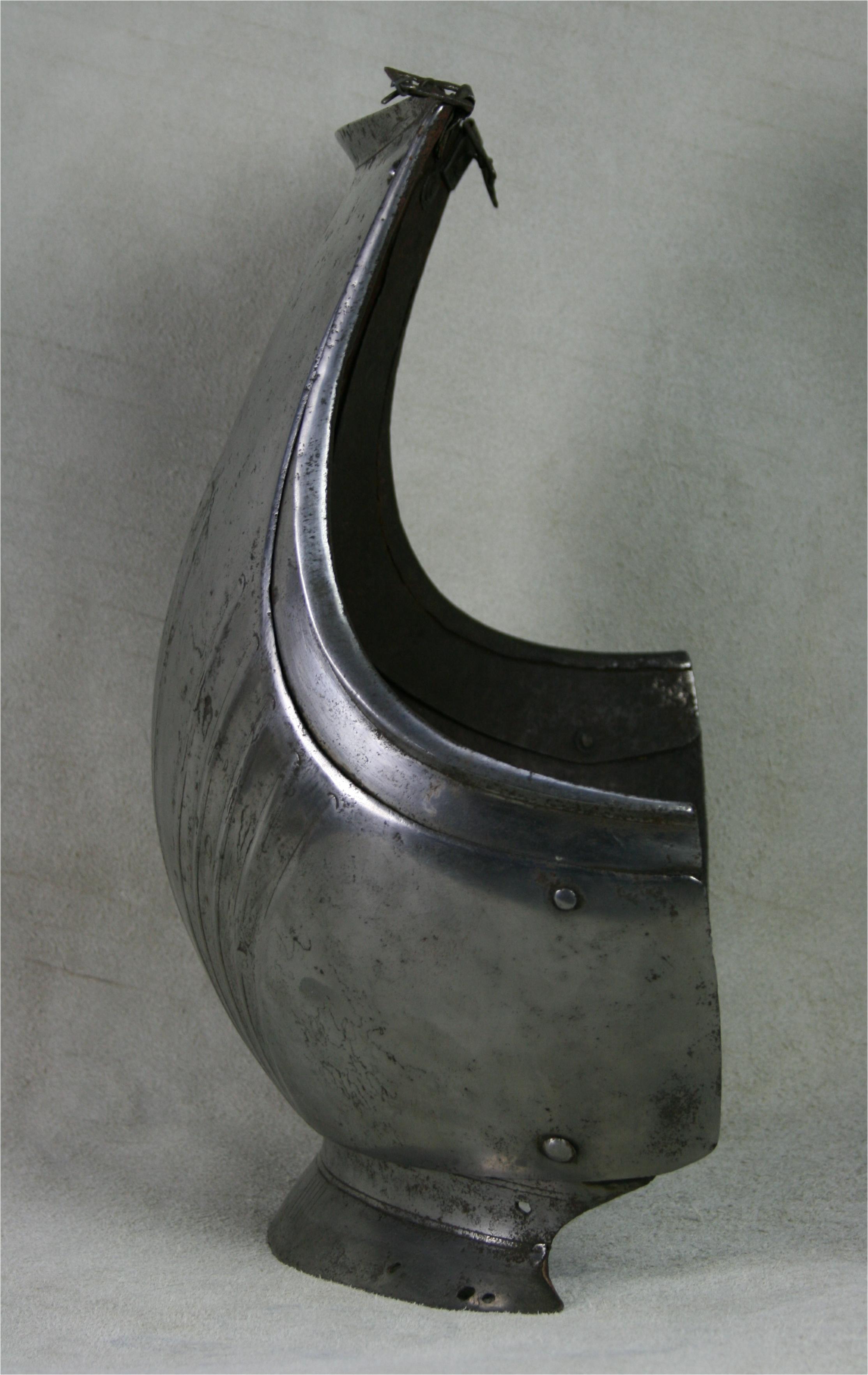

Of shallow globose form with three sprays of flutes radiating from the waist. There are seven flutes in the center spray and 5 in each of the side sprays. The outermost flute on each of the side sprays is really a step - a single sided flute. Neck with an angular inward turn. Arms with sliding gussets with similar angular inward turns. Wide waist lame. Fauld missing. Flutes accented by parallel engraved lines and semi-circular engraved ends. Waist lame with horizontal engraved lines and shallow engraved lines continuing the flutes from the breastplate and suggesting the flutes on the missing fauld. Waist lame cut out at the sides. Each gusset has a buckle at the top to secure the breastplate to the backplate. One of the buckles is likely original the other appears to be a well matched copy. The surface shows signs of rust, cleaning and delaminations. A very similar breastplate forms part of a half-harness in the Fitzwilliam Collection #M.1.3-1936 (cuirass catalogued as M.1.3.C-1936) identified as German, 1510.
Measurements: width at the chest under the arms at the corner of the gussets 13 3/4 in. width at the waist 9 in. (given the cut into the edge of the waist, it is wider than this at the real waist) width at the bottom of the main plate corner to corner 10.4 in. width of the main plate at the top 8.6 in. width at the top including the gussets 9.8 in.
Thickness at the sides .030-.042 with at least one spot on the left side down to .020, top edge app. .050 (varying between .040 and .065, but mostly .050-.055, at the top of the central flute spray .075-.095, the thickest spot in the center generally .090-.120, mostly .095-.10. The thickness is current after some significant loss and cleaning to the outside (some of the engraved lines are nearly erased), it would have been measurably but not significantly thicker. Weight 4 pounds 3.8 oz (1930 g).
