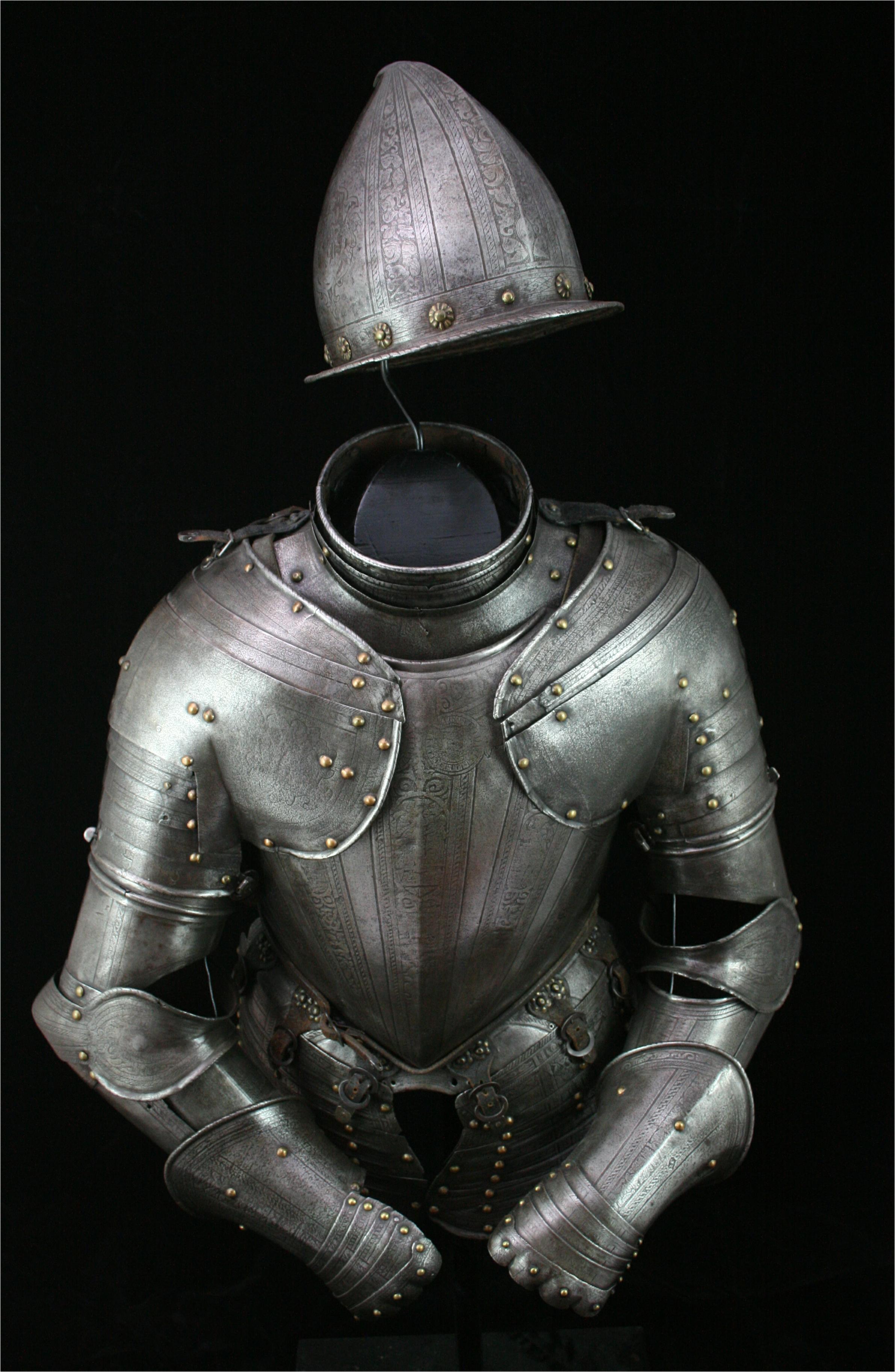

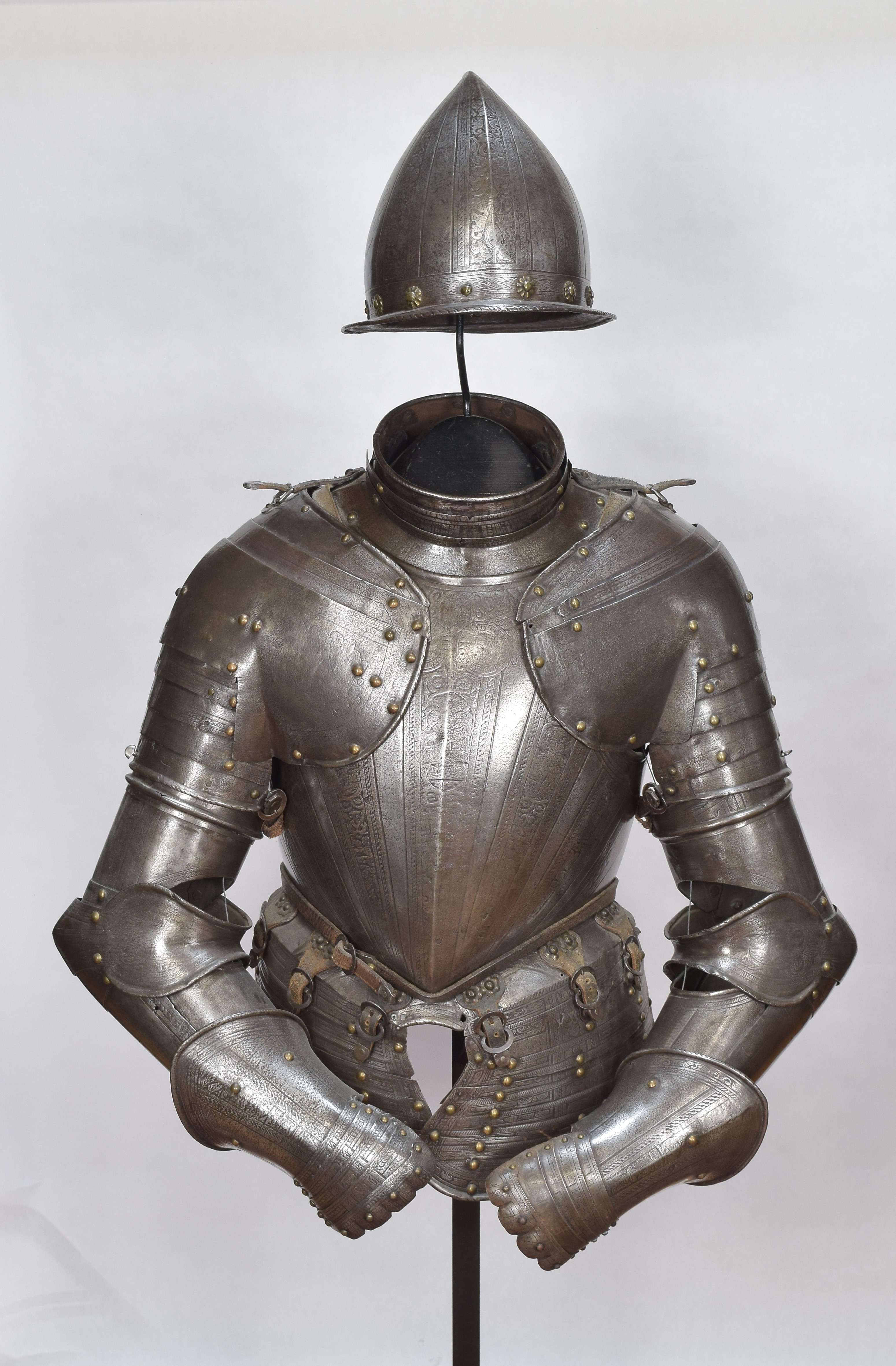

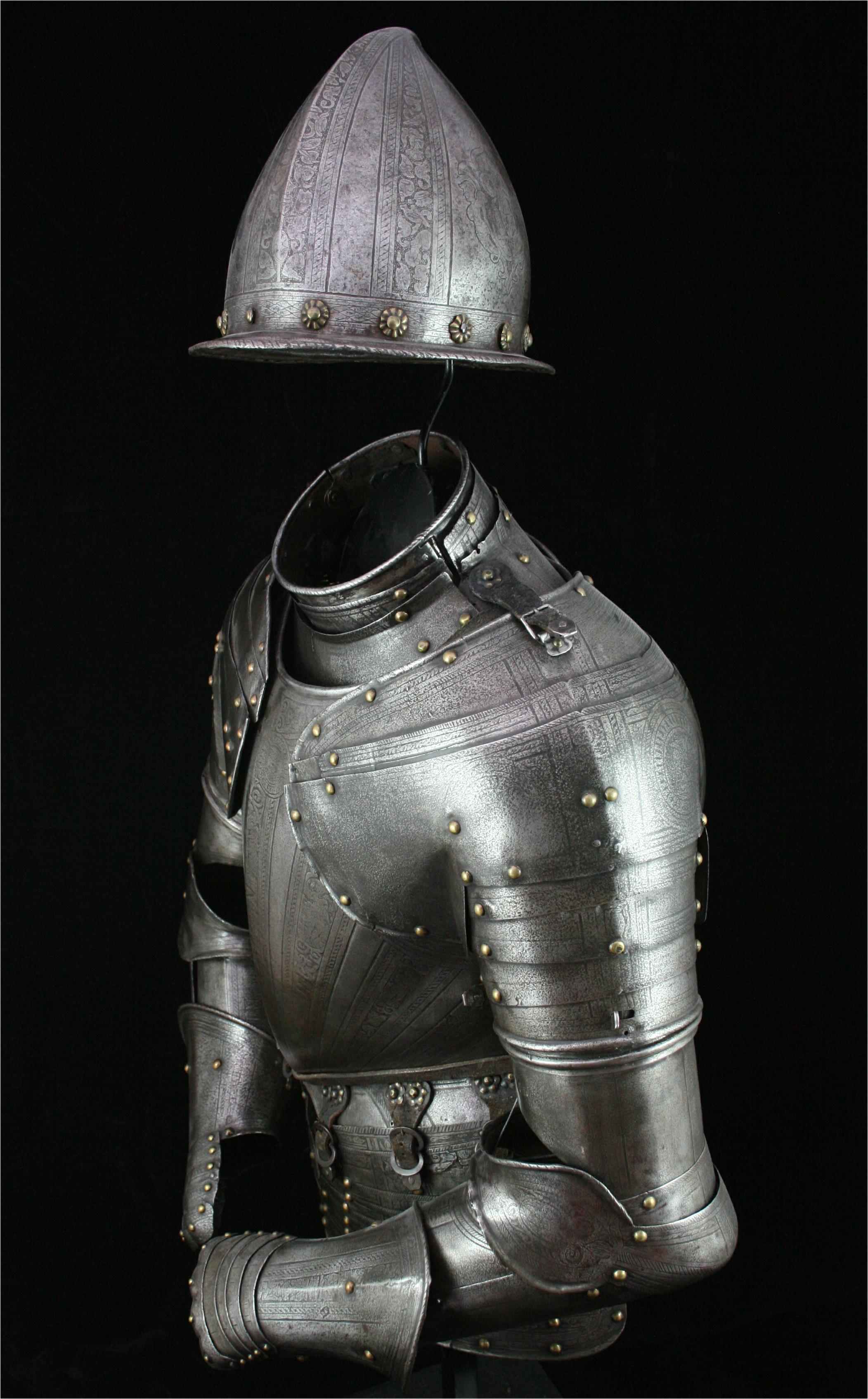

Italian Half Suit 1610

Etched in the 'Pisan' fashion. Comprising a cabasset, gorget, breast, back, tassets, pauldrons, arms and gauntlets.

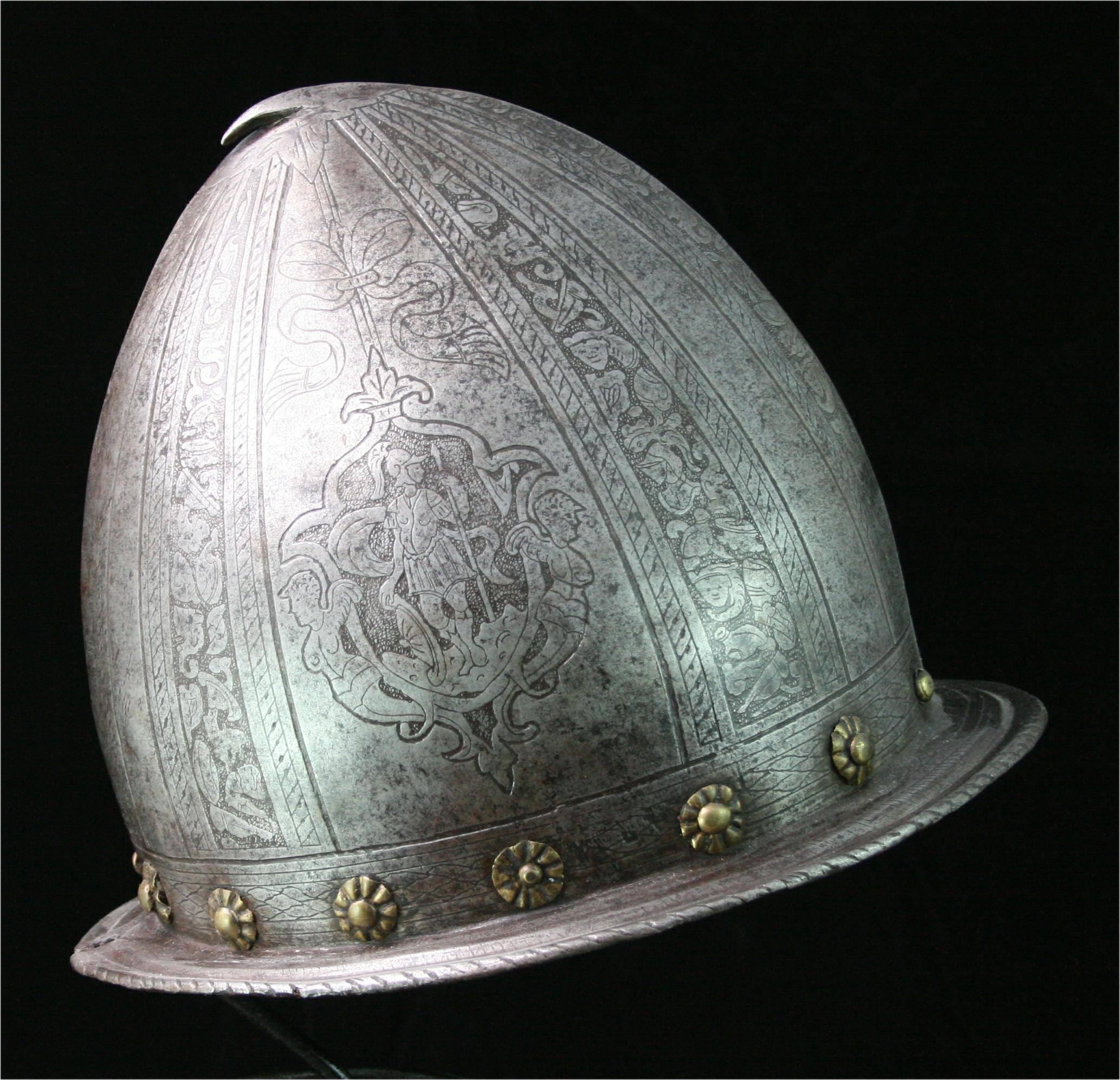

Cabasset: Almond shaped skull with small stalk at the top, central crease and narrow flat brim. Etched in the 'Pisan' fashion. Brim with inward turned roped border with a narrow recess. Just above the brim there is a line of original iron lining rivets - most retaining original brass caps with decorative washers. Some cloth lining band remaining between a few of the rivets. Point with a nice stalk, bent over to the back. Etched with 6 bands of trophies. Each side decorated with a central panel containing an armoured figure in antique style flanked by angels.

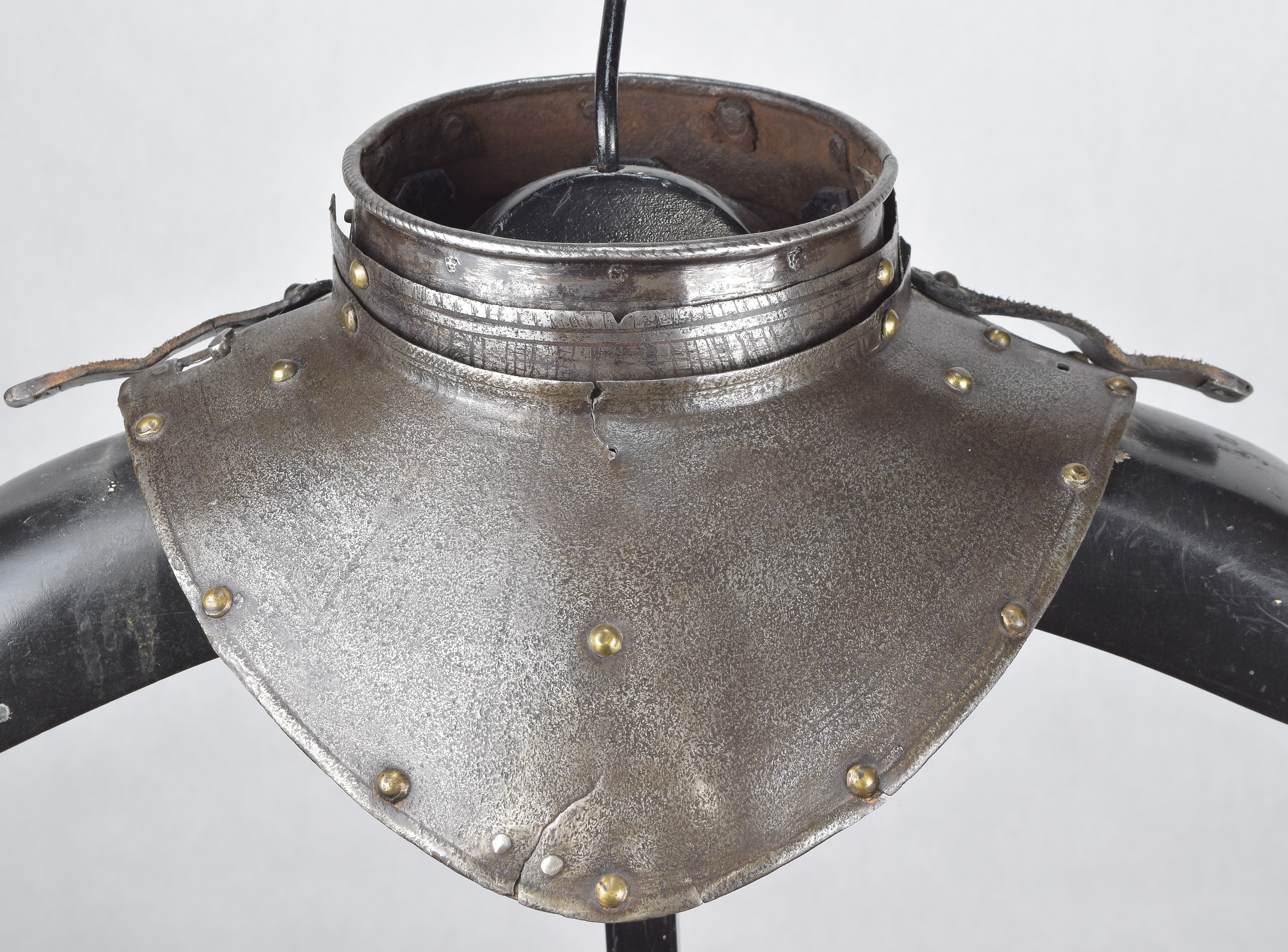

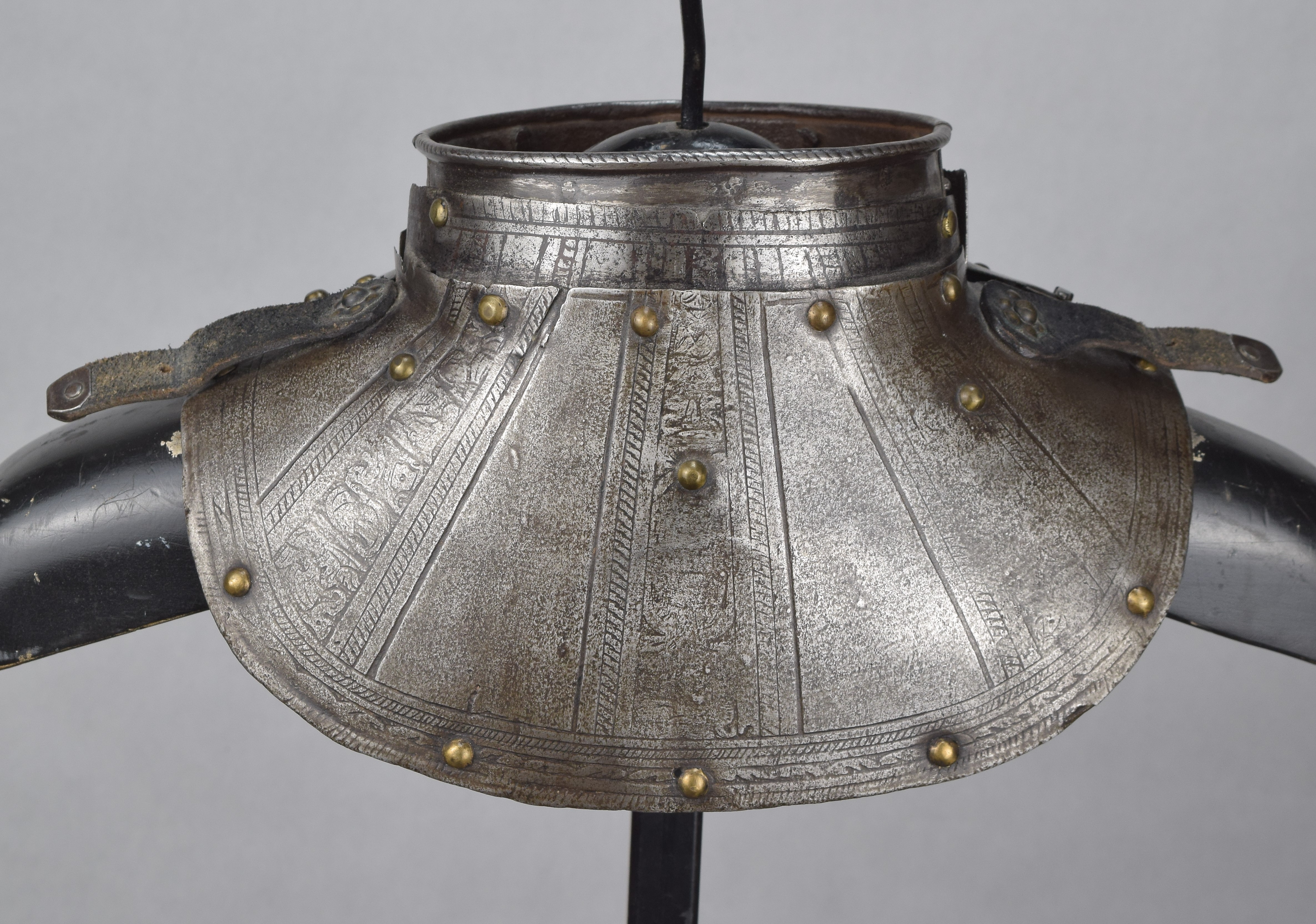

Gorget: Etched in the 'Pisan' fashion. Typical Italian straight necked form. Formed of 3 pieces front and back, the main plates with a rolled lower edge and flared at the neck to match the neck lames. Main plates joined by a rivet on the left and a pin engaging a keyhole slot on the right. Upper neck lames joined by a hinge on the left and a pin on the right. Neck plates associated and etched to match. Originally the plates would have been attached with three leathers front and back, now riveted through leather and false rivet holes.

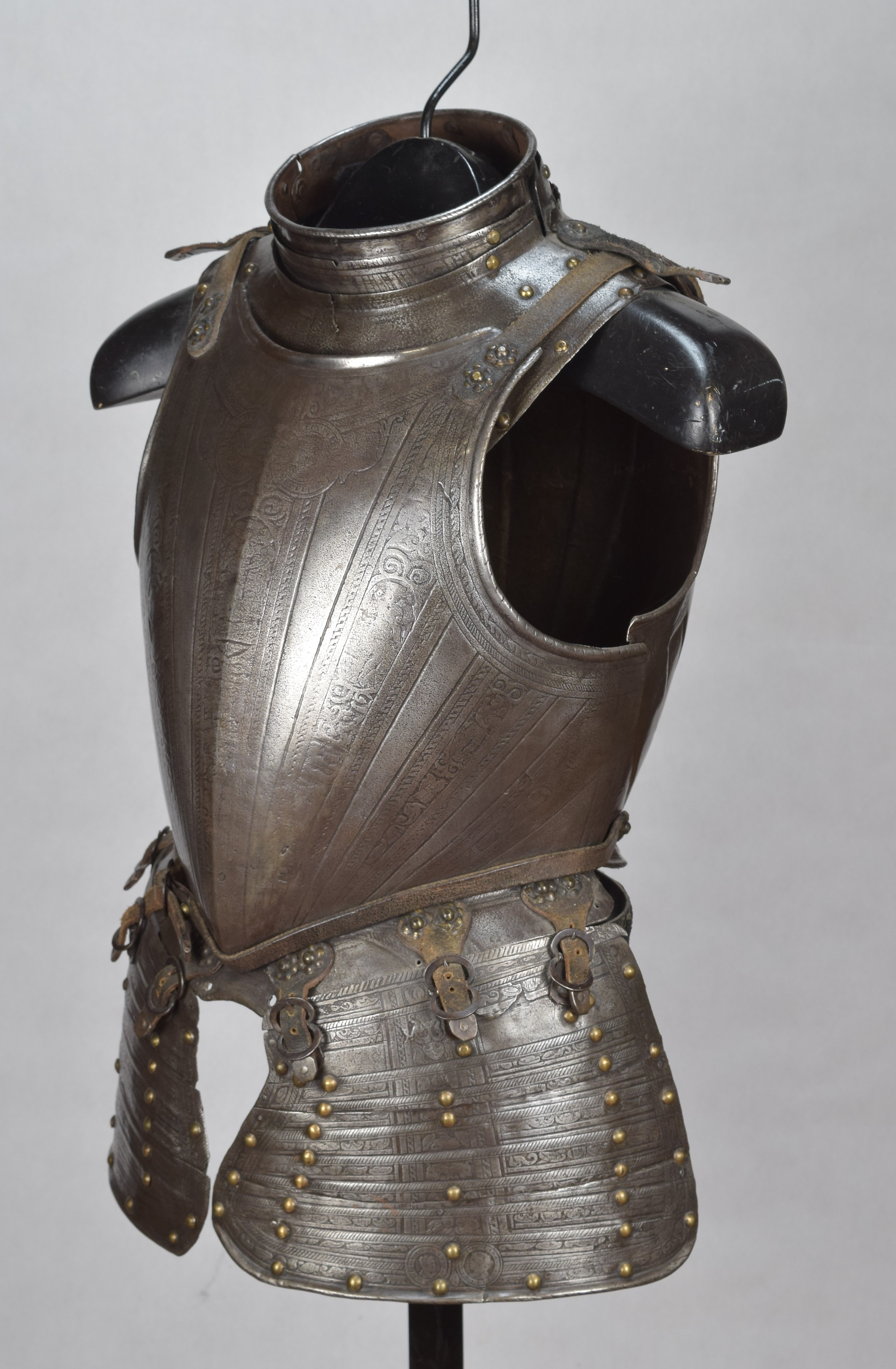

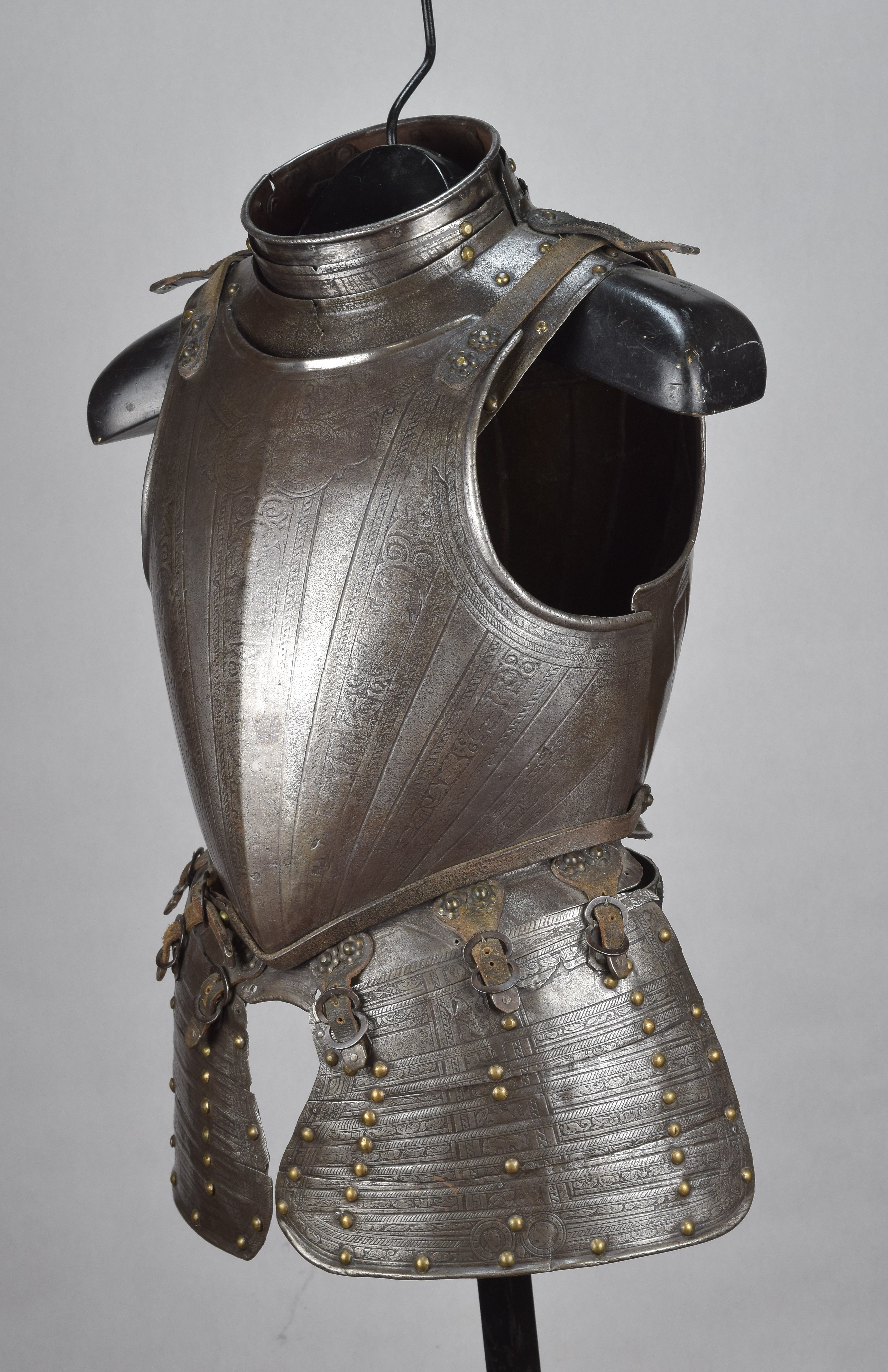

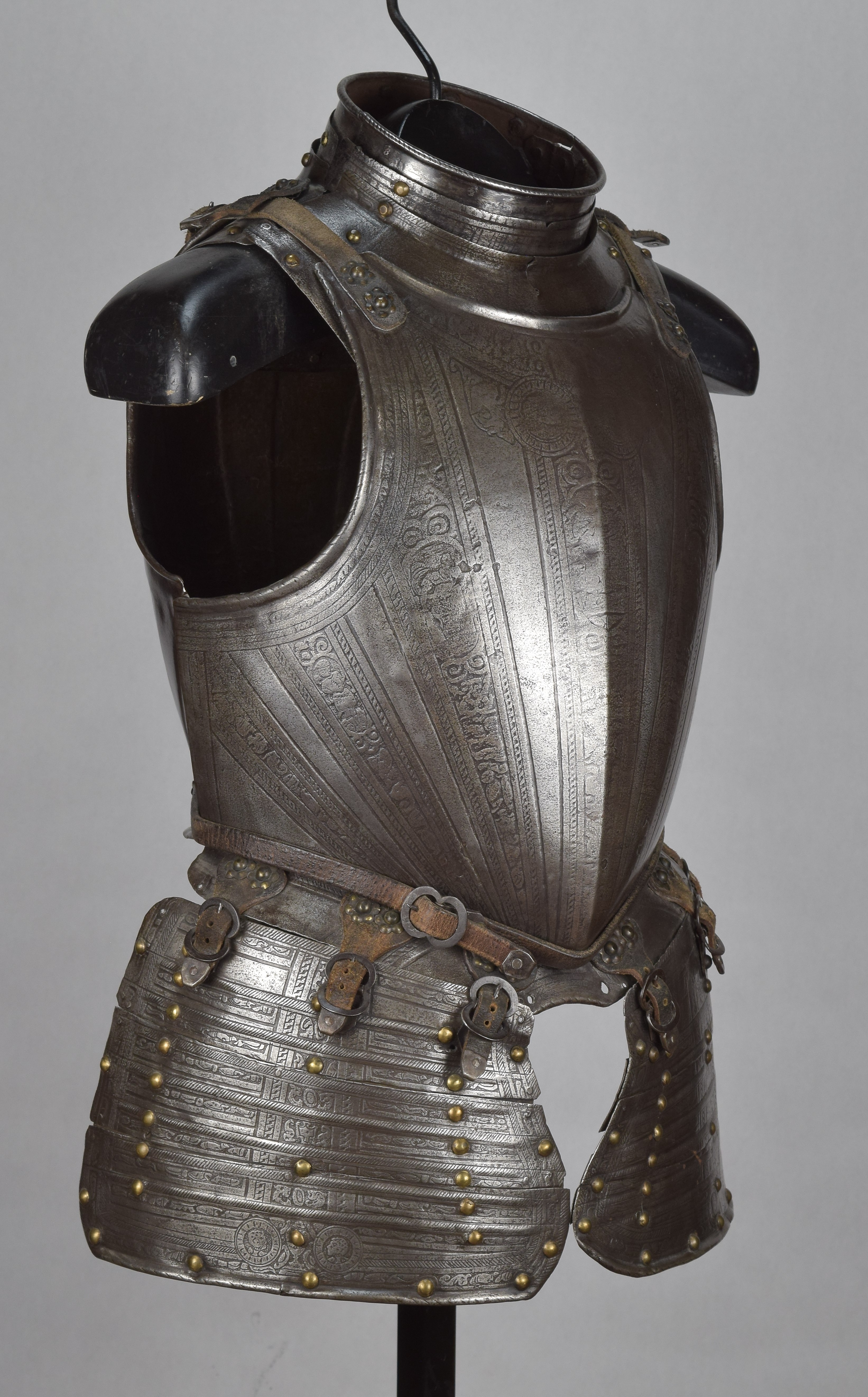

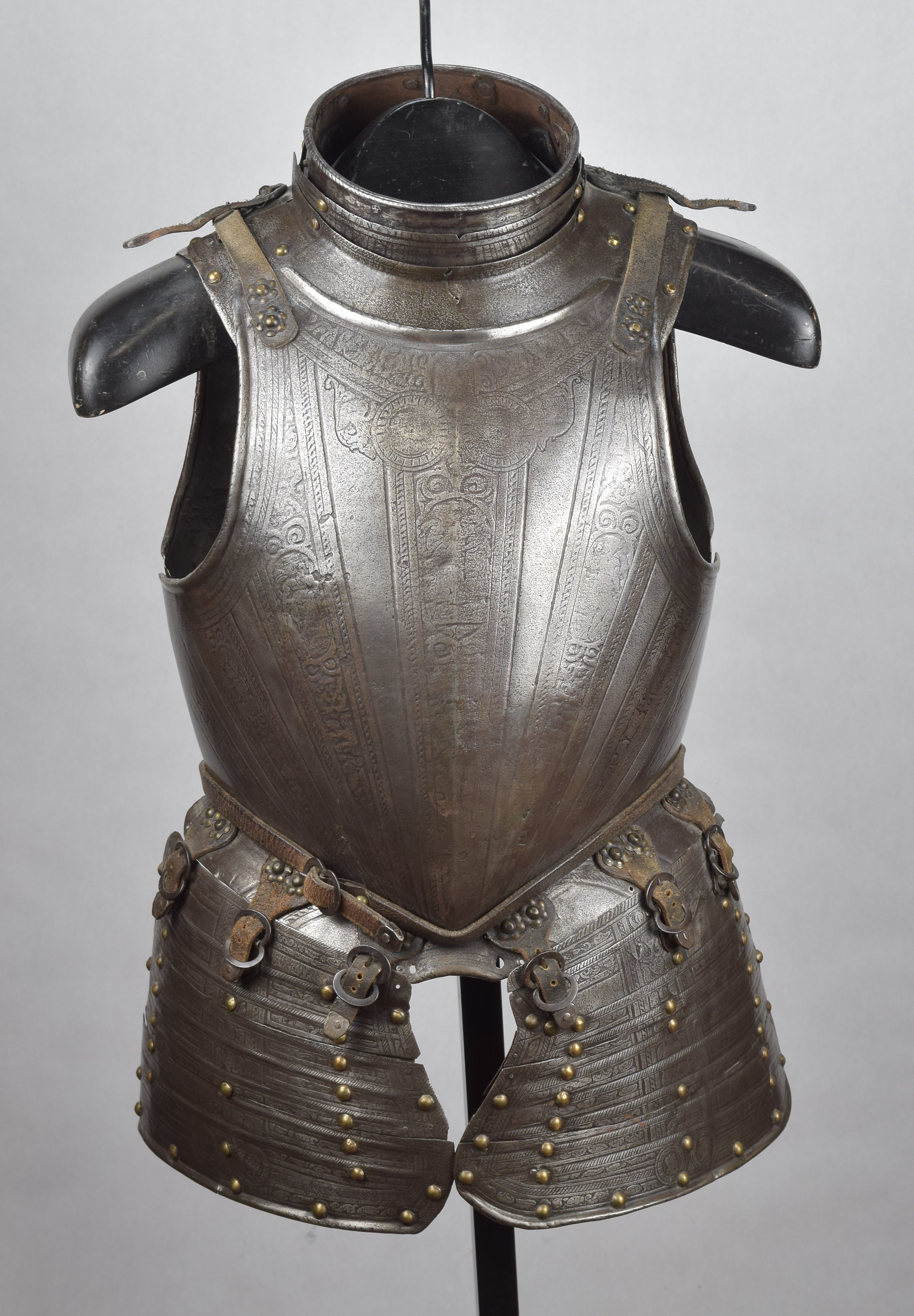

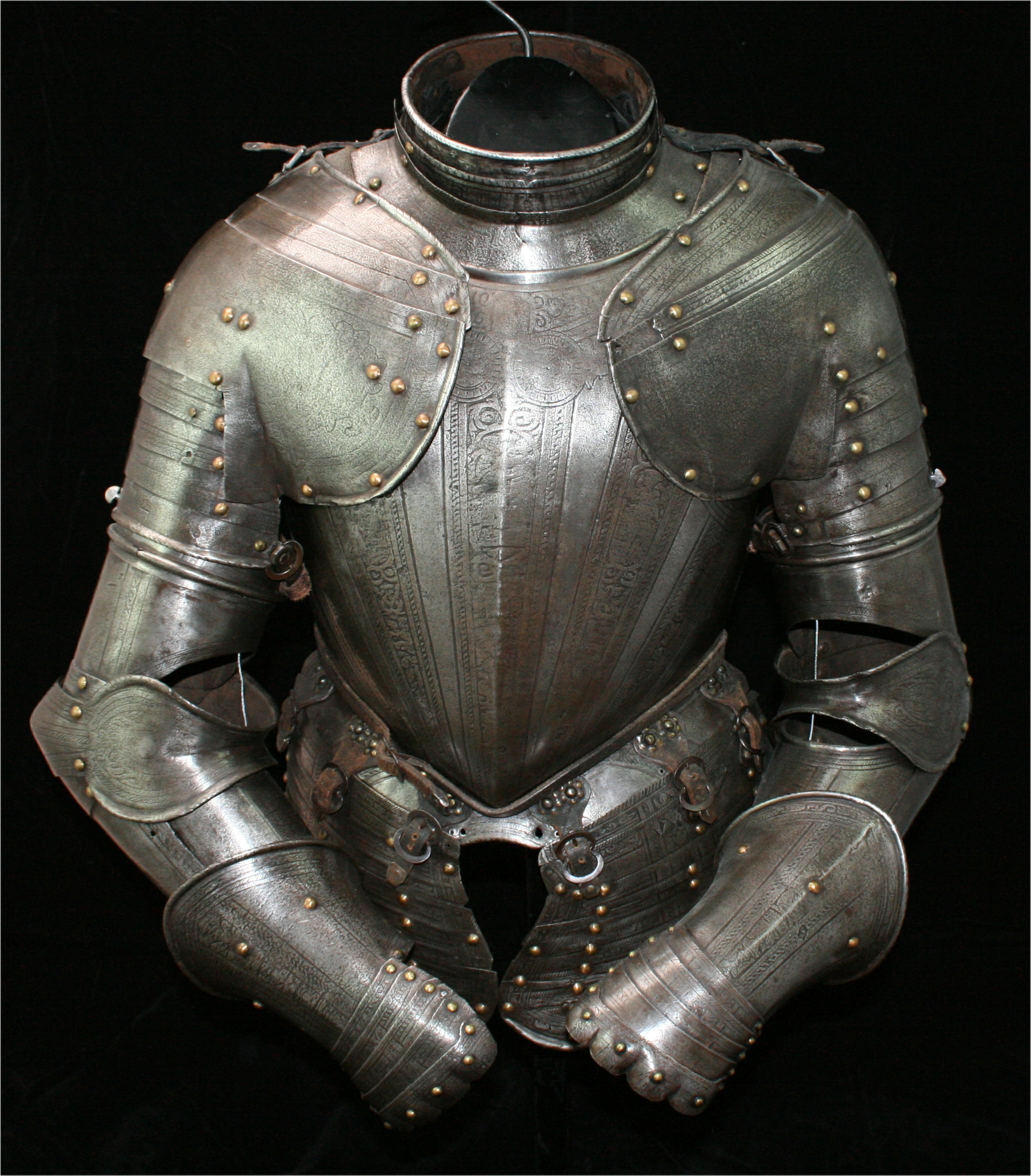

Breastplate: Etched in the 'Pisan' fashion. Formed of one plate with integral flare at the waist, inward turned rolls at the neck and arms and typical shallow peascod form. Etched overall with seven wide bands of decoration consisting of a central region with figures, trophies and foliage borded by three bands on each side, the central one roped. The central band with two medalions at the neck.

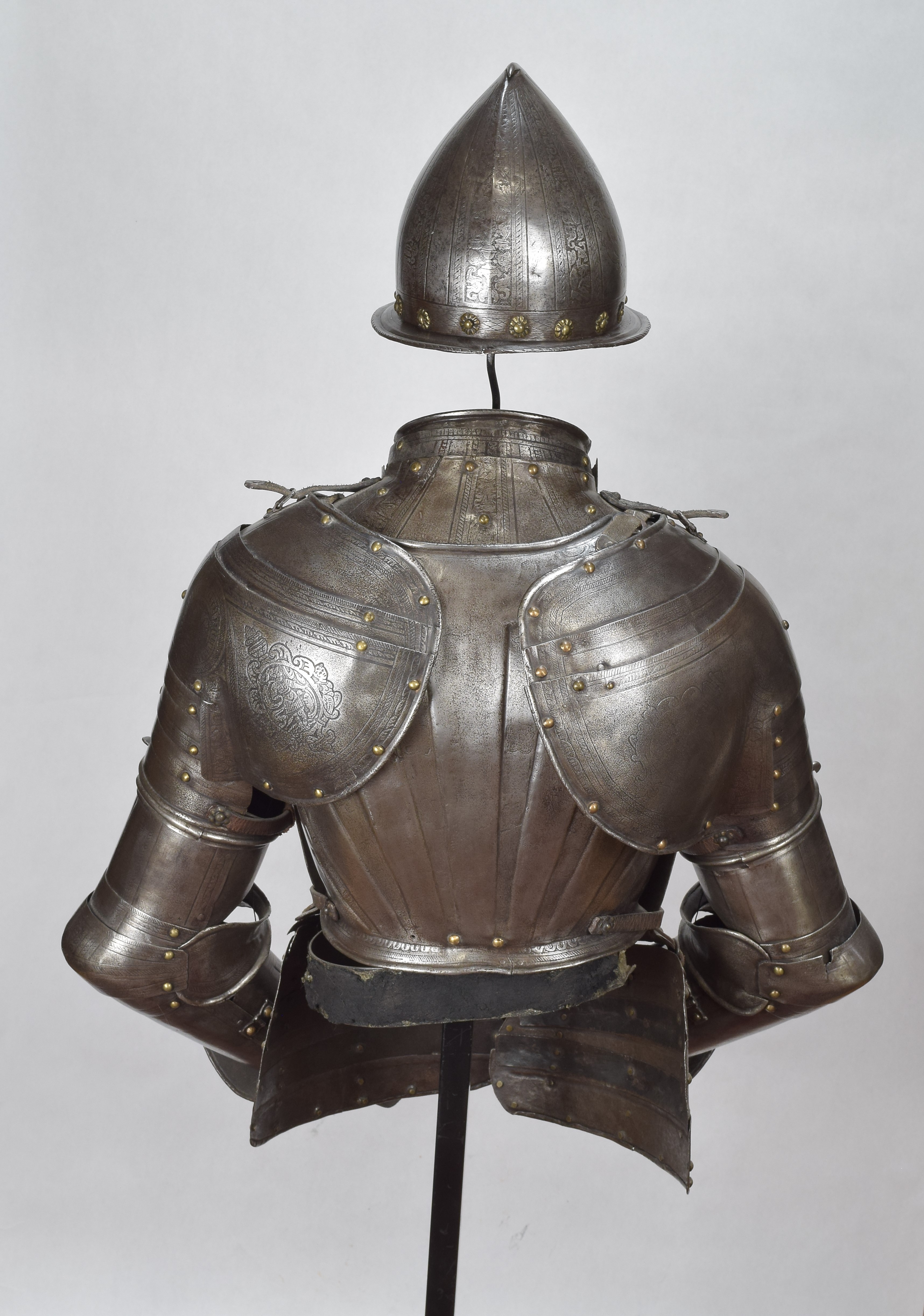

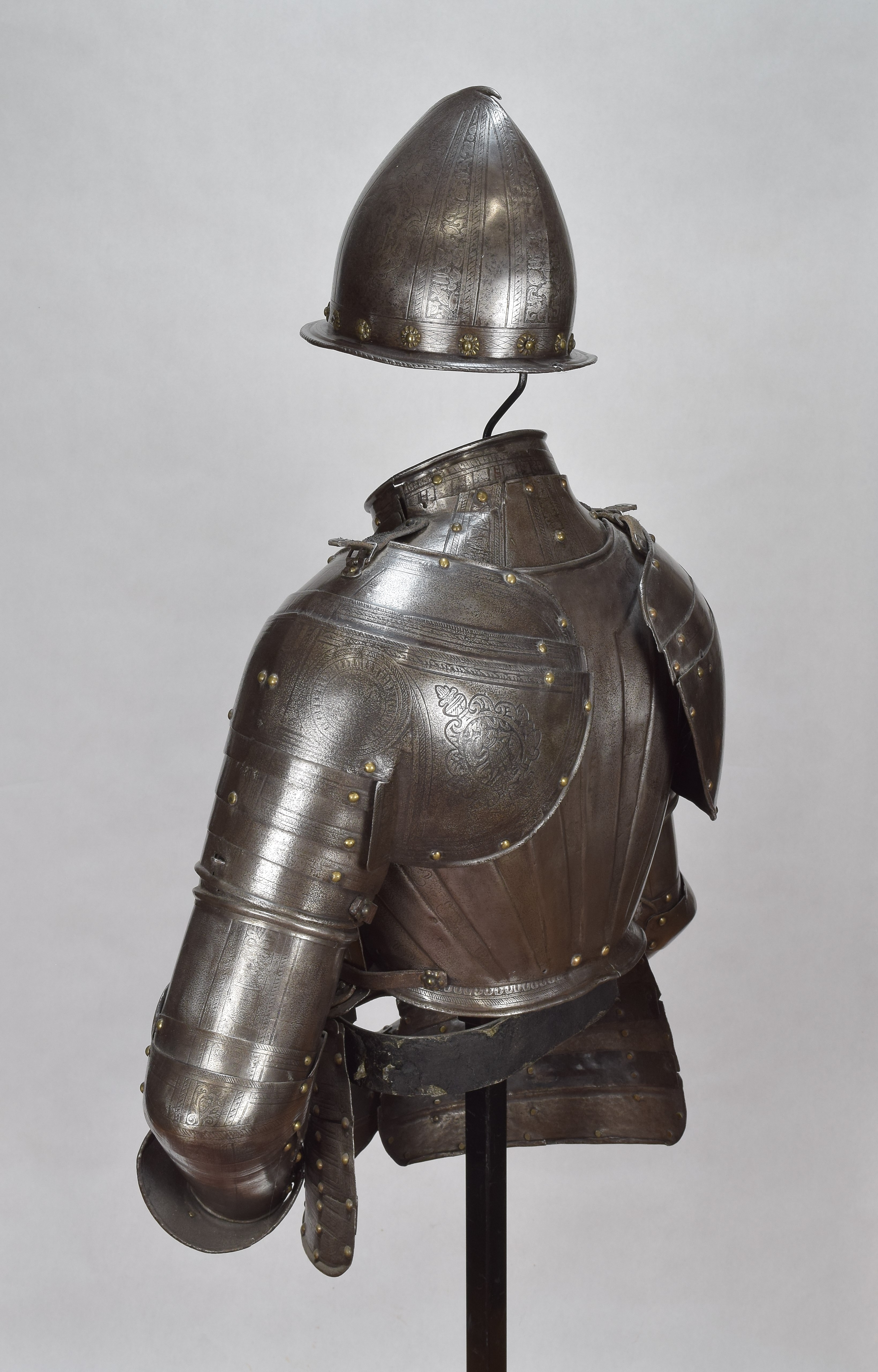

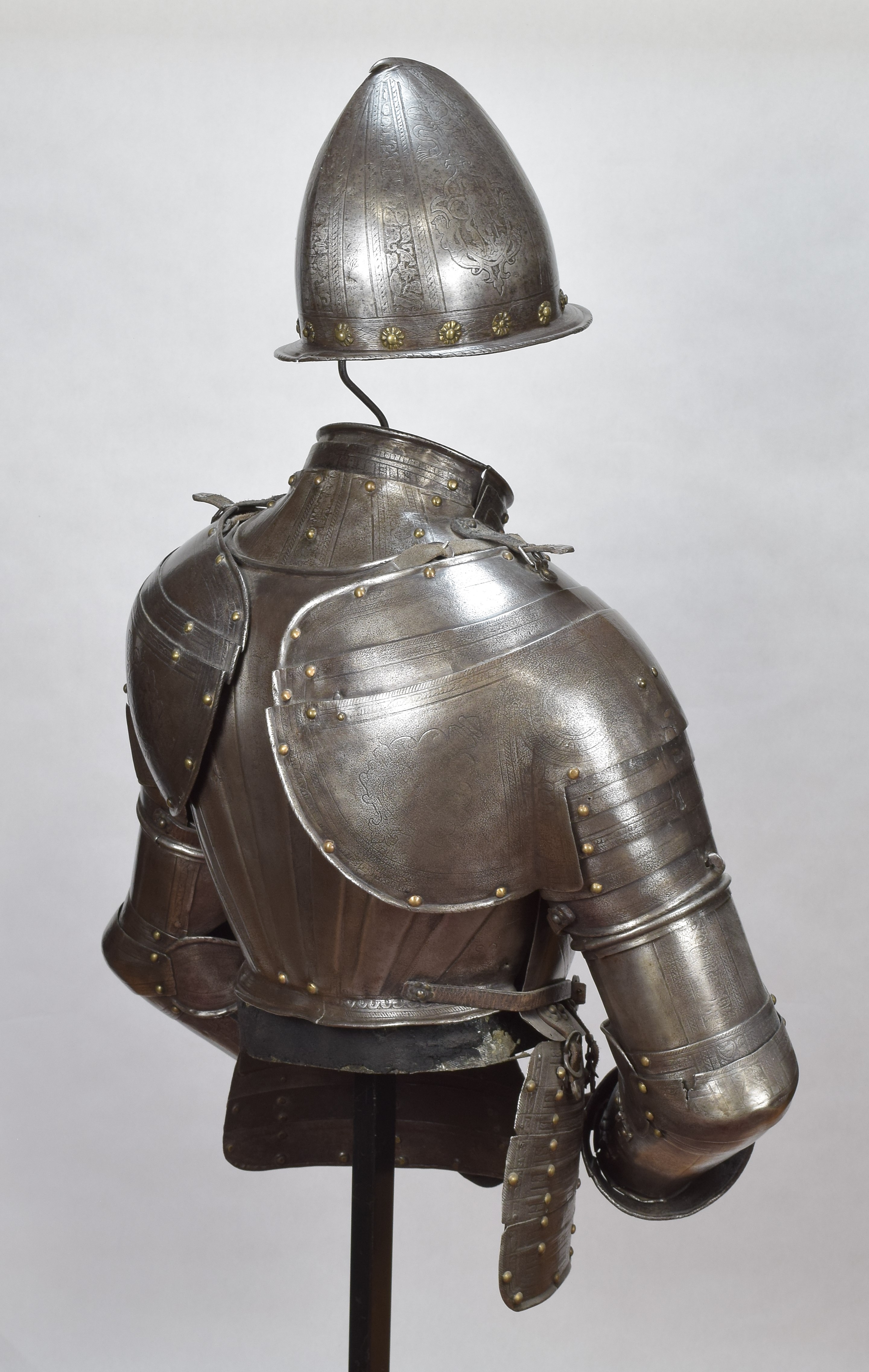

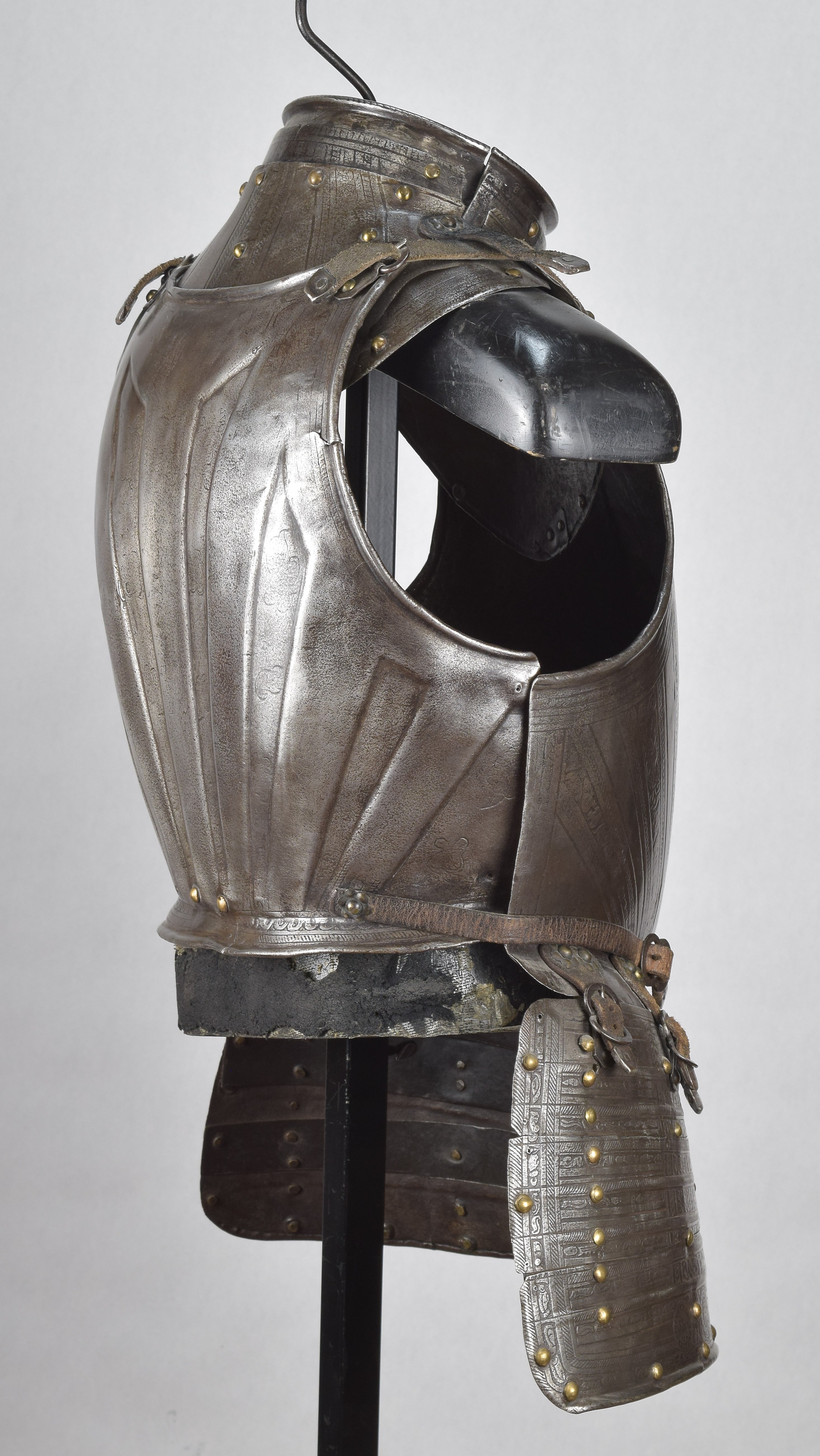

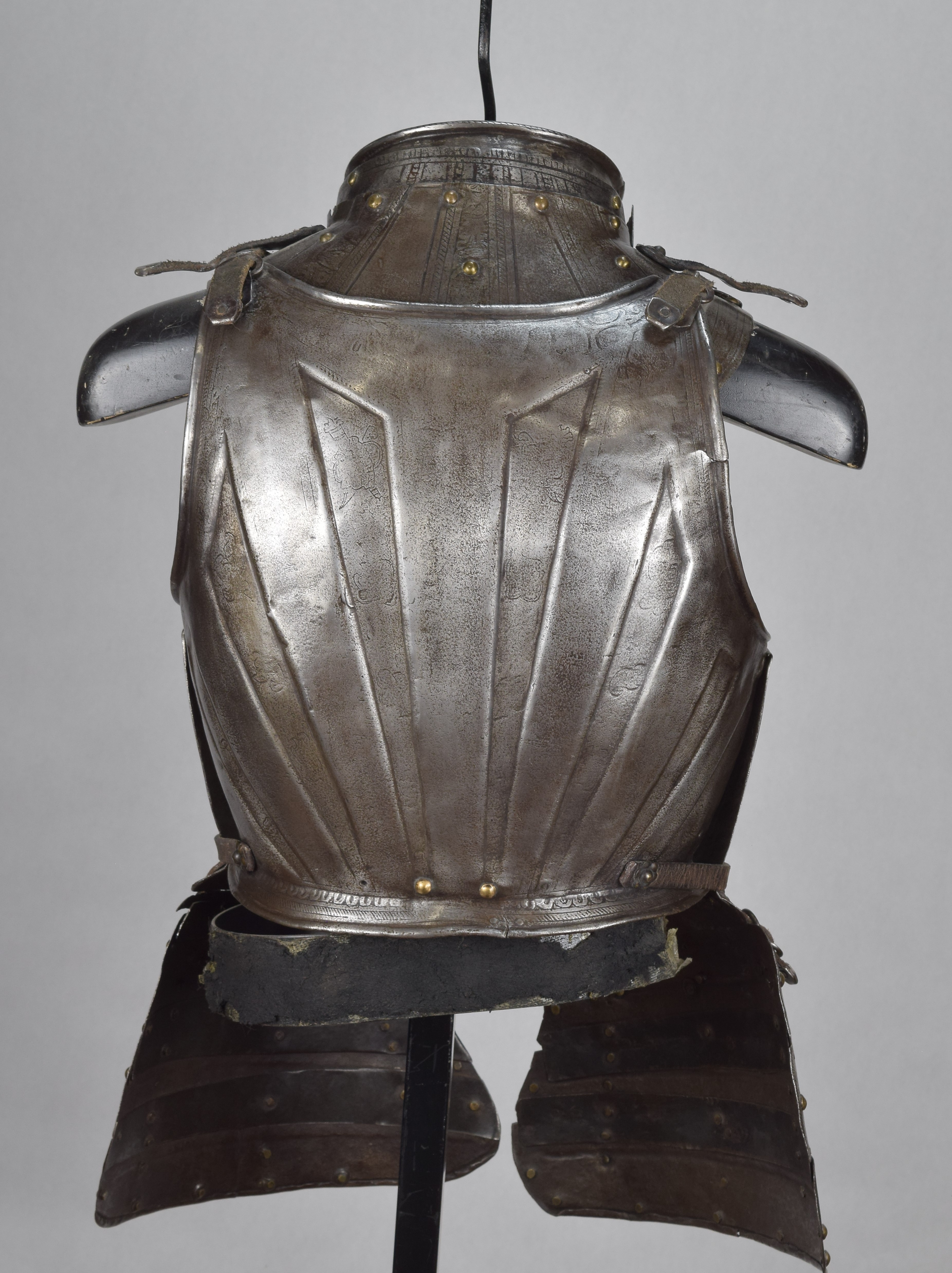

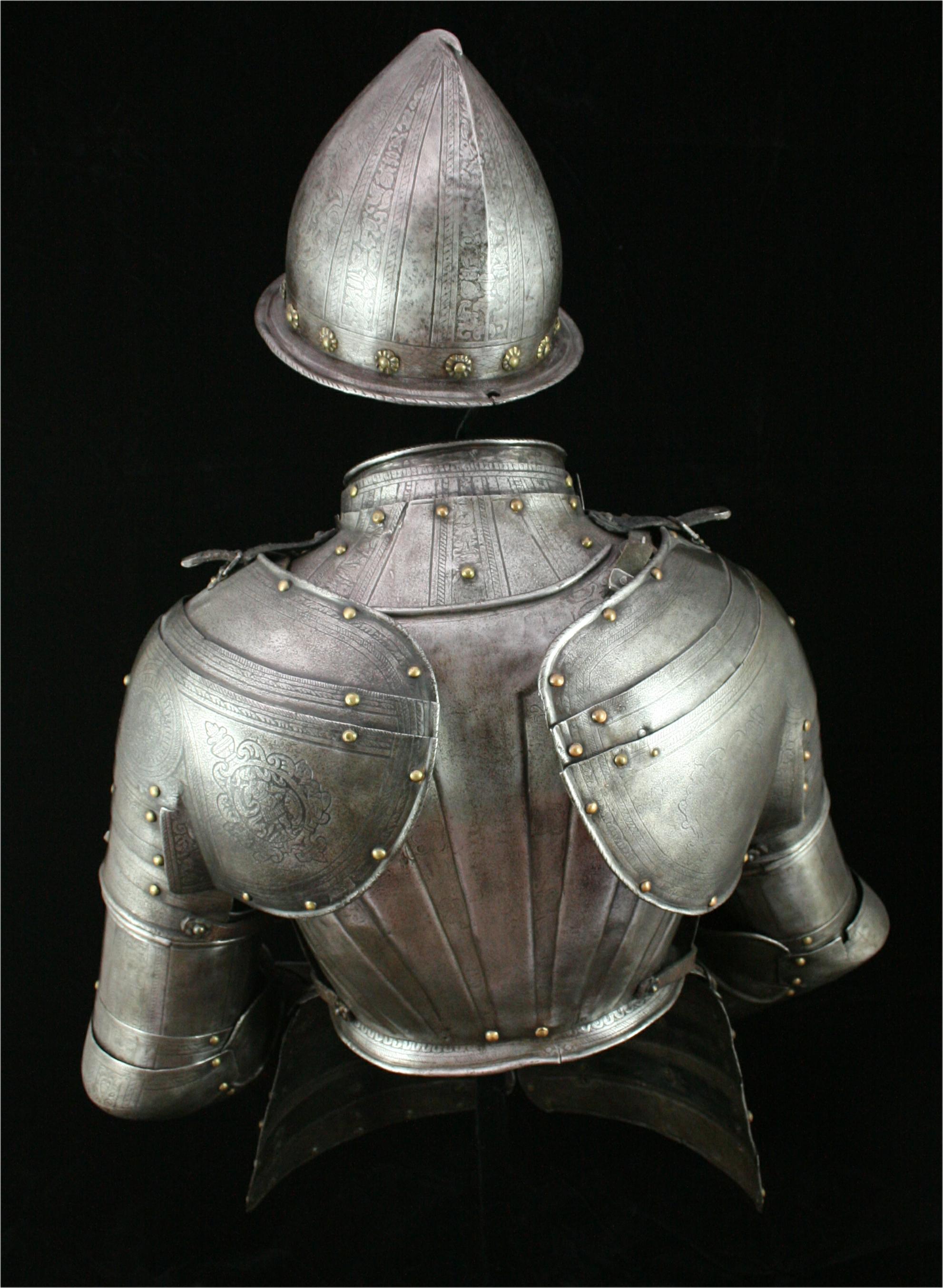

Backplate: Typical overall form. Made of one plate with integral flare at the waist, inward turned rolls at the neck and arms. The surface with raised bands at the neck and arms extending down in sevem bands to the waist. The bands and recesses etched.

Pauldron and arm: Etched in the 'Pisan' fashion. Separate pauldron and arm. for the right arm. Pauldrons of 7 lames, 2 above and 4 below the large main plate (similar form and etching, but the right pauldron somewhat larger) The uper plates of the right pauldron are currently secured to the main plate by a rivet at the front and the back. Holes on the plates indicate that the second plate was originally secured to the main plate with a rivet at the back and leathers at the front and center. Outer edge of the main plates with inward turned and roped border. Bottom edge of the bottom lame turned n the same manner. Rectangular hole in the center of the bottom plate to engage a turning pin in the arm harness. Strap and buckle on the inside of the bottom lame to secure it to the pauldron. Arms formed of a tubular upper cannon with rotating collar, lower cannon of inner and outer plates attached by pairs of hinges at the back and a pin on the inner plate engaging a hole in the outer plate at the front, elbows of bracelet form joined at the back with rolled edges on the wing attached to the uper and lower cannons by one articulating lame.

Pauldron and arm: Etched in the 'Pisan' fashion. Separate pauldron and arm. for the left arm. Pauldrons of 7 lames, 2 above and 4 below the large main plate (similar form and etching, but the right pauldron somewhat larger). Outer edge of the main plates with inward turned and roped border. Bottom edge of the bottom lame turned in the same manner. Rectangular hole in the center of the bottom plate to engage a turning pin in the arm harness. Strap and buckle on the inside of the bottom lame to secure it to the pauldron. Arms formed of a tubular upper cannon with rotating collar, lower cannon of inner and outer plates attached by pairs of hinges at the back and a pin on the inner plate engaging a hole in the outer plate at the front, elbows of bracelet form joined at the back with rolled edges on the wing attached to the uper and lower cannons by one articulating lame.

Tassets: Etched in the 'Pisan' fashion. Originally formed of one plate each with simulated separate lames. Three figure-8 steel buckles at the top of each tasset. These engage straps secured to the flare at the bottom of the breastplate. The tassets with lines of copper alloy rivets mimicing those that would be present on multi-plate tassets.

Gauntlets: Etched in the 'Pisan' fashion. One piece cuffs with overlapped join at the wrist. Metacarpal formed of 4 plates. Knuckle plate formed to simulate knuckles and etched to simulate a roped ridge. Interior of the metacarpal plates marked with single notch assembly marks on the front edge. Rivets replaced. Small patch to the thumb side of the second plate from the knuckle. Single rivet filling a hole in the edge of the cuff next to the metacarpal which would have originally secured the thumb defense.

Decoration not an exact match on the pieces (except the backplate), but of very similar form. The surface overall rusted and cleaned on all parts except the helmet. Much etching remains. Leathers and most rivets replaced. The tassets incorrectly cut apart and re-assembled. The 5 hand lames of the left gauntlet and the top plate of the left tasset replaced. The low, shallow form of the breastplate and the rounded form of the pauldrons indicate a very early 17th c. date for these pieces. The cabasset and one piece tassets would be typical of this later date as well. Includes item number A-102-a, item number A-102-b, item number A-102-c, item number A-102-d, item number A-102-e, item number A-102-f, item number A-102-g, item number A-102-h.
